Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Electric High Resistance Heater Radiant Tube For Heating Furnace
Specifications
Brand Name :
Eternal Bliss
Model Number :
EB1347
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
4 pieces
Price :
USD15~20/kg
Payment Terms :
by T/T or L/C, Western Union
Supply Ability :
5000 tons per year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Material :
Heat-resistant steel
Material Grade :
2.4879
Dimensions :
As per drawing
Quality Control :
UT,MT,RT,PT,Chemical Analysis Report, Mechanical Property Test,etc
Type :
U Type, W Type
Working Temperature :
Up to 1300℃
Cast Process :
Wax Lost Process
Description

Electric High Resistance Heater Radiant Tube for Heating Furnace Made In China

Electric High Resistance Heater Radiant Tube For Heating Furnace

Radiant Tube

Radiant tubes are available in different forms, 'U' tube, 'W' tube,single linear tubes, double linear tubes, continuous tube systems, etc., in a wide range of outputs, each to suit particular applications.

The radiant heater warms all solid objects and surfaces in its path. They are mounted overhead and produce infra red radiant heat that is directed downward by a reflector.

Types: W-Type Radiant Tube; U-type Radiant Tube, I-type Radiant Tube and Electrical Radiant Tube

Size: OD50 to OD1500mm

Melting Methods: Electric Arc Furnaces, Induction Furnaces & Vacuum Furnaces

Production Process: Centrifugal Cast Process, Investment Cast Process, Welding Process.

Quality Control: UT,MT,RT,PT,Chemical Analysis Report, Mechanical Property Test,etc.

Heat Treatment Process: Normalizing,Quenching,Tempering,Annealing.

Surface Treatment: shot blasting,painting,plating,polishing,black oxide,transparent anti-rust oil.

Inspection: in-house inspection, third party inspection.

Standards: ANSI,ASTM,ASME,API,JIS,DIN,BS,EN,KS,UNI,SABS,GOST.

Certificates:

1. Chemical Analysis Report

2. Heat-treatment Sheet Report

3. Dimension Size Report

4. DP Test Report

Packing: Seaworthy plywood package on stell pallets or as customer's request

Competitive Advantage: Quality control and management for the whole production process, including ingot smelting,casting, heat treatment, machining and strictly final inspection prior to delivery.

Application: Our radiant tube heaters are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,electric power, thermal-mechanical processing,aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,food machinery, pharmaceutical machinery, power engineering industry, and residential appliances.

Material Grade: High nickel and high chrome heat resistant alloys, cobalt base alloys, like HU, HT, HK, HP, HW, 24/24NbTiZr, 50Cr/50Ni (2.4813), 1.4865, 1.4849, 1.4848, 1.4410, 1.4059, 1.4841, 1.4845, 1.4852, 2.4879 or as per customers’ requirements.

Composition

(%)

 C Si Mn Cr Ni S P

1.4823

GX40CrNiSi27-4

 0.35~0.50 1.0~2.5 ≦1.50 25.0-28.0 3.5-5.5 ≦0.03 ≦ 0.035

1.4825

GX25CrNiSi18-9

 0.15-0.30 1.0~2.5 ≦1.50 17.0-19.0 8.0-10.0 ≦0.03 ≦ 0.035

1.4826

GX40CrNiSi22-9

 0.30-0.50 1.0~2.5 ≦1.50 21.0-23.0 9.0-11.0 ≦0.03 ≦ 0.035

1.4832

GX25CrNiSi20-14

 0.15-0.30 1.0~2.5 ≦1.50 19.0-21.0 13.0-15.0 ≦0.03 ≦ 0.035

1.4837

GX40CrNiSi25-12

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 11.0-14.0 ≦0.03 ≦ 0.035

1.4848

GX40CrNiSi25-20

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 19.0-21.0 ≦0.03 ≦ 0.035

1.4865

GX40CrNiSi38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4857

GX40CrNiSi35-25

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 34.0-36.0 ≦0.03 ≦ 0.035

1.4855

GX30CrNiSiNb24-24

 0.30-0.40 0.5-2.0 ≦1.50 23.0-25.0 23.0-25.0 ≦0.03 ≦ 0.035

1.4849

GX40CrNiSiNb38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4852

GX40CrNiSiNb35-25

 0.35-0.45 1.0~2.5 ≦1.50 24.0-26.0 33.0-35.0 ≦0.03 ≦ 0.035
G-CoCr28 0.10-0.20 1.0~2.5 ≦1.50 27.0-30.0 - ≦0.03 ≦ 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 ≦1.50 27.0-30.0 47.0-50.0 ≦0.03 ≦ 0.035

Composition

(%)

 C Si

Mn

Max.

 Cr Ni

S

Max.

P

Max.

1.4823

GX40CrNiSi27-4

 0.35~0.50 1.0~2.5 1.50 25.0-28.0 3.5-5.5 0.03 0.035

1.4825

GX25CrNiSi18-9

 0.15-0.30 1.0~2.5 1.50 17.0-19.0 8.0-10.0 0.03 0.035

1.4826

GX40CrNiSi22-9

 0.30-0.50 1.0~2.5 1.50 21.0-23.0 9.0-11.0 0.03 0.035

1.4832

GX25CrNiSi20-14

 0.15-0.30 1.0~2.5 1.50 19.0-21.0 13.0-15.0 0.03 0.035

1.4837

GX40CrNiSi25-12

 0.30-0.50 1.0~2.5 1.50 24.0-26.0 11.0-14.0 0.03 0.035

1.4848

GX40CrNiSi25-20

 0.30-0.50 1.0~2.5 1.50 24.0-26.0 19.0-21.0 0.03 0.035

1.4865

GX40CrNiSi38-18

 0.30-0.50 1.0~2.5 1.50 17.0-19.0 36.0-39.0 0.03 0.035

1.4857

GX40CrNiSi35-25

 0.30-0.50 1.0~2.5 1.50 24.0-26.0 34.0-36.0 0.03 0.035

1.4855

GX30CrNiSiNb24-24

 0.30-0.40 0.5-2.0 1.50 23.0-25.0 23.0-25.0 0.03 0.035

1.4849

GX40CrNiSiNb38-18

 0.30-0.50 1.0~2.5 1.50 17.0-19.0 36.0-39.0 0.03 0.035

1.4852

GX40CrNiSiNb35-25

 0.35-0.45 1.0~2.5 1.50 24.0-26.0 33.0-35.0 0.03 0.035
G-CoCr28 0.10-0.20 1.0~2.5 1.50 27.0-30.0 - 0.03 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 1.50 27.0-30.0 47.0-50.0 0.03 0.035

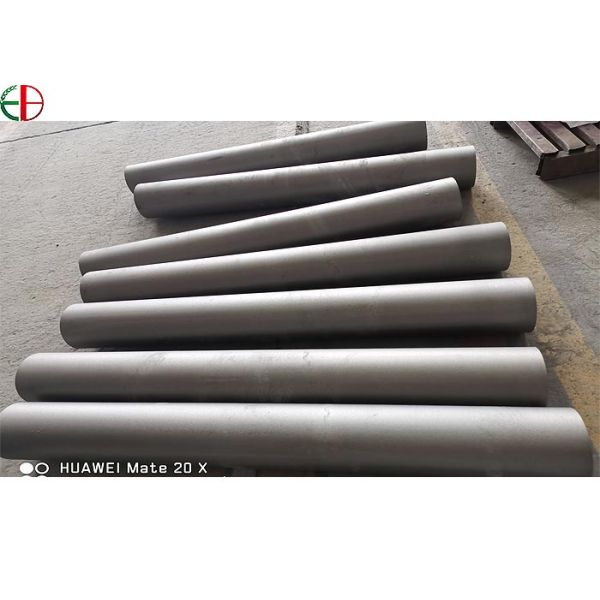

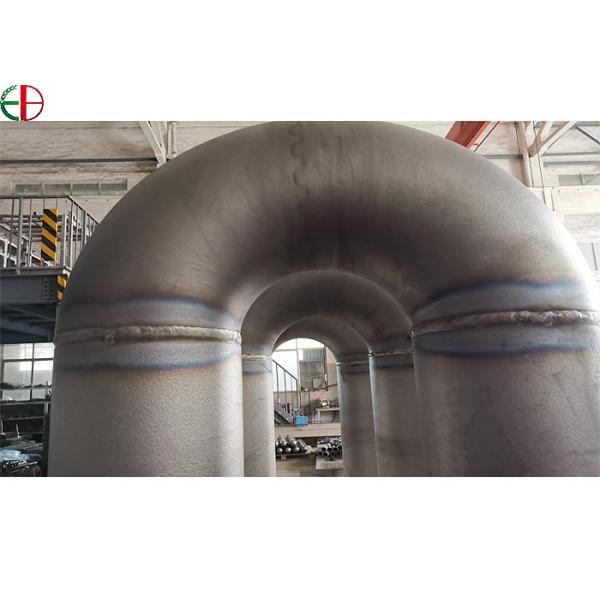

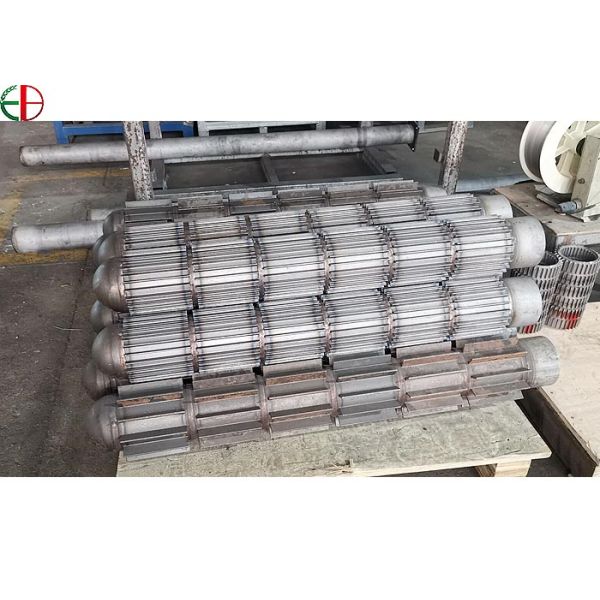

Product Picture:

Electric High Resistance Heater Radiant Tube For Heating FurnaceElectric High Resistance Heater Radiant Tube For Heating FurnaceElectric High Resistance Heater Radiant Tube For Heating Furnace
