Specifications
Brand Name :
EB
Model Number :
EB5032
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
1 piece
Price :
USD2.1~2.5/kg
Payment Terms :
by T/T or L/C
Supply Ability :
10000 tons per year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Material Grade :
AS2074 L2A/L2B/L2C
Cast Process :
Sand Cast
Material :
Cr-Mo Alloy
Dimensions :
Drawing
Hardness :
≥HRC50
Process :
Sand Cast Process
Description

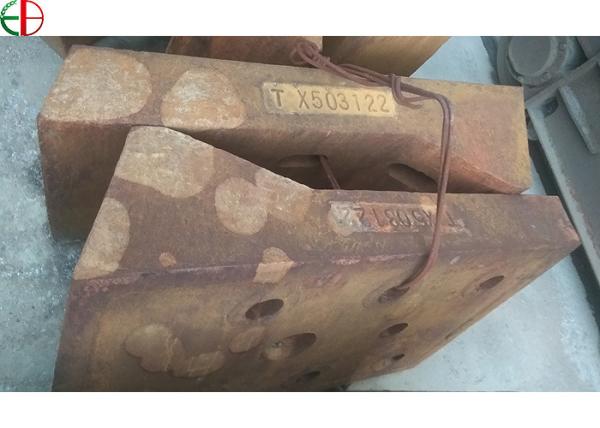

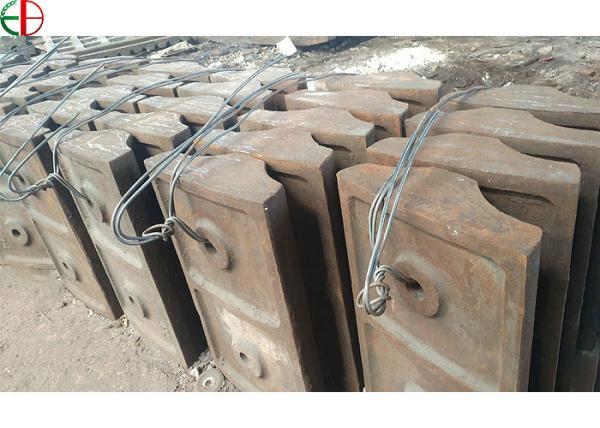

AS2074 L2B SAG Mill Liners,SAG Mill Pulp Lifter Liners,Cr-Mo Alloy SAG Mill Liners EB5032

AS2074 L2B SAG Mill Pulp Lifter Liners Cr - Mo Alloy EB5032 Long Life EB5032

1. Material:Cr-Mo Alloy Steel

2. Material Grade:AS 2074 L2A/L2B/L2C


3. Dimensions:as per drawings

4. Application:SAG Mill

4. Special Features:

4-1. The material of SAG mill liners are low C or high C Cr-Mo Alloy steel,which depends on the

specific working condition of the SAG mill.

4-2. The hardness of AS2074 L2B is HB310-HB380.

4-3. We can make big size SAG mill liner castings with Sodium Silicate Sand Process & Resin Sand

Process.

4-4. We can supply alloy steel SAG mill liner castings with proper heat-treatment process.

4-5. We can produce Cr-Mo alloy steel SAG Mill castings as per AS2074 L2B, L2C, GB/T

26651-2011.

4-6. Metallographic structure of AS2074 L2B/L2C Steel is Pearlitic.

5. Chemical Composition:

Material Grade C Si Mn P S Cr Mo
AS2074 L2B 0.55-0.65 <0.75 0.50-1.00 <0.06 <0.06 0.80-1.50 0.20-0.40
AS 2074 L2C 0.70-0.90 <0.75 0.50-1.20 <0.06 <0.06 1.30-2.40 0.20-0.40
AS2074 L2B SAG Mill Pulp Lifter Liners Cr - Mo Alloy EB5032 Long Life EB5032
AS2074 L2B SAG Mill Pulp Lifter Liners Cr - Mo Alloy EB5032 Long Life EB5032

AS2074 L2B SAG Mill Pulp Lifter Liners Cr - Mo Alloy EB5032 Long Life EB5032
