Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
Specifications
Brand Name :
Eternal Bliss
Model Number :
EB1348
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
4 pieces
Price :
USD15~20/kg
Payment Terms :
by T/T or L/C, Western Union
Supply Ability :
5000 tons per year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Material :
Heat-resistant steel
Material Grade :
2.4879
Dimensions :
As per drawing
Quality Control :
UT,MT,RT,PT,Chemical Analysis Report, Mechanical Property Test,etc
Type :
U Type, W Type
Working Temperature :
Up to 1300℃
Cast Process :
Wax Lost Process
Description

Metallurgical Industry Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller

Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller

Furnace Rollers:


EB furnace rollers made from different materials,such as stainless steel,Ni-Cr Iron base heat-resistant steel,for heat treatment
furnaces with service temperature up to 1600℃(2912°F).
EB’s furnace rollers are made for different heat treatment processes for steel, aluminium,Zinc Alloy and other metallic
materials,which have been widely used in the following applications:
Quenching furnaces
Annealing furnaces
Carburizing furnaces
Galvanizing furnaces
Sintering furnaces
Hardening furnaces
Outstanding Features:
1. Resistance to high temperature: Up to 1600℃;
2.Resistance to deformation in carburizing,nitriding,neutral and oxidizing atmospheres
3.Maximizing heat flux
4.Shortening the process time
5.Longer service life and better installation effects because of more scientific process design
6.Production Process: centrifugal cast process + investment cast process + machining process + welding process
7.We can make the furnace rollers as per customer design.
8.Diameter: 50mm - 1600mm; Length: less than 3m

Composition

(%)

 C Si Mn Cr Ni S P

1.4823

GX40CrNiSi27-4

 0.35~0.50 1.0~2.5 ≦1.50 25.0-28.0 3.5-5.5 ≦0.03 ≦ 0.035

1.4825

GX25CrNiSi18-9

 0.15-0.30 1.0~2.5 ≦1.50 17.0-19.0 8.0-10.0 ≦0.03 ≦ 0.035

1.4826

GX40CrNiSi22-9

 0.30-0.50 1.0~2.5 ≦1.50 21.0-23.0 9.0-11.0 ≦0.03 ≦ 0.035

1.4832

GX25CrNiSi20-14

 0.15-0.30 1.0~2.5 ≦1.50 19.0-21.0 13.0-15.0 ≦0.03 ≦ 0.035

1.4837

GX40CrNiSi25-12

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 11.0-14.0 ≦0.03 ≦ 0.035

1.4848

GX40CrNiSi25-20

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 19.0-21.0 ≦0.03 ≦ 0.035

1.4865

GX40CrNiSi38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4857

GX40CrNiSi35-25

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 34.0-36.0 ≦0.03 ≦ 0.035

1.4855

GX30CrNiSiNb24-24

 0.30-0.40 0.5-2.0 ≦1.50 23.0-25.0 23.0-25.0 ≦0.03 ≦ 0.035

1.4849

GX40CrNiSiNb38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4852

GX40CrNiSiNb35-25

 0.35-0.45 1.0~2.5 ≦1.50 24.0-26.0 33.0-35.0 ≦0.03 ≦ 0.035
G-CoCr28 0.10-0.20 1.0~2.5 ≦1.50 27.0-30.0 - ≦0.03 ≦ 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 ≦1.50 27.0-30.0 47.0-50.0 ≦0.03 ≦ 0.035

Composition

(%)

 C Si

Mn

Max.

 Cr Ni

S

Max.

P

Max.

1.4823

GX40CrNiSi27-4

 0.35~0.50 1.0~2.5 1.50 25.0-28.0 3.5-5.5 0.03 0.035

1.4825

GX25CrNiSi18-9

 0.15-0.30 1.0~2.5 1.50 17.0-19.0 8.0-10.0 0.03 0.035

1.4826

GX40CrNiSi22-9

 0.30-0.50 1.0~2.5 1.50 21.0-23.0 9.0-11.0 0.03 0.035

1.4832

GX25CrNiSi20-14

 0.15-0.30 1.0~2.5 1.50 19.0-21.0 13.0-15.0 0.03 0.035

1.4837

GX40CrNiSi25-12

 0.30-0.50 1.0~2.5 1.50 24.0-26.0 11.0-14.0 0.03 0.035

1.4848

GX40CrNiSi25-20

 0.30-0.50 1.0~2.5 1.50 24.0-26.0 19.0-21.0 0.03 0.035

1.4865

GX40CrNiSi38-18

 0.30-0.50 1.0~2.5 1.50 17.0-19.0 36.0-39.0 0.03 0.035

1.4857

GX40CrNiSi35-25

 0.30-0.50 1.0~2.5 1.50 24.0-26.0 34.0-36.0 0.03 0.035

1.4855

GX30CrNiSiNb24-24

 0.30-0.40 0.5-2.0 1.50 23.0-25.0 23.0-25.0 0.03 0.035

1.4849

GX40CrNiSiNb38-18

 0.30-0.50 1.0~2.5 1.50 17.0-19.0 36.0-39.0 0.03 0.035

1.4852

GX40CrNiSiNb35-25

 0.35-0.45 1.0~2.5 1.50 24.0-26.0 33.0-35.0 0.03 0.035
G-CoCr28 0.10-0.20 1.0~2.5 1.50 27.0-30.0 - 0.03 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 1.50 27.0-30.0 47.0-50.0 0.03 0.035

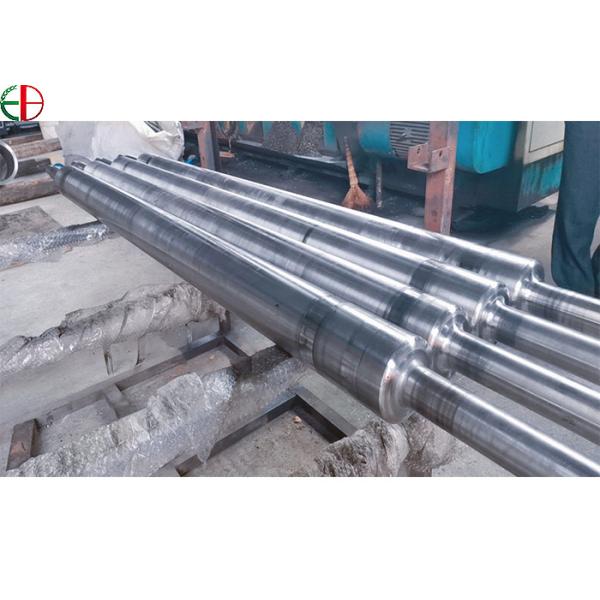

Product Picture:

Metallurgical Steel Mills Centrifugal Cast Heat Resistant Furnace Hearth Roller
