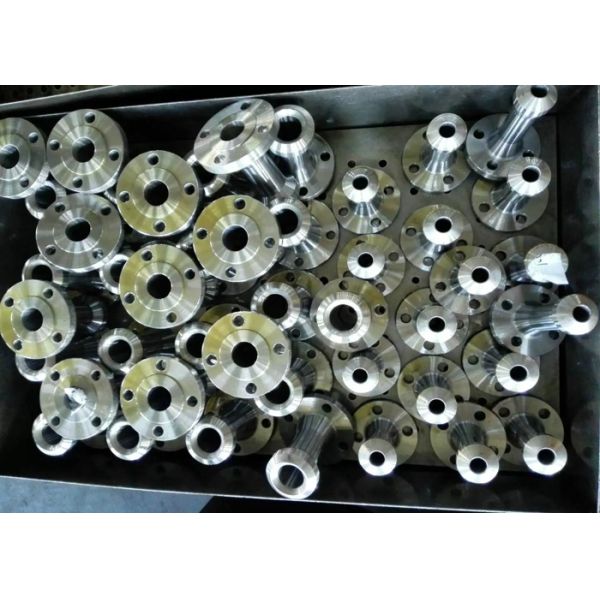

Nickel Alloy Flanges UNS N10003 Forged Weld Neck Flange ANSI B16.5 SCH10S 300# For Oil/Gass
Nickel Alloy Flanges UNS N10003 Forged Weld Neck Flange ANSI B16.5 SCH10S 300# For Oil/Gass
Nickel Alloy Flanges UNS N10003 Forged Weld Neck Flange ANSI B16.5 SCH10S 300# For Oil/Gass
Nickel Alloy Flanges UNS N10003 Forged Weld Neck Flange ANSI B16.5 SCH10S 300# For Oil/Gass
Specifications
Brand Name :
Metal
Model Number :
Alloy
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 PC Per Month
Delivery Time :
15 Working days
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Product Name :
Nipo Flange
Material :
Alloy
Standard :
ASME
Type :
Weld Neck Flange
Technique :
Forged
Section shape :
Round
Description

Nickel Alloy Flanges UNS N10003 Forged Weld Neck Flange ANSI B16.5 SCH10S 300# For Oil/Gass

Specifications

Grades: Alloy N

Standards: ASTM. ASME ANSI B16.9. B16.28. MSS-SP-43.

Specifications: ASTM B366 / ASME SB366

Size: 1/2'' NB TO 12'' NB IN

Schedule: Sch5 TO Sch XXS

Wall Thickness: From 2 to 40 mm

Type: Seamless / Welded / Fabricated

ASME/ANSI B16.5 stainless steel RF nipo-flange

Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.

A Nipoflange is a combination of weldolet, nipolet and flange.

Two different pipe branch connectionsOn the run pipe side a nipoflange is designed like a weldolet.

That means the branch connection on the run pipe side is a welding connection. On the other side there

it has a flange connection. The flange connection can be designed according to customers requirements

(acc. To DIN or ANSI).

Product Name NIPOFLANGE
Size 1/2’’~10’’(Seamless);12’’~72’’(Welded)
Thickness Sch5S~Sch160XXS
Manufacture Standard:

ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90,

GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
Duplex steel

UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600,

UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974
UNS S32205, UNS S41008, UNS S41500, UNS N44626, UNS S31803
Nickel alloy steel Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Chemical Properties

Grade C Si Mn P S Cr Mo Ni N
Alloy B-2 0.04-0.08 1.00 1.00 0.015 0.02 6.0-8.0 15.0-18.0 Bal Bal

Mechanical Properties

Density Melting Point
8.78 g/cm3 1300-1400℃

Application

As previously mentioned, the alloy is mainly used as a container material for molten fluoride salts.

MACHINABILITY

The alloy work hardens rapidly, generates high heat during cutting, welds to cutting tool surface and offers high resistance to metal removal because of its high shear strength.
Machines should be rigid and overpowered as much as possible
Workpieces and tools should be held rigid.
Tools must be sharp: carbide tipped should be used for most applications but high-speed steel tools may be used for short production runs.
Heavy, constant feeds should be used.

WELDABILITY

This alloy may be welded by the gas-metal-arc, gas-tungsten-arc and shielded-metal-arc processes. Parts may normally be used in the as-welded condition, but a post-weld anneal will result in optimum corrosion resistance.
