Specifications
Brand Name :
TOBO
Model Number :
P-2205
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1
Price :
USD Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
25 work days
Packaging Details :
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Material :
Alloy
Size :
1''-60''
High light :
2205 1.4462 UNS S32205 / S31803 Seamless Industrial Duplex Stainless Steel Pipe
Description

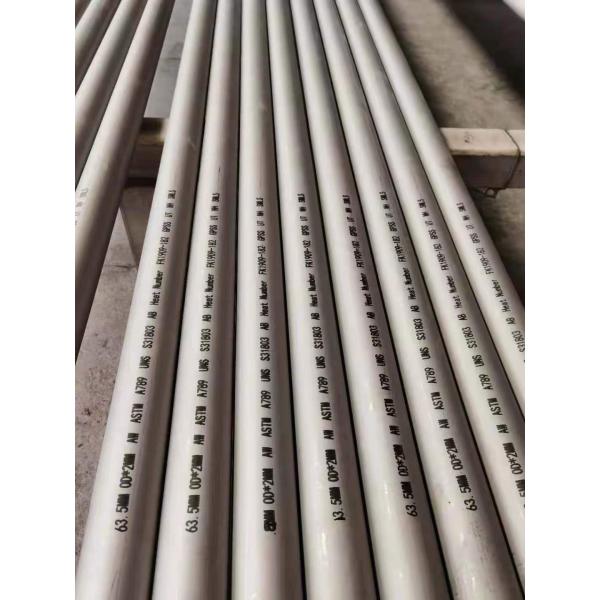

ASTM 2205 UNS S31803 Seamless Super Duplex Steel Pipes

ASTM 2205 UNS S31803 Seamless Super Duplex Steel Pipes

Products Details

Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It also demonstrates good fatigue strength, as well as outstanding resistance to stress corrosion cracking, crevice, pitting, erosion, and general corrosion in severe environments.

Chemical Properties

C Mn Si P S Cr Mo Ni N
2205
(S31803)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 21.0
max: 23.0
min: 2.5
max: 3.5
min: 4.5
max: 6.5
min: 0.08
max: 0.20
2205
(S32205)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 22.0
max: 23.0
min: 3.0
max: 3.5
min: 4.5
max: 6.5
min: 0.14
max: 0.20


Mechanical Properties

Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % ​Hardness (HB) MAX
2205 90 65 25 217

Corrosion Resitance
1. Due to its high chromium, molybdenum, and nitrogen content, Duplex 2205 demonstrates superior corrosion resistant properties to 316 and 316L in most environments
2. Chromium, molybdenum, and nitrogen content also provide high resistance to pitting and crevice corrosion, even in oxidizing and acidic solutions
3.Resistant to chloride stress corrosion cracking and temperatures of up to about 302°F (150°C)
4. The presence of ferrite provides for good performance of Duplex 2205 in caustic environments

Heat Resitance
1.Similar to other duplex stainless steels, Duplex 2205 has good oxidation resistance at high temperatures
2. Subject to embrittlement when exposed to temperatures above 572°F (300°C) even when exposed for short periods of time; Duplex 2205 is therefore not recommended for use above 572°F (300°C)

What can we do for you ?

>> 1.Are you a factory or a trading company?

1.We are a factory focused on rigging hardware over 22 years.

2.Our main products are shackles,eye bolts and nuts. turnbuckles, wire rope clips, hooks and load binders.

3.We have 6 production lines with advanced machines over 30 like friction presses, air hammer, punching machines,etc.

4.We own warehouse over 3000 square meters.

5.We have numerous distributors at home and board.

>> 2.How do you control your quality?

1.Selection of high-quality steel material from famous steel group

2.Production process standardization, process standardization, refinement.

3.100% Finished Product Testing.

4.The third party product inspections are acceptable.

5.ISO Quality Management System Certificated Factory

6.Inspection before loading

>> 3.What are your advantages compared with others?

1.BV, SGS Field Certification and Assessed Factory

2.Focused on rigging since 1997, Rich experience in Production.

3.Owned factory, the same quality product, the best price.

4.Timely Delivery with the support of 3000 square meters warehouse.

5.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.

6.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.

>> 4.Can you offer samples ?

Yes, free samples are available, but freight charged by customer

>> 5.How about your quality guarantee?

We’re 100% responsible for damage of full container goods if it’s caused by our improper package.

We have very strict QC team to control the quality problem.

From material to finished products, each step, our inspection man to inspect it.For each order, we will test and have the record.

>> 6.Why choose us?

1). More than 20 year's manufacturing experience

2). OEM/ODM service offered • Small order accepted

3). Direct factory price • More competitive

4). High Quality • Zero Complaint
