Hastelloy C - 276 Paddle Blind Flange , ASME B16 5 Steel Pipes And Fittings
Hastelloy C - 276 Paddle Blind Flange , ASME B16 5 Steel Pipes And Fittings
Hastelloy C - 276 Paddle Blind Flange , ASME B16 5 Steel Pipes And Fittings
Hastelloy C - 276 Paddle Blind Flange , ASME B16 5 Steel Pipes And Fittings
Specifications
Brand Name :
Metal
Model Number :
Hastelloy C-276
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
1000 PCS PER MONTH
Delivery Time :
15 Work days
Packaging Details :
In wooden case, pallets or as per customers' requirement
Product Name :
Spade Line Blinds Flange
Material :
Hastelloy C-276
Standard :
ASME B16.5
Application :
Petrochemicals
Test Certificates :
EN 10204/3.1B
Material Grade :
ASTM B564
OD :
6''
Pressure :
150LB
Description

Hastelloy C-276 Nickel Alloy Pipe Flange Spade Line Blinds Flange ASME B16.5​

Quick Specifications

  1. Spade Line Blinds Flange
  2. Size: 1/2’’—60’’
  3. CL 150-CL 2500
  4. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
  5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform

Product Description

Product Name Spade Line Blinds Flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Special Flange: According to the drawing Picture
Materials

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages

1. Abundant stock and prompt delivery

2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.

4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.)

Nickel Alloy Flanges Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Material Grade

Trade Name ASTM Pipe Pipe Fittings UNS Forging & Flanges
Monel@ 400 B165 B366 WPNC N04400 B564 N04400
Inconel@ 600 B167 B366 WPNCI N06600 B564 N06600
Inconel@ 625 B444 B366 WPNCMC N06625 B564 N06625
Incoloy@ 800 B163 B366 WPNIC N08800 B564 N08800
Incoloy@ 800H B407 B366 WPNIC10 N08810 B564 N08810
Incoloy@ 800HT B407 B366 WPNIC11 N08811 B564 N08811
Incoloy@ 825 B423 B366 WPNICMC N08825 B564 N08825
Hastelloy@ B2 B619/622 B366 WPHB-2 N10665 B564 N10665
Hastelloy@ C276 B619/622 B366 WPHC276 N10276 B564 N10276
Hastelloy@ C22 B619/622 B366 WPHC22 N06022 B564 N06022
Carpenter 20Cb-3@ B729 B366 WP20Cb N08820 B462 N08820
SANICRO 28@ B668 N08028

This alloy has the following characteristics:

1. Good resistance to stress corrosion cracking

2. Good resistance to point corrosion and gap corrosion

3. Good antioxidant and non-oxidizing thermal acid properties

4. Good mechanical properties at room temperature and at temperatures up to 550 ℃

5. Certification of pressure vessels with manufacturing temperatures up to 450 ℃

ASTM, ASME Nickel Alloy Flanges Value Added Services

Material Testing:


We at Ganpat Industrial Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test

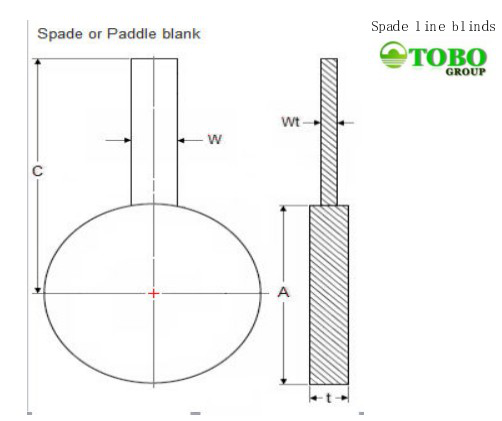

Drawing:

Hastelloy C - 276 Paddle Blind Flange , ASME B16 5 Steel Pipes And Fittings
