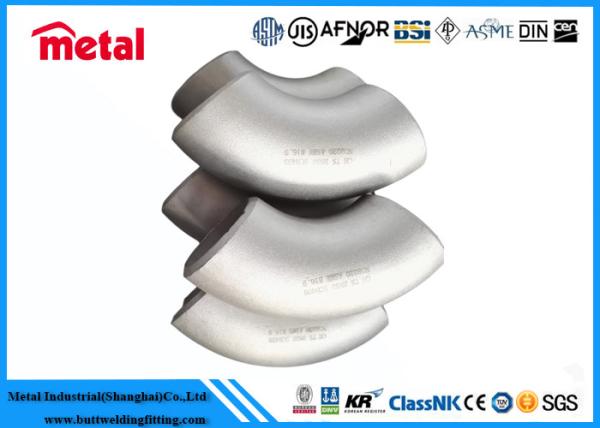

Nickel Alloy Steel Pipe Fittings Seamless Elbow DN100 SCH40 Alloy K-500
Nickel Alloy Steel Pipe Fittings Seamless Elbow DN100 SCH40 Alloy K-500
Nickel Alloy Steel Pipe Fittings Seamless Elbow DN100 SCH40 Alloy K-500
Nickel Alloy Steel Pipe Fittings Seamless Elbow DN100 SCH40 Alloy K-500
Specifications
Brand Name :
Metal
Model Number :
Alloy K-500
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 PC Per Month
Delivery Time :
15 Working days
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Product Name :
90° Seamless Elbow
Material :
Alloy K-500
Standard :
ASME B 16.9
Type :
LR
Technic :
Seamless
Thickness :
SCH40
Outer Diameter :
DN100
Application :
Connection
Description

Nickel Alloy Pipe Fittings Seamless Elbow DN100 SCH40 Alloy K-500

Buttweld Elbow Fitting

The Buttweld Elbow Fitting is a pipe fitting installed between two lengths of pipe or tube allowing a change of direction, usually 180°, 90° or 45°. The ends are machined for Butt Welding when the two ends differ in size, it is called a Reducing or Reducer Elbow.

Most elbows are available in short radius or long radius of types. The short radius elbows have a center to end distance equal to the NPS in inches, while the long radius is 1.5 times the NPS in inches.

Product Name 90 ° Seamless Elbow
Size 1/2’’~10’’(Seamless);12’’~72’’(Welded)
Thickness Sch5S~Sch160XXS
Manufacture Standard:

ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90,

GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
Nickel alloy steel Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;

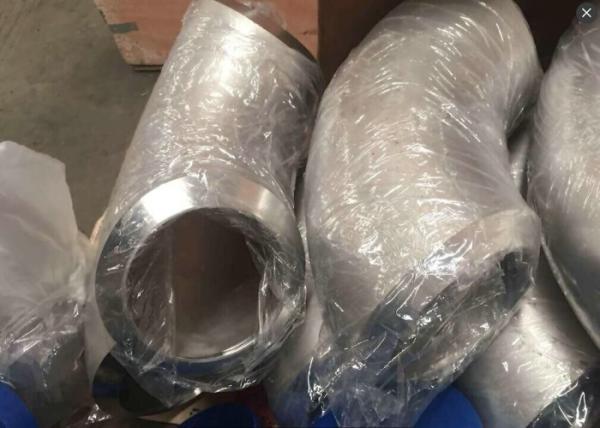

Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Elbows:
We offer Bend and Elbow in stainless steel, carbon steel and alloy steel material. These fittings are also available in monel, nickle, inconel, hastalloy, copper, brass, titanium material to meet the requirements of clients. Our range is designed in line with international quality standard and is widely used in different applications across industries.
Form : Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Size : 1/8" NB to 48" NB (Seamless & Welded)
Wall thickness : Sch.5S to Sch: XXS.

STANDARDS:

ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings

ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings

ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service

ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns 　 　 　

ASME B16.25 - Buttwelding Ends

MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Our advangtage

1) Raw material use 100% material steel

2) Good service

3) Competive price

4) Fast delivery

5)High quality products

Nickel Alloy Steel Pipe Fittings Seamless Elbow DN100 SCH40 Alloy K-500
