ASTM A 179 carbon steel finned tube for cooler or dryer or heat exchanger parts

SEAMLESS FINNED TUBE


Carbon Steel Seamless Pipe Description

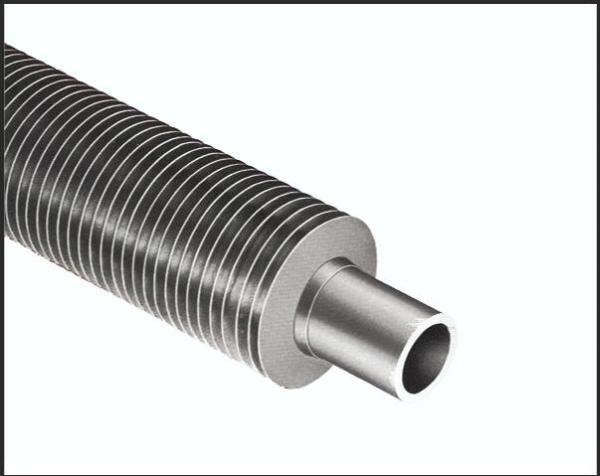

Product previw

Fin material aluminum, fin thickness 0.25mm~0.8mm, fin pitch 2.3mm~4.5mm, Fin type: Extruded, extruded serrated, any length, ISO9001 quality system certification, CE, used for large air-cooler, heat exchanger, dryer, with high heat transfer and energy conversetion. Good surface and sea worth packing.

Finned tubes:
1) Integral Low Finned Tubes
Increase surface area of tubes, Improves efficiency of heat exchangers and more compact size. Inner Fin, Outer Fin or both Inner and Outer Fin are available.
Tube Materials: Copper, Aluminum Brass, Copper Nickel and other Copper Alloy.
Fin Pitch: 19 to 26 Fin Per Inch.
2) Spiral Finned Tubes
We produced Spiral High Finned Tubes base tube material: Copper and Copper Alloy Tubes, Duplex Tubes and other alloy.
Tube Outside Diameter: from 10mm to 50mm
Fin Materials: Aluminum and Copper Mix. tubes.
Length: up to 15 meter.
Fin pitch: 7, 9, 10...13, 14 mm Fin Per Inch.
Fin height: 6mm to 12mm

Carbon steel/Aluminum finned tubes for the air cooler and heat exchange

The parameters and performance are as follows:
1: Technical parameters: The high degree of fin 0-16mm (or outside diameter of fin φ 38.1-φ77m); Pitch of fins 2.3-12mm; Length of finning tube 0.5~ 14m.
2: Single metal rolling finning tube: Pure aluminum 1060 or aluminum alloy 6063.
3: Double metal rolling finning tube: Tube-based protection from the outer layer of aluminum tubes, corrosion-resistant; Tube-based can be made from carbon steel pipe, in addition to, stainless steel tube and copper tube can also be used, as well as titanium alloy tube.

Package: The aluminum finned tubes are well packed in steel frame and polywood.

One Of Reference Drawing

FAQ

Q:Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
