Specifications
Brand Name :
Nicole
Model Number :
NT - Vacuum Freeze Dryer
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD17590-58390 / set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
20 - 35 working days according to exact model and quantity.
Packaging Details :
Standard Export Package or According to customers' requirement
Product name :
CE Certificated Plant Customized Food Fruit Flower Vacuum Freeze Dryer Machine Price
Warranty :
1 year
Voltage :
380V or customized
Material :
Stainless Steel
Application :
Dehydration
Heating Method :
Electric
Control Type :
PLC+ human-computer interface
Drying Area :
5-200m²
Description

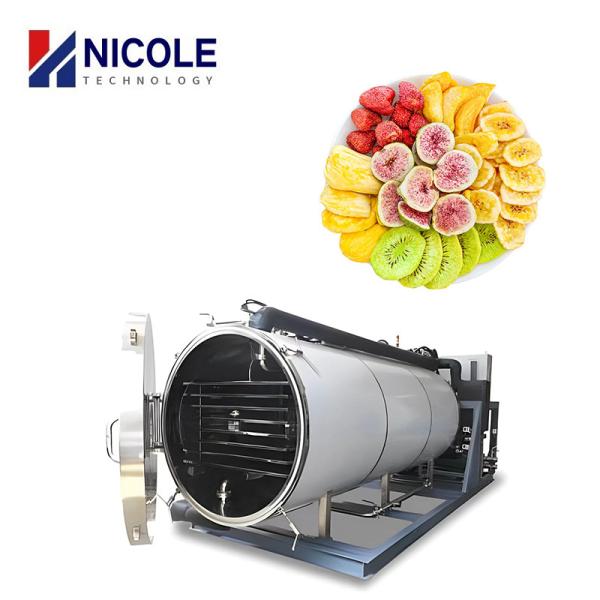

CE Certificated Plant Customized Food Fruit Flower Vacuum Freeze Dryer Machine Price

Working Principle


Vacuum freeze drying technology is an advanced method of material dehydration. Freezing the moisture material at low temperatures causes the water inside the product to sublimate directly under vacuum conditions. The sublimated water vapour is then collected by condensation and the material is dehydrated and dried. After the vacuum freeze drying process, the physical, chemical and biological state of the product remains essentially unchanged. After freeze-drying, the material forms a porous form, whose volume is essentially the same as before drying, and can be stored for a long time in an airtight container.

Product Features


 Economic design with high efficiency in energy consumption.

 Modular design, quick combination and installation, short machine production cycle.
 Highly integrated, clever structure, small footprint, more economical and practical.

Flow Chart


Product Advantages


1. Many heat-sensitive substances will not be denatured or inactivated.
2. Drying at low temperature, the loss of volatile components of some materials is very small.
3. During the freeze-drying process, the product can maintain its original characteristics under the action of microorganisms and enzymes.
4. It will dry 95%-99% of the moisture, and the dried product can be stored for a long time.
5. Since the material is in a frozen state and the temperature is very low, the temperature of the heat source required for heating is not high. Normal temperature or low temperature heaters can meet the requirements, and the utilization of heat energy is economical.

Technical Specifications:


Model NT-Y50M NT-Y100M NT-Y200M
Control Type PLC+ human-computer interface PLC+ human-computer interface PLC+ human-computer interface
Working Freeze Drying Freeze Drying Freeze Drying
Material 304 Stainless steel 304 Stainless steel 304 Stainless steel
Drying area (m²) 75 100 200
Loading capacity(kg) 500 1000 2000
External dimensions(m) dia.2.2 dia.2.5 dia.2.5
Shell thickness(mm) 8 10 10
Shelf temperature() 0~120 0~120 0~120
Shelf medium Pure water Pure water Pure water
Cold trap temperature() -50~-80 -50~-80 -50~-80
Vacuum pump Combined pump set Combined pump set Combined pump set
Working vacuum ≤130Pa ≤130Pa ≤130Pa
Defrosting mode Hot water spray Hot water spray Hot water spray
Cooling water consumption(m3/h) 6.5 13 25
Cold Trap Capability (kg/bin) >500 >1000 >2000
Power rating(kw) 30/90 60/180 120/360
Steam consumption(kg/h) (Pressure 0.6mpa) 150 300 600
Working Temperature ≤40 ≤40 ≤40
