Specifications
Brand Name :
OEM, ODM All Available
Certification :
CE,FC,RoHS
Place of Origin :
China
Type :
TD210 Thermal Imaging Night Vision
Size :
143mmX45mmX73mm
Weight :
360g
Magnification :
1.8-3.6x
Operating Voltage :
<5mV
IR Resolution :
256x192@12μm
Focal Length :
10mm/F1.0
FOV :
17.5°x13.1°
MOQ :
10
Delivery Time :
3~7
Payment Terms :
T/T. L/C, Western Union, Money Gram
Supply Ability :
30000PCS/Month
Description

New Arrival TD210 Infrared Monocular Thermal Imaging Night Vision

Product parameters

Detector Type
256×192@12μm, VOx
Focal Length
10mm/F1.0
FOV
17.5°×13.1°
Focusing
Electric Focusing
Screen
Full-Color LCOS Screen,1280×960
Eyepiece
Exit pupil distance 17 mm, Adjustable diopter -4~+2
Magnification
1.8X~3.6X
Frame Rate
25Hz
Picture-in-picture
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
Hotspot Tracking
WIFI/APP
Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission
Battery Type
Removable Standard 18650 Li-ion battery x1
Working Time
≥8h
USB/Video Output
TYPE C(USB 2.0 Standard)Interface for charging, data transmission and simulation video output
Laser Indicator
Yes, Distance within 200m
Operating Temperature
-10°C~50°C
Encapsulation
IP66,1-meter drop test
Certificate
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
Weight
360g
Dimensions
143mm×45mm×73mm

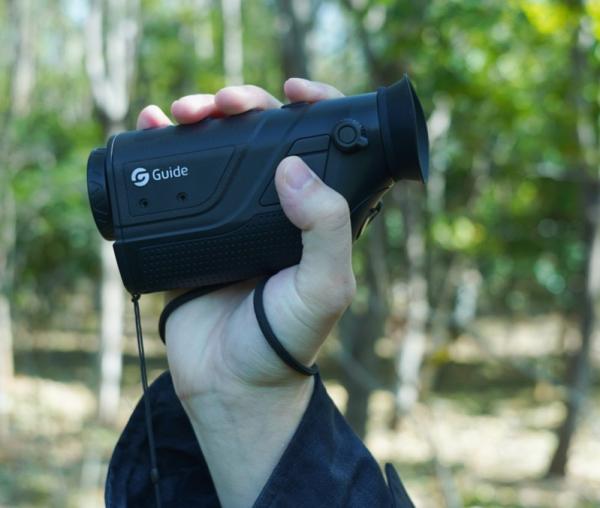

Tiny And Powerful
Lightweight body, which can be controlled by one hand, comfortable to hold, no burden to carry and explore

Simple and easy to use,Extremely flexible control
• Follow the design of traditional optical equipment. The appearance and operation are meet with the traditional user habits
• Simple operation and easy to use


Boot up in 2 Seconds
Open your thermal imaging horizon Immediately
The device has entered working mode by touching the power button,which is convenient for you to explore outdoors efficiently

Image Details Boost
Perception is everything

• High Sensitivity Self-Developed VOx Infrared Detector, Provide clearly and detailed thermal image
• 1280 x 960 High-resolution LCOS Display. Vivid Colors for a comfort observation

In total darknessIndicate the 200m target easily
Turn on the laser indicator to lock the target quickly, The indication range within 200m,And share the target location anytime with your partner


PIP mode
Highlight the Target

The PIP mode can zoom in on the target when you in the complex outdoor scenes, And highlight the details of the target

Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, iron red, blue heat.
• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.


Three visual experiences,
Easy to control even in Complicated scenes
Rich scene modes, Choose the suitable scene for different environments to find the target quickly


Share in real time by WIFI, Have Fun With Friends
• Connect APP Via WIFI, Check and Share the thermal Image in real time.
• Connect Bluetooth Controller to remote control in real time


8 Hours Super Long Operation Time
• No Worry about the battery time, Enjoy heartily.
• Standard 18650 Battery , Easy to Purchase.


IP66, 1-meter Drop test
With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed
