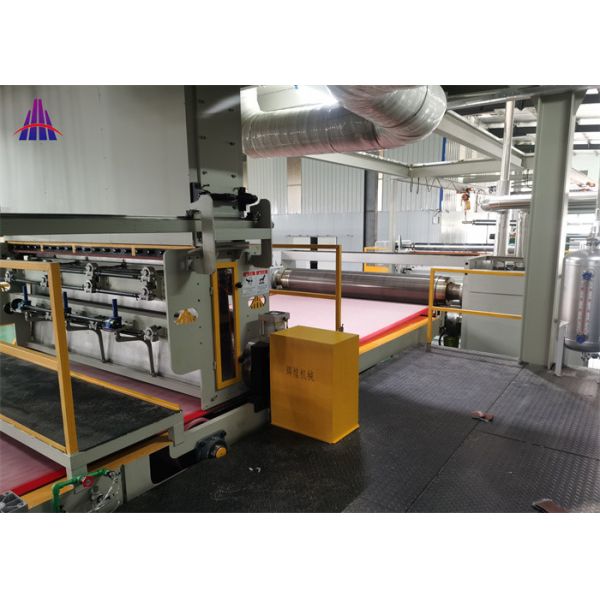

ISO Approve PP Spunbond Nonwoven Production Line Double Beam
ISO Approve PP Spunbond Nonwoven Production Line Double Beam
ISO Approve PP Spunbond Nonwoven Production Line Double Beam
ISO Approve PP Spunbond Nonwoven Production Line Double Beam
ISO Approve PP Spunbond Nonwoven Production Line Double Beam
ISO Approve PP Spunbond Nonwoven Production Line Double Beam
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
1.6ss 2.4ss 3.4ss 4.8ss
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wood box packaged , machine wrapping with PE film keep cargo safe
Product :
double beam spunbond nonwoven machine
gsm :
120 g
Width :
1600mm
machine weight :
100 - 150 ton
Die :
ENKA
Certificate :
CE ISO
Speed :
350 m / min
place of original :
China
Description

PP Spunbond Nonwoven Fabric Making Machine Double Beam Spunbond Nonwoven Fabric Machine

Introduce:

Product Description

Advanced technology nonwoven fabric making machine

Product Application

1.Material:PP chip

2.Weight range:10-120g/m2

3.Fabric usage:Medical applicant,shopping bag,packing,operation suit,face mask,baby diaper.etc

Description of non-woven machine

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

A.General information for nonwoven machine

S Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-250G/㎡ ≈200KVA 650º-700º/Ton 1800T
2400mm 9-250G/㎡ ≈250KVA 650º-700º/Ton 2200T
3200mm 9-250G/㎡ ≈315KVA 650º-700º/Ton 3300T
4000mm 9-250G/㎡ ≈360KVA 650º-700º/Ton 4400T
4800mm 9-250G/㎡ ≈400KVA 650º-700º/Ton 5100T

SS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-120G/㎡ ≈400KVA 650º-800º/Ton 3700T
2400mm 9-120G/㎡ ≈500KVA 650º-800º/Ton 5100T
3200mm 9-120G/㎡ ≈800KVA 650º-800º/Ton 6600T
4000mm 9-120G/㎡ ≈1000KVA 650º-800º/Ton 8800T
4800mm 9-120G/㎡ ≈1200KVA 650º-800º/Ton 10000T

SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T

M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T

SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T

SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T

SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T


Major Characteristics:
1. The whole line is well-structured and easy to operate
2. The whole line highly automated
3. Control elements are of well-know make, high performance and reliable technologies
4. The whole line are controlled by PLC and operated with touch -scree.
5. The allocation of the main frame and auxiliary equipment can be special designed and configurated according to customer's requirements.

Production line characteristics:
Product width: 1600mm

Production capacity: 2200T/year(According to 60G/M2, 7800h per year) Main raw material PP

Product basis weight: 10~200G/M2

Production speed: 10~300m/min

Technological process of the production line:

Raw materialPellet feeding Melting and Extruding Filtration MeteringSpinningAir drawingWeb formingThermal calenderingstrainingRolling upCutting and packing


The TY OF DIE
Effective width
GSM
Annual capacity
Embossing pattern

1
1600mm
10-250GSM
1500T
Diamond, oval, cross , and line

1
2400mm
10-250GSM
2400T
Diamond, oval, cross , and line

1
3200mm
10-250GSM
3000T
Diamond, oval, cross , and line

SS
1600mm
10-250GSM
2400T
Diamond, oval, cross , and line

SS
2400mm
10-250GSM
4000T
Diamond, oval, cross , and line

SS
3200mm
10-250GSM
5000T
Diamond, oval, cross , and lin

Technical Parameters ( Standard Specification) of Our Nonwoven Machine
Model No. Gram Weight MaxSpeed(m/min) Capacity(T/Days) Equipment Size

HH-S (single beam)

 1.6m 9-250 150 4-6 18*8*12m
2.4m 5-7 18*10*12m
3.2m 8-10 18*15*12m

HH-SS (single beam)

 1.6m 10-120 350 8-10.5 45*15*12m
2.4m 10-15 45*18*12m
3.2m 13-20 45*20*12m

HH-SSS (single beam)

 1.6m 10-100 550 12-17 50*15*12m
2.4m 16-21 50*18*12m
3.2m 24-30 50*20*12m

Description Of Non-woven Machine

1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter


2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Main component

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Name : Spinneret

Spinneret width : 256 mm

Hole size : 0.45 nmm

Hole Qty : 12350 - 24500 pcs

Material : SUS 431

Original : CHINA / GERMANY

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Name upper / down drafting unit

Effective Width : 1600 / 2400 / 3200 mm

Filament fineness : 1.6 - 2.4 Denier

Original : CHINA

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Name : Spinning beam

Model : 1600 / 2400 / 3200 mm

Heating System : Oil / Electricity Heating

Distribution Design :big hanger type

Original : CHINA

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Name :Extrusion Machine

Model : ￠130 / 150 / 170

Heating System :electricity heating

Drive Motor : Siemens

Original : CHINA

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Name production line control cabinet

Voltage:380 V / 3 phase

Touch Scren : Siemens

PLC :Siemens

Frequency :Siemens

Indicator :RKC , JAPAN

Original : China

Precisely CNC center

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Exhibition show with customer

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Packaging Details

Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

ISO Approve PP Spunbond Nonwoven Production Line Double Beam

Our Service

Pre-sale Service


Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.

After-sales Service


Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
