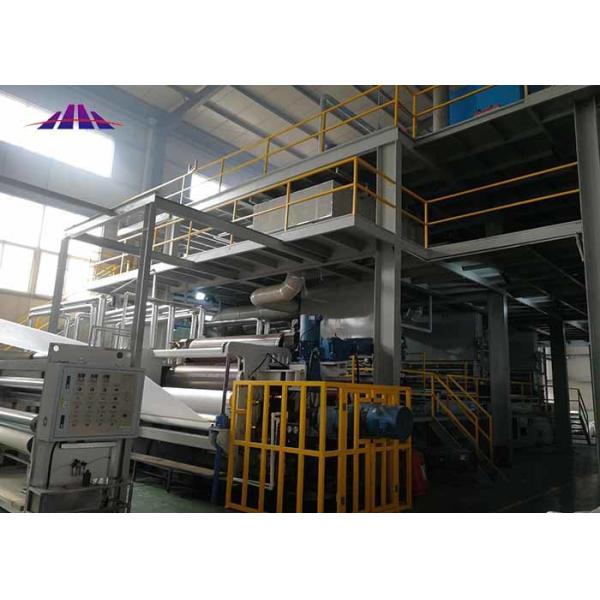

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
HHM - SS SSS
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3 line / months
Delivery Time :
90 - 150 days
Packaging Details :
components wood box packaged , machine wrapping with PE film keep cargo safe
Product :
1600 SSS spunbond nonwoven fabric machine
Width :
1600
gsm :
100 g
out put dayily :
17 ton
Power :
600 - 800 kw
speed :
550 m / min
Size :
50 * 15* 12 M
Weight :
50 -150 ton
Description

pp 1600 ss sss spunbond nonwoven fabric making machine non woven fabric for home textile baby diaper

Product Description

SSS composite non-woven fabric production line adopts three beam structure design. They are nonwoven composite production lines.
The first spunbonded spinning system forms a first layer of yarn net, the second spunbonded spinning system forms a second layer of yarn net, and the third spunbonded spinning system forms a third layer of yarn net.
The three-layer mesh is bonded by hot rolling mill, and finally cut and wound by high-speed rolling mill to form SSS composite non-woven fabric.


Process flow chart
PP raw material Feeding→Extrusion Melting → Filtering → Metering→spinning→Cooling
→Stretching →Web spreading→Thermal bonding→slitting→collecting

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

1600 SSS Model

Effective Width 1600mm
Weight Range 9 - 100 g / ㎡
Out put daily 12 - 17 ton
Machine speed ≦ 550 m / min
Transformer ≈ 630 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50* 15 * 12 M

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper
Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)
Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton
Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.

Sss nonwoven fabric

SSS Nonwoven Fabric
Item

G/m2

specification

 15 30 45 60 90 120
Allowable deviation(%) First class ±8 ±7
Final product ±10 ±9
Width deviation (%) First class +2.0 ,-1.0 +2.0 ,-1.0
Final product +2.5 ,-1.5 +2.5 ,-1.5

Fracture

strength

 MD N/5cm First class 15 35 50 68 95 130
Final product 12 30 45 65 91 108
CD N/5cm First class 10 28 44 64 82 95
Final product 8 25 38 57 57 90

3200 SSS Model

Effective Width 3200mm
Weight Range 9 - 100 g / ㎡
Out put daily 24 - 30 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1250 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*20 * 12 M

M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T

SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T

SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T

SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T

Description Of Non-woven Machine

1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

Description Of Non-woven Machine

1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Main part of Nonwove system

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Candle filtration Machine

Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Spinning Pump

Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Automatic Slitting Machine

Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;

Precisely CNC center hold machining parts beyond custmer request .

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Exhibition show with customer

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

PACKING PROCESS

We use a double packaging process of plastic and wood :first , we pack the machine parts i plastic so that they are protected from air and ranin , oxidaton or rust . The second part is packed with hard wood to weal the box , to avoid collision deformation , so that the machine handed over to you in good condition as new !

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

1600mm PP Spunbond Non Woven Fabric Making Machine For Baby Diaper

Our Advantages

Our Strengths:

1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.

2.Focus on non woven equipment research and development in 14 years. Install and running more than 400 lines all over the world.

3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.

4.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
