PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper
PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper
PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper
PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
1.6sss 2.4sss 3.4sss 4.8sss
Certification :
CE
Place of Origin :
Chuzhou
MOQ :
1
Price :
1000000$/set
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wooden case
Material :
100% polyproylene
weight :
10-250 gsm
style :
plain dot cross
feature :
Eco-friendly
Description

faster PP three beam sss SS S Spunbond Nonwoven Fabric Machine for hygiene adult and baby diaper

Reifenhauser-reicofil 3/4, Spunbond production line, Spinning melt line S, SS, SSS, SXS, SXS, SMMS, SMS, SSMMS
Machine size 18m-60m (length) *10m-31m (width) *10m-12m (height)
Required raw materials
Polypropylene (pp), additive
MFI/MFR:25-40g/10min (spunbond method)
MFI/MFR:800-2000g/10min (melt-blown process)
Effective width 1600mm, 2400mm, 3200mm, 4000mm, 4800mm can be customized as required
Maximum speed 150m/ Mn-550m /min
Transformer and power consumption
Transformer requirements: 200kVA-3000kVA
Power consumption: 500KWH/ ton -1400KWH/ ton
Annual output of 1500 tons -10000 tons
Product GSM 8GSM-250 GSM
Product application
Industry: shopping bags, furniture, agriculture, packaging, etc
Medical treatment: surgical gown/cap/sheet/mask, etc
Hygiene: diapers, hygiene products, napkins, etc.

Product application

Material PP chip Weight range 10-150 g/m2
Model

HHM-1.6SSS/HHM-2.4SSS

HHM-3.2SSS/HHM-4.0SSS/HHM-4.8SSS

 Fabric usage

Medical applicant,shopping bag , packing

Operation suit,face mask, baby diaper.etc

SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T


The Advantage of HH Nonwoven Fabric Making Machines:

1.High accurate raw material blender for polyproplyene and additives;

2.High capacity extrusion machine with good screw and barrel;

3.High performance melt filtration system;

4.High Speed with high accurate melt pump;

5.Lastest melt flow design and spinning system;

6.Well-know PLC control system and motors;

7.Smart operation program and monitoring syustem;

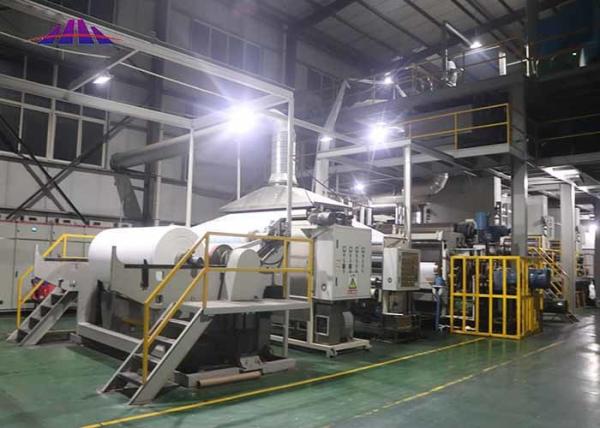

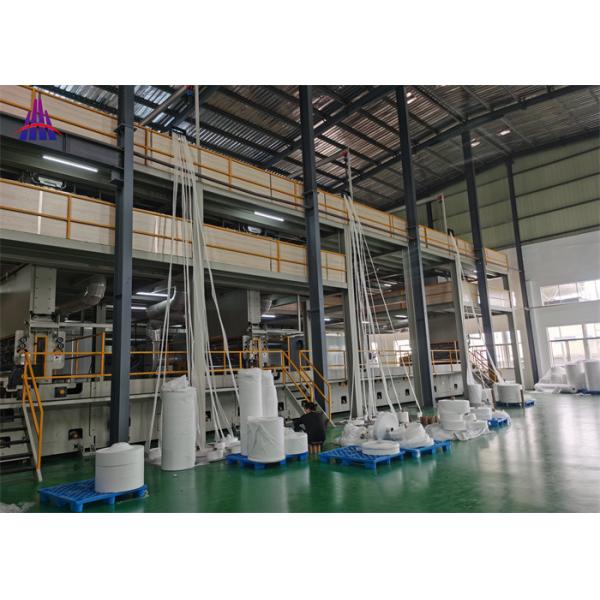

Image of non woven making line

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

Key component

Brand:HHM

Original:China

Feeding capacity: 500kg/h for 1.6m , 800kg/h for 3.2m

Delivering distance:12m

Material:stainless steel

Fuction: Automatic sucking the PP materils to the non woven fabric making machine

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

Name:Filter
Brand:HHM
Original: China
Type: Hydraulic or Candle filter

Filter precision: 45μm~60μm

Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

Fabricate process

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

CNC center

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

Image of our machine

7.Packaging Details

Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

PP Three Beam Non Woven Machinery SS SSS For Hygiene Diaper

Our Service

.Pre-Sales Service

Design and make plan for the workplace.

Offer sketch map of machine and place it into the workplace

After-sales Service

Training and training how to use the machine.

Engineers can repair machinery.

FAQ

1. Q : Are you a factory or trading company ?

A : We are established in 2009 , has been in onwoven industry for more than ten years .

2. Q: Do you have technical support?

A: yes , we will provide on-site installation service.

3 Q : How does your factory do regarding quality control ?

A: Quality is the most important principle . we always attach great importane to quality controlling from the very beginnging to the very end , our factory has passed CE and ISO certification .

4 Q :How long is you machine’s warrant period .

A : bascily one year warranty , long time service support .
