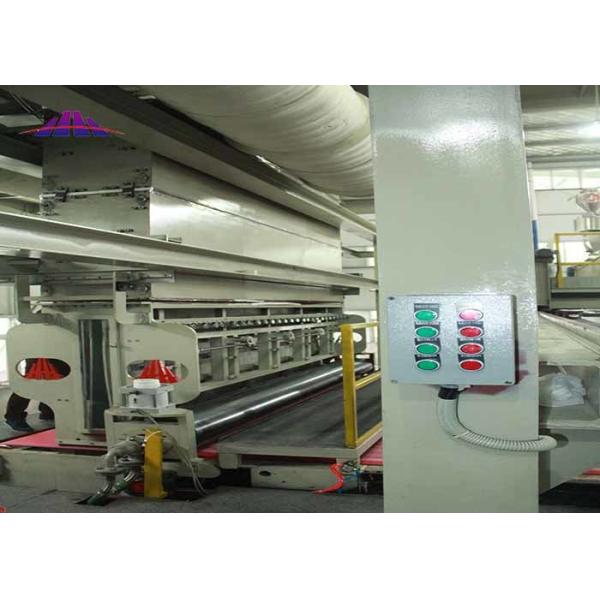

SMS PP Meltdown smms smmss Fabric Extruder Making Machine PP Spunbond nonwoven production line

Product Description

The resin chips are fed into the screw extruder, heated and melted, and then extruded from the extrusion port. The molten polymer at the die outlet is impacted at high speed. At the same time, the cold air blown from both sides of the mold cools and solidifies the fibers to form ultrafine short fibers. Under the action of air flow, these short fibers gather on the fiber collection device to form a net or fiber core. Melt blown process is a step from thermoplastic resin chip to fiber mesh belt (cloth / core tube). Therefore, the process is short, the product is formed in one step and the production efficiency is high. By adjusting the combination of melt blown process, different fiber structures (such as fiber diameter (0.5 ~ 3um), mesh size, etc.) can be obtained. Melt blown process is applicable to a variety of raw materials and processing a variety of materials, such as polypropylene, polyester, nylon, etc. At present, polypropylene materials account for more than 95%

Technical parameter

Machine Parts:

1.Name: Extrusion Machine

Model:φ130/150/170

Heating System: electricity heating

Drive Motor: Siemens

Original:CHINA

2.Name: raw material dosing machine

Weight system: by weight

Hopper : 4 pcs

Accuracy:0.01%

Feeding Percentage: 1-99%

Original:USA/ITALY

3.Name: Candle filtration Machine

Model: CPF-PT-3.5C

Filtration Area: 3.5m2

Capacity: 650kgs/h

Filtration Chamber: 2 pcs (switch online)

Original:CHINA

4.Name: Spinning Pump

Model:200/250/300CC

Capacity:300-450Kg/H

Speed:40Rpm/Minute

Drive Motor:Siemens

Original: CHINA/GERMANY

5.Name:Spinning beam

Model:1600/2400/3200mm

Heating System:Oil/Electricity Heating

Distribution Design: big hanger type

Original:CHINA

6.Name:Spinneret

Spinneret width: 256mm

Hole size: 0.45mm

Hole Qty:12350-24500pcs

Material: SUS431

Original:CHINA/GERMANY

7.Name:upper/down drafting unit

Effective Width:1600/2400/3200mm

Filament fineness:1.6-2.4 Denier

Original:CHINA

8.Name: Melt blown spinning beam

Model: 1600/2400/3200mm

Material: SUS630

Spinneret Hole:0.32-0.35mm

fabric weight:2-200grams

Original:GERMANY/JAPAN

9.Name:Embossing calender machine

Emboss Pattern: ovel/diamond/sesame/dot

Emboss Roll diameter: 450-520mm

Linear pressure: 30-125 N/mm

Original:CHINA/GERMANY

10.Name:Automatic winding machine

Effective width:1600/2400/3200 mm

Rolling Speed:200-400M/Minute

Rolling Diameter:2000 mm

Original: CHINA

11.Name:Automatic slitting machine

Speed:600-800 M/Minute

Min. Slitting width:80mm

Max. Rolling size:1500mm diameter

Auto tensile control:online

Auto meter counting:online

Original:CHINA

12.Name:Production line control cabinet

Voltage: 380 V/3 Phase

Touch Screen:Siemens

PLC: Siemens

Frequency:Siemens

Indicator: RKC,JAPAN

Original:CHINA

HHM SMMS DATA SHEET

SMS nonwoven fabric

SMS Model

SMMS Model

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Manin parts of SMS system

winder & Winder The main function for a large package of cloth cutting according to customer specifications, to meet the customer's length, width, volume weight requirements. machine is used to have made the non woven finished products into the packaging equipment .

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.

Precisely CNC center make sure machine parts meet customer request .

Exhibition Show

Packing & shipping

eletrical parts , small machine parts put in wooden or carton box , eaach box nembered .

huge machine with PE film wrapping several turns fixed in container keep cargo safe.
