Customized Non Woven Cloth Making Machine 100gsm 3200mm
Customized Non Woven Cloth Making Machine 100gsm 3200mm
Customized Non Woven Cloth Making Machine 100gsm 3200mm
Customized Non Woven Cloth Making Machine 100gsm 3200mm
Customized Non Woven Cloth Making Machine 100gsm 3200mm
Customized Non Woven Cloth Making Machine 100gsm 3200mm
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
2.4 sms
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wooden case
cargo :
3.2 sms pp spunbond nonwoven production line
gsm :
100 g
method :
meltblown & spunbond
Width :
3200 mm
Customized :
accepted
annual output :
5000 - 15000 Ton
original :
China
core component :
engine PLC gear box
Description

alcohol resistance SMS SMMS medical doctor gown protection cloths PP spunbond nonwoven production line

Advantage of sms smms fabric

1. Light weight: polypropylene resin as the main raw material, the proportion is only 0.9, only three fifths of cotton. It's fluffy and feels good.
2. Softness: by fine fiber (2-3D) light hot fusion bonding. The finished product is soft and comfortable.
3. Pump permeability: polypropylene slices do not absorb water, water content is zero. The finished product has good pumping effect, 100% fiber composition, high porosity, good air permeability, easy to keep the cloth dry, easy to clean.
4, non-toxic and non-irritating: this product uses FDA food grade raw materials, does not contain other chemical ingredients, stable performance, non-toxic, no odor, no irritation to the skin.
5. Antibacterial and chemical resistant agent: Polypropylene is a moth-free chemical passivation material that can isolate bacteria and insects in liquid erosion; Antibacterial, alkali corrosion, the finished product does not affect the corrosion strength.
6. Antibacterial. This product has the ability of water absorption and non-mildew, can isolate bacteria and insects in liquid erosion, non-mildew and moths.
7. Good physical performance. It is made of polypropylene directly spun into a network and thermal bonding. The strength of the product is better than that of short fiber products. Intensity has no direction, vertical and horizontal intensity are similar.

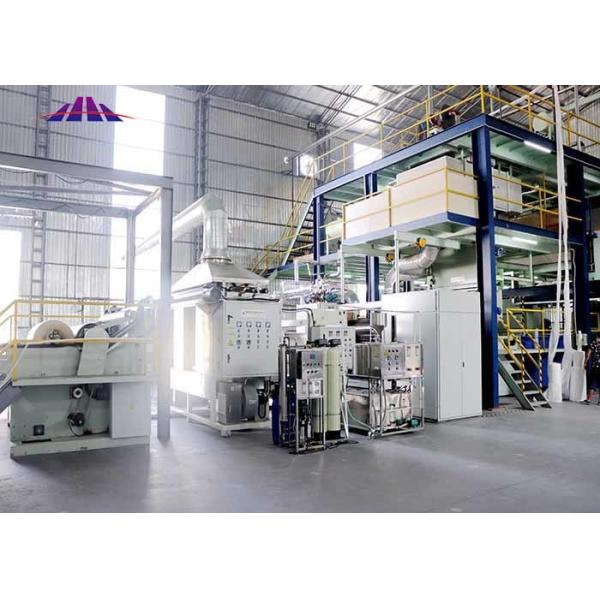

SMS composite non-woven production line is a machine consisting of two spunbond spinning systems and one melt-blown spinning system.
The first spunbond spinning system forms the first web, then the melt-blown spinning system forms the second web, then the second spunbond spinning system forms the third web.
Three layers of mesh are bonded by hot rolling mill, and finally cut and wound by rolling mill to form SMS composite non-woven fabric.

Process speed 9-550 M/MIN
Model HHM-PP 1600
Capacity 6-10T / Day (calculation basd on fabric 15 gsm , width at 1600 mm)
Filament Denier SPunbond :1.5~2.5D Meltblown:1.6~4um
Fabric weight 10~100gsm

Total installed

Power(kw)-sms

 1299

Actual Power

Consumption(KW) SMS

 800

Water

Consumption(Ton/Day)

 0.3
Circulation Water(m3/H) 120
Circulatin water(m3/H) 120
Raw Material

100%polypropylene Granuyle GRade MFI 25-40 For spunbond

MFI 800~1600 For Melt Blown

Molecule uniformity

Degree(%)

 >98%
Melting Point (℃)
ASH < 0.15-0.25%
Plant Size 35m*18m*12m
Labor Requirement 7 Worker per shift ,2 shifts per 24 hours , totally 14 workers .

SMS nonwoven fabric

G / ㎡ 17 30 60
MD N / 5 cm ≧23 ≧40 ≧81
CD N / 5 cm ≧11 ≧22 ≧45
MD Elongatin % ≧30 ≧30 ≧30
CD Elongatin % ≧30 ≧30 ≧30
Hydro-static pressure resistance mm H2o ≧110 ≧200 ≧300

Customized Non Woven Cloth Making Machine 100gsm 3200mm

SMS Model

Effective Width

(mm)

 Raw Material

GSM Range

(g/sqm)

Max Speed

(m/min)

Annual Capacity

(Ton / year )

Daily Capacity

( Ton / day )
1600mm Polypropylene(PP)

9-100g

 350 3200T 9T
2400mm 5100T 14T
3200mm 7000T 19T
4000mm 8700T 24T

SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T

Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Medical Product Surgical drapes ,Surgeon’s mask ,etc .
Nonwoven Hygiene Product Baby and adult diapers
Work protection product Protctive clothing , breathing masks
Nonwoven Filtration product Protective clothing , breathing masks

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Manin parts of SMS system

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Maximum temperature 300 ℃
Max. Output 200 kg / h
Heating zone 8 tod
Perforated length 3,350 mm
HPI 40
Number of holes 5,276
1 Set L/D 10
Capillary diameter 0.3mm
Capillary length 3,600mm

Customized Non Woven Cloth Making Machine 100gsm 3200mm

winder & Winder The main function for a large package of cloth cutting according to customer specifications, to meet the customer's length, width, volume weight requirements. machine is used to have made the non woven finished products into the packaging equipment .

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.

Precisely CNC center make sure machine parts meet customer request .

Customized Non Woven Cloth Making Machine 100gsm 3200mmCustomized Non Woven Cloth Making Machine 100gsm 3200mm

Exhibition Show

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Packing & shipping

eletrical parts , small machine parts put in wooden or carton box , eaach box nembered .

huge machine with PE film wrapping several turns fixed in container keep cargo safe.

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Customized Non Woven Cloth Making Machine 100gsm 3200mm

Our service

Pre-sale Service

Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.
7.After-sales Service
Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
