CE Certificate Medical Non Woven Equipment 1600mm High Safety
CE Certificate Medical Non Woven Equipment 1600mm High Safety
CE Certificate Medical Non Woven Equipment 1600mm High Safety
CE Certificate Medical Non Woven Equipment 1600mm High Safety
CE Certificate Medical Non Woven Equipment 1600mm High Safety
CE Certificate Medical Non Woven Equipment 1600mm High Safety
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
1.6 sms
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wooden case
cargo :
sms pp spunbond nonwoven production line
gsm :
80 g
method :
meltblown & spunbond
Width :
1.6 M
Certificate :
CE
daily output :
10 ton
service :
dedicate engineer oversea or online
warranty :
one year
Description

CE quality certificate SMS SMMS medical doctor gown protection cloths PP spunbond nonwoven production line

SMS composite non-woven production line is a machine consisting of two spunbond spinning systems and one melt-blown spinning system.
The first spunbond spinning system forms the first net, then the melt-blown system forms the second net, then the second spunbond spinning system forms the third net.
Three layers of mesh are bonded by the hot mill, and finally cut and wound by the mill to form SMS composite non-woven fabric.
CE Certificate Medical Non Woven Equipment 1600mm High Safety

SMS nonwoven fabric

G / ㎡ 17 30 60
MD N / 5 cm ≧23 ≧40 ≧81
CD N / 5 cm ≧11 ≧22 ≧45
MD Elongatin % ≧30 ≧30 ≧30
CD Elongatin % ≧30 ≧30 ≧30
Hydro-static pressure resistance mm H2o ≧110 ≧200 ≧300

Effective Width

(mm)

 Raw Material

GSM Range

(g/sqm)

Max Speed

(m/min)

Annual Capacity

(Ton / year )

Daily Capacity

( Ton / day )
1600mm Polypropylene(PP)

9-100g

 350 3200T 9T
2400mm 5100T 14T
3200mm 7000T 19T
4000mm 8700T 24T

Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Medical Product Surgical drapes ,Surgeon’s mask ,etc .
Nonwoven Hygiene Product Baby and adult diapers
Work protection product Protctive clothing , breathing masks
Nonwoven Filtration product Protective clothing , breathing masks

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

CE Certificate Medical Non Woven Equipment 1600mm High Safety

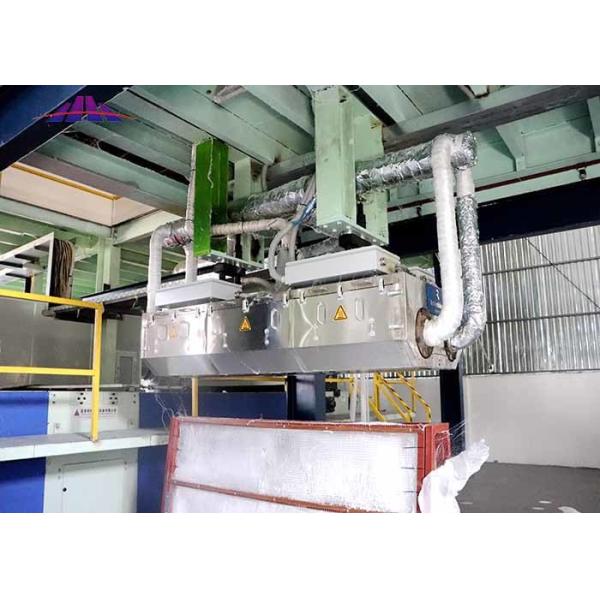

Manin parts of SMS system

CE Certificate Medical Non Woven Equipment 1600mm High Safety

Maximum temperature 300 ℃
Max. Output 200 kg / h
Heating zone 8 tod
Perforated length 3,350 mm
HPI 40
Number of holes 5,276
1 Set L/D 10
Capillary diameter 0.3mm
Capillary length 3,600mm

CE Certificate Medical Non Woven Equipment 1600mm High Safety

winder & Winder The main function for a large package of cloth cutting according to customer specifications, to meet the customer's length, width, volume weight requirements. machine is used to have made the non woven finished products into the packaging equipment .

CE Certificate Medical Non Woven Equipment 1600mm High Safety

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.

Precisely CNC center make sure machine parts meet customer request .

CE Certificate Medical Non Woven Equipment 1600mm High SafetyCE Certificate Medical Non Woven Equipment 1600mm High Safety

Exhibition Show

CE Certificate Medical Non Woven Equipment 1600mm High Safety

CE Certificate Medical Non Woven Equipment 1600mm High Safety

Packing & shipping

eletrical parts , small machine parts put in wooden or carton box , eaach box nembered .

huge machine with PE film wrapping several turns fixed in container keep cargo safe.

CE Certificate Medical Non Woven Equipment 1600mm High Safety

CE Certificate Medical Non Woven Equipment 1600mm High Safety

Our service

Pre-sale Service

Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.
7.After-sales Service
Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
