SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape
SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape
SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape
SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
vacuum cleaning furnace
Certification :
CE
Place of Origin :
Chuzhou
MOQ :
1
Price :
USD 10,000 set
Supply Ability :
1 set 30 days
Delivery Time :
50 work days
Packaging Details :
plastic film wrapped or wooden box keep cargo safe
Cargo Name :
non woven vacuum Cleaning furnace
Application :
cleaning melt blown spunbond Dia nozzle
chamber material :
sus 304
voltage :
200 -380 v
temperature :
600 degree celsius
warrnty :
one year
frame :
stainless steel and steel
shape :
round
Description

low price reliable fluidized bed vacuum cleaning furnace

The vacuum cleaning furnace adopts high-temperature resistant sealing ring and anhydrous cooling protection. Therefore, the device has low heating power, high thermal efficiency, fast heating speed, good temperature uniformity, convenient inspection and maintenance of heater, saves power and water compared with the heater outside the furnace, and overcomes the shortcomings of poor temperature uniformity and poor local cleaning effect caused by water cooling.
main features
1. The cleaning is fully automatic
2. Accurate temperature control
3. Suitable for all kinds of thermoplastic polymers
4. Short cleaning cycle and low energy consumption
5. Safe and pollution-free

n

Inner chamber size 500*1400 mm
Parts size P170mm*40mm
Guard(mm) 600*2300
Dimension (mm) 4950*1600*2700
Heating power 24Kw
Vacuum pump 2.35KW

Inner chamber size Cleaned parts Parts size Quantity of parts
1 500*1400mm spinneerets P170mm*40mm 12pcs
2 P600*1400mm(clean one kind parts at a time ,not all) spinneerets 360*175*75mm 6pcs
spinneerets 360*185*135mm 6pcs
spinneerets 310*120*40mm 6pcs
spinneerets 305*120*25mm 6pcs
Screw P35*960mm 3pcs
3 P550*5000mm Screw P111*4700mm 2pcs

Vacuum cleaning furnace equipment structure

Vacuum cleaning furnace includes vacuum cleaning furnace body, furnace cover and the waste collection system, vacuum system, sealing system, electric heating system controlled by microcomputer, water cooling system and cleaning material loading and unloading system.

The working principle of

The use of chemical fiber polymer in the vacuum state of isolation of air and about 500℃ under the principle of cracking.

Type Model Guard size (mm)
(L*W*H)		 External size (mm)
(L*W*H)		 Power (KW)
Heat/vacuum mercury		 Water consumption
(m3 /h)

Vertical
type		 HHM φ500×600 2000×1800×2100 18/2.2 0.23
HHM φ600×800 2200×2000×2200 21/2.2 0.23
HHM φ800×1000 2600×2300×2500 27/3 0.28
HHM φ1000×1200 2800×2500×2700 32/2.2 0.45

Well type		 HHM 1400×400×400 1600×1200×1000 21/2.2 0.28
HHM 2200×600×600 1800×1300×1100 27/3 0.28
HHM 3200×600×600 2100×1500×1300 32/3 0.28
HHM 4000×600×600 2100×1500×1600 36/4 0.45

Horizontal
type		 HHM φ500×600 2000×1000×1300 18/2.2 0.23
HHM φ600×900 2400×1100×1600 21/2.2 0.23
HHM φ800×1100 2600×1200×1800 27/3 0.28
HHM φ1000×1500 2800×1400×2000 32/4 0.45

advantages

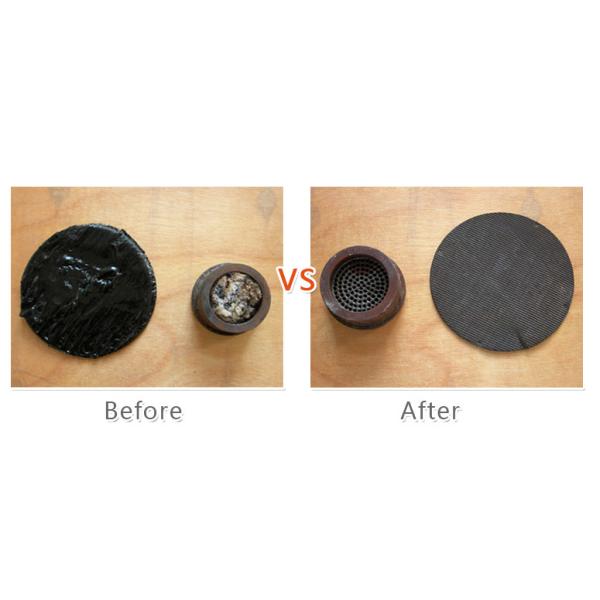

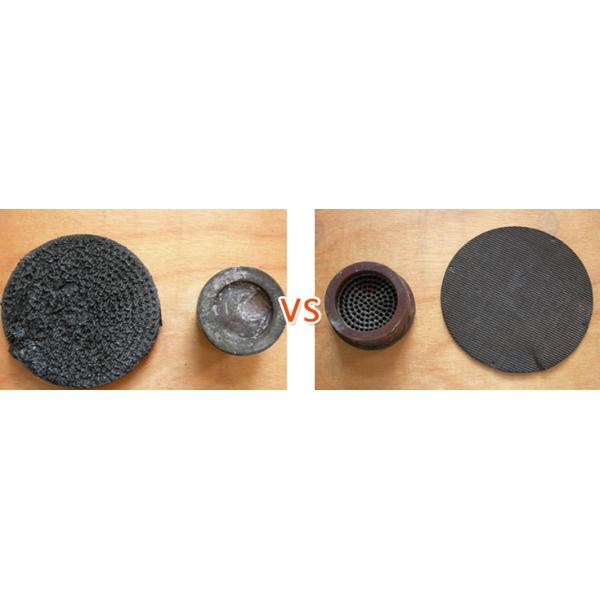

It has the advantages of low pollution to the environment, clean surface of the cleaning spinneret board, smooth hole, and can prolong the service life of the spinneret board and short working time, energy saving, simple operation, good cleaning effect, high degree of automation.

Apply to industry

The vacuum cleaning furnace is used to clean the common spinnerets, special-shaped spinnerets, fine denier spinnerets and component shells in polyester, polypropylene and non-woven industries of chemical fiber industry, as well as filter elements.

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round ShapeSUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round ShapeSUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round ShapeSUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

high precisely CNC center hold machinning parts beyond custmer request

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

Exhibition show

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

Packing and shipping

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

SUS 304 Fluidized Bed Large Vacuum Furnace Thermal Round Shape

FAQ

1 Are you factory or trading company?

Actually we are manufacturer with our own factory , have the right to export and import product authorized by government.

2. Can you do OEM .

Yes of course .we can produce the product an per you request.

3. Can I get sample from your company? Should I pay the express fee?

If we have the sample in stock ,it will be free. If you want a customized sample ,we can renegotiate the cost. About the express fee , please offer a freight collected account and pay for the express by you side. After confirming you order ,the samples freight will be deducted from you order’s total cost.

4. what can I do if machine stop work?

You can email us ,call us or video call we let our engineer checking what is the problem is, if the spare parts or something broken in the warranty time, we offer free.

5. what is your after service?

We offer customer a lifetime service.
