50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning
50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning
50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning
50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
1.6s 2.4s 3.4s 4.8s
Certification :
CE
Place of Origin :
Chuzhou
MOQ :
1
Price :
USD 10,000 set
Supply Ability :
1 set 30 days
Delivery Time :
50 work days
Packaging Details :
plastic film wrapped or wooden box keep cargo safe
product Name :
non woven vacuum Cleaning furnace
Feature :
easy operation
voltage :
customized
capacity :
1 T - 50 T
Power :
20 -2500 kw
usage :
spinneret die cleaning
Max temperature :
600 ℃
warranty :
one year
Description

spinning nozzle cleaning machine fluidized bed vacuum cleaning furnace Vacuum Cleaning Furnace

Application

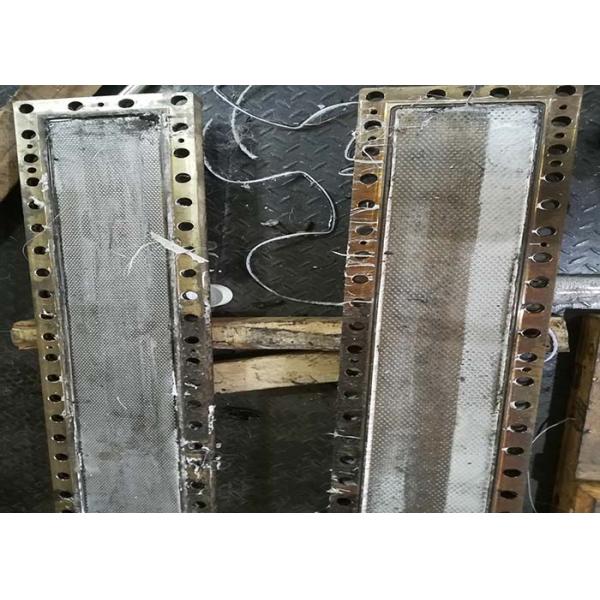

Professional cleaning spinneret, filter, filter, die head, screw, etc.
1. Clean the ordinary spinning reel. Profiled spinnerets, fine denier boards, component housings, polyester, polypropylene and non-woven fabrics used in chemical fiber cleaning industry.
2. Clean filter element.
It uses the principle that synthetic polymers are separated from the air in a vacuum and at temperatures of around 500 degrees Celsius
Polymer cleaning melt filter cleaning device
This high temperature muffle furnace is used for cleaning mesh changers, crushing boards and screen spinnerets, as well as other chemical fiber filters.
It is well known that the polymer melt sticks to the surface and is not easy to clean the broken mesh plate of the mesh changer after long-term use.
Muffle furnace is very different, easy to clean circuit breaker plate. It saves a lot of human intervention.
This high temperature muffle furnace is used for cleaning mesh changers, crushing boards and screen spinnerets, as well as other chemical fiber filters.



Technical data

Chamber dimension

of the furnace

(mm)

Overall

dimension

(mm)

 Designed TEM(℃)

Working Tem

(℃)

Accuracy Tem

(℃)

Working power

(KW)

Vacuum pump

Hydraulic pressure of water

(Mpa)

Water consumption

(L/H)
Mold Dia L L W H

Ultimate vacuum

(Mpa)

Evacuation Rate

(m3/h)

HHM-5

 800 1400 3450 2100 1930 650 500 ±1 28 -0.085 80 ≧0.25 120
HHM-6 600 1700 4230 1910 1700 650 500 ±1 30 -0.085 80 ≧0.25 120
HHM-7 600 2200 5400 1910 1700 650 500 ±1 40 -0.085 80 ≧0.25 120
HHM-8 700 3300 7510 2010 1790 650 500 ±1 65 -0.085 80 ≧0.25 120

Application

Professional cleaning spinneret, filter, filter screen, die head, screw, etc.
1. Clean the ordinary spinning board. Special shaped spinneret, fine denier board and component shell are suitable for non-woven fabrics in polyester, polypropylene and chemical fiber cleaning industries.
2. Clean the filter element.
3. It applies the principle of decomposition of synthetic polymers under vacuum and high temperature of about 500 ℃ isolated from air.


Inner chamber size 500*1400 mm
Parts size P170mm*40mm
Guard(mm) 600*2300
Dimension (mm) 4950*1600*2700
Heating power 24Kw
Vacuum pump 2.35KW

Main feature
1.Cleaning is totally automatic

2. Precise temperature control

3. Suitable for different thermo plastic polymers

4. Short cleaning cycles and low energy consumption

5. Safety and no pollution

Inner chamber size 500*1400 mm
Parts size P170mm*40mm
Guard(mm) 600*2300
Dimension (mm) 4950*1600*2700
Heating power 24Kw
Vacuum pump 2.35KW

Inner chamber size Cleaned parts Parts size Quantity of parts
1 500*1400mm spinneerets P170mm*40mm 12pcs
2 P600*1400mm(clean one kind parts at a time ,not all) spinneerets 360*175*75mm 6pcs
spinneerets 360*185*135mm 6pcs
spinneerets 310*120*40mm 6pcs
spinneerets 305*120*25mm 6pcs
Screw P35*960mm 3pcs
3 P550*5000mm Screw P111*4700mm 2pcs

Vacuum cleaning furnace equipment structure

Vacuum cleaning furnace includes vacuum cleaning furnace body, furnace cover and the waste collection system, vacuum system, sealing system, electric heating system controlled by microcomputer, water cooling system and cleaning material loading and unloading system.

The working principle of

The use of chemical fiber polymer in the vacuum state of isolation of air and about 500℃ under the principle of cracking.


advantages

It has the advantages of low pollution to the environment, clean surface of the cleaning spinneret board, smooth hole, and can prolong the service life of the spinneret board and short working time, energy saving, simple operation, good cleaning effect, high degree of automation.

Apply to industry

The vacuum cleaning furnace is used to clean the common spinnerets, special-shaped spinnerets, fine denier spinnerets and component shells in polyester, polypropylene and non-woven industries of chemical fiber industry, as well as filter elements.

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

50T 600 Degree Vacuum Furnace Systems Calcination Machine For Spinneret Die Cleaning

After-sales service

12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
