PFE 99 N95 face mask civil medical filter fabric Meltblown Nonwoven fabric Machine

The melt-injection production line mainly includes the feeder, screw extruder, filter device, metering pump, melt-injection mold head assembly, Roots blower, air heater, receiving device, winding device.Production auxiliary equipment mainly includes forging furnace, ultrasonic cleaning furnace, etc

Technical Parameters

PP melt-blown nonwoven cloth machine list:

No. Machine list Qty.

1. screw extruder 1set

2. Mould 1set

3. Spinneret plate 1set

4. Air heater 1set

5. Gas tank 1set

6. Air compressor 1set

7. Frozen type compressed air drying machine 1set

8. Web Former machine 1set

9. Slitting Machine 1set

10. Winder 1set

Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m

Fuction: Automatic heat , melt and extrude the PP materials

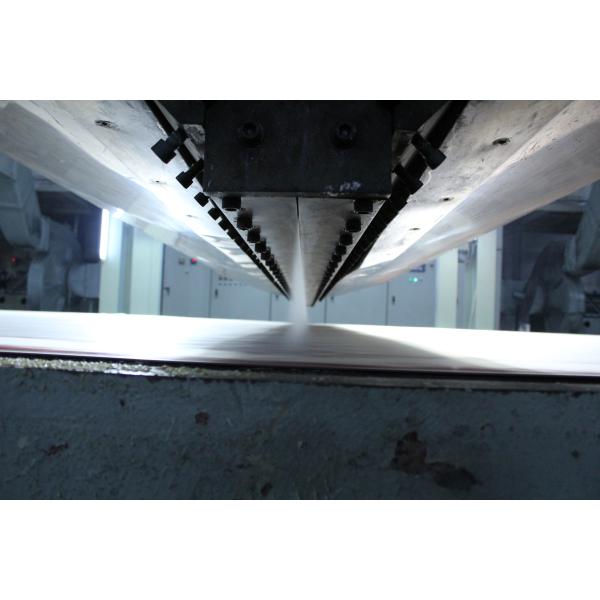

The role of spinneret is to transform viscous flow of polymer melt or solution into small section with special section, and solidify through solidified medium, such as air or solidification bath. It is used for the uniform exit of the tow.

Name:Metering Pump
Brand:HHM
Original:China
Supply volume:200cc for 1.6m, 200ccx2 for 3.2m

Rotate speed:5~35r/min

Max Pressure:35MPa

Temperature:≤330℃

Fuction: meter PP melt liquid

Name: Material Auto-Feeder

Brand:HHM

Original:China

Feeding capacity: 500kg/h for 1.6m , 800kg/h for 3.2m

Delivering distance:12m

Material:stainless steel

Fuction: Automatic sucking the PP materils to the non woven fabric making machine

Workflow:

PP raw material→Melting and extrusion→filter→metering→spinning→flame spray+flame spray(mect blow)→spinning→Net laying→Calendering→Winding,Slitting

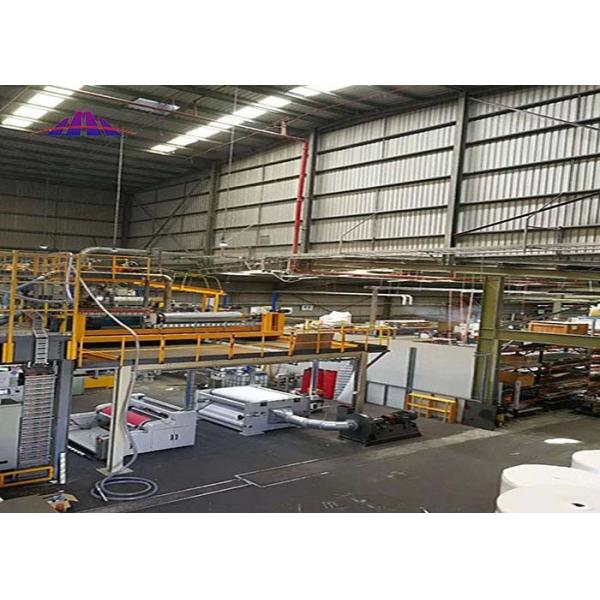

Projet image in customer side

Our service

Pre-Sales Service

HH employees have special sense of responsibility and an excellent team spirit,therefore machinery complies to the highest

standard in nonwoven industry creating by with individual outstanding components. Supported by modern technology A.L designed for

custom-built machinery and machinery offers an optimum solution for all customer requirements.

After-Sales Service

HH supports our customers service 24 hours A day,7 days work ,Any inquiry could be replied within 1 hour pre-sales and
after-sales. We Believe hat only :Best Quality Machine With Innovative Ideas and Excellent After-sale Service:"shall meet your
special requirement"

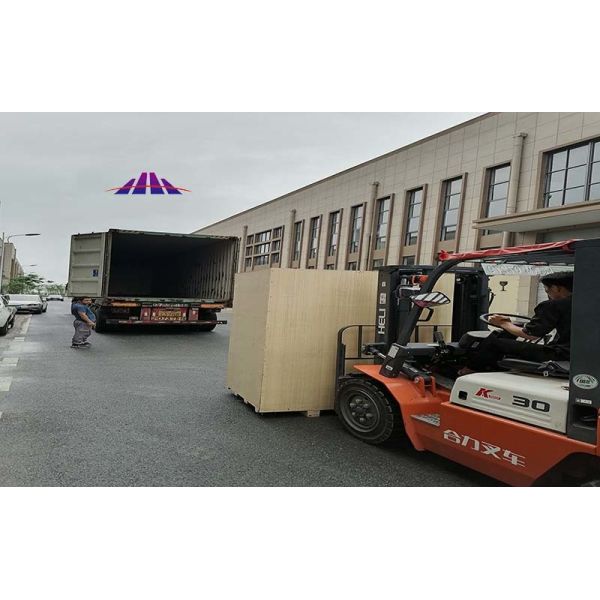

parking & delivery

Machine nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.

FAQ:

1. Q : Are you a factory or trading company ?

A : We are established in 2009 , has been in onwoven industry for more than ten years .

2. Q: Do you have technical support?

A: yes , we will provide on-site installation service.

3 Q : How does your factory do regarding quality control ?

A: Quality is the most important princFAQiple . we always attach great importane to quality controlling from the very beginnging to the very end , our factory has passed CE and ISO certification .

4 Q :How long is you machine’s warrant period .

A : bascily one year warranty , long time service support .
