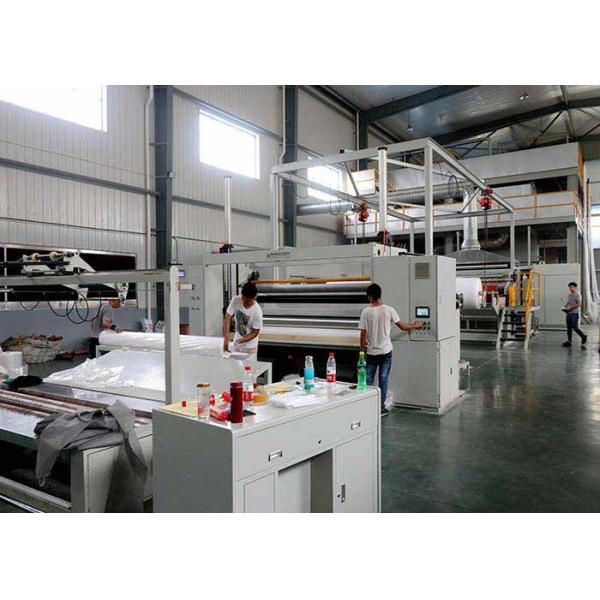

HHM high efficiency customized easy operation ss non woven fabric making machine

• .High automation,A fully automatic fabric assembly line. Ensure machine stability and labor cosst saving .
• Leading technology ,0.25 mm hold diameter of spinneret asKASEN from Japan
• International well- know Brand parts,Siemens PLC and Schnelder electrical components with high performance and reliable technologh.
• European safely standards and meet CE standard.
• Lower maintenance cost , ultrasonic cleaning machine+dry ice cleaning machine more advanced cleaning system .
• Optional, wate eletret treatment over standard quality meet higher -level filtration standard.

Important data at a glance

M Model

SMS Model

Description Of Non-woven Machine

B.Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->
Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->
Calender---->Winder---->Slitter

C.Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->
Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

D.Parts of Melt blown nonwoven fabric production line:
Main extruder---->Filter---->Metering pump---->Air heating system---->
Melt blown sprayer(ENKA sprayer)---->Web former---->Winder---->Slitter

E.Melt blown process and technical flow chart:
Raw material----> Melting---->Filtering---->Measuring ---->Air heating---->
Spraying---->Web forming---->Winding----> Cutting---->Final product

Main parts of spunbond making machine

Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;

Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;

Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA

Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;

Precisely CNC center hold machining parts beyond customer require.

Exhibition Show with customer

Packaging Details

Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.

our service :

1.Machine Inspection

We warmly welcome the customer to come our factory to inspect the production line before delivery . The machines only be delivered when the you accept the quality of the machines and the product.

2.Installation and Training

Once we finalize the production and delivery,we will assign about 1-3 professional engineers both in mechanical and electrical parts to the buyer’s factory for installation and samples test . And the engineers will also train some skilled workers for buyer. The seller will explain, operate and analyse in theory on the spot until the customer can operate the equipment himself. The customer can consult with the seller at any moment if they don’t understand.

3.After-sale Service

If you have difficulties or faults that can not be resolved by themselves during the practical production, we will offer relative technology immediately or assign workers to resolve the problems on the spot.
