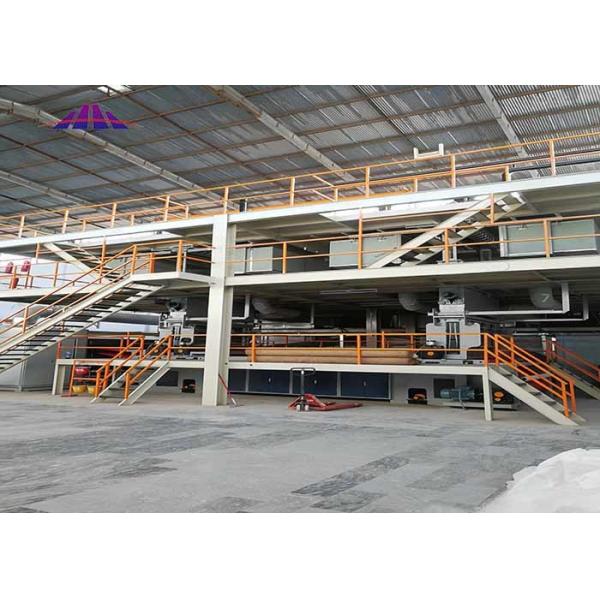

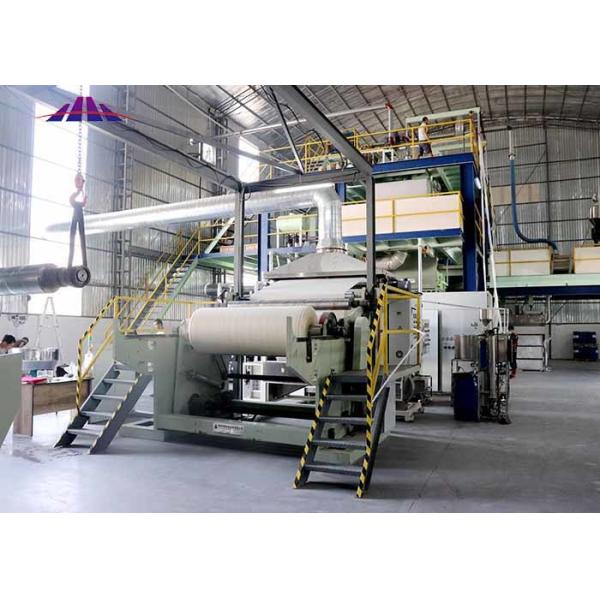

350m/Min Non Woven Fabric Making Machine

Specifications

Brand Name :

Chuzhou HH non-woven

Model Number :

SMS SMMS SSMMS S SS SSS

Certification :

Place of Origin :

Chuzhou China

MOQ :

1 set

Price :

negotiable

Supply Ability :

For detailed talk

Delivery Time :

For detailed talk

Packaging Details :

wooden case

Name :

Non Woven Fabric Making Line

Screw type :

twin screw

finished product :

non woven roll

advantage :

spunbond technical

spinneret :

ENKA

Service :

dedicated engineer on line support or over sea

Port :

Shanghai / Nanjing

Description

hydrophilic non woven fabric making machine for hygiene adult baby diapers

. nonwoven fabric uses:

1) Medical and health supplies: surgical clothes, clothing, masks, diapers, sanitary napkins, disposable sanitary supplies, etc;

2) Home decoration: shopping bag, wall cloth, tablecloth, bedspread, bedspread, etc;

3) Clothing or shoe lining: lining, adhesive lining, shoe lining, etc;

4) Agricultural use: protective cover, nursery cover, etc;

HHM 1600 m SS Double beam fabric making line date

Width	1600 M
Gsm	9 - 120 gsm
Output per day	8 - 10.5 Ton
Machine Speed	≦ 350 m / min
Transformer	≈ 400 KVA
Power Consumption	650º - 800º / Ton
Machine Size	45 * 15 *12 M

SS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-120G/㎡	≈400KVA	650º-800º/Ton	3700T
2400mm	9-120G/㎡	≈500KVA	650º-800º/Ton	5100T
3200mm	9-120G/㎡	≈800KVA	650º-800º/Ton	6600T
4000mm	9-120G/㎡	≈1000KVA	650º-800º/Ton	8800T
4800mm	9-120G/㎡	≈1200KVA	650º-800º/Ton	10000T

SSS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-100G/㎡	≈630KVA	650º-800º/Ton	5800T
2400mm	9-100G/㎡	≈1000KVA	650º-800º/Ton	7300T
3200mm	9-100G/㎡	≈1250KVA	650º-800º/Ton	10000T
4000mm	9-100G/㎡	≈1500KVA	650º-800º/Ton	12400T
4800mm	9-100G/㎡	≈1800KVA	650º-800º/Ton	14000T

Machine Model	Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size	18m-60m(L)10m-31m(W)10m-12m(H)
Raw Material required	PP(polypropylene),additives MFI/MFR:25-40g/10min(spunbonding process) MFI/MFR:800-2000g/10min (Melt-blowning process)
Effective width	1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed	150m/mn-550m/min
Transformer&Power consumption	Transformer require:200KVA-3000KVA Power consumption :500KWH/Ton-1400KWH/Ton
Output per year	1500 Tons - 10000 Tons
Products GSM	8gsm-250 gsm
Applications of products	Industrial:Shopping bags, furniture ,agriculture ,packageing,etc Medical:Surgical gown /cap /sheet /mask ,etc Hygiene: Diapers ,sanitary ,napking , etc.

Technical Parameters ( Standard Specification) of Our Nonwoven Machine
	Model No.	Gram Weight	MaxSpeed(m/min)	Capacity(T/Days)	Equipment Size
HH-S (single beam)	1.6m	9-250	150	4-6	18812m
	2.4m			5-7	181012m
	3.2m			8-10	181512m
HH-SS (single beam)	1.6m	10-120	350	8-10.5	451512m
	2.4m			10-15	451812m
	3.2m			13-20	452012m
HH-SSS (single beam)	1.6m	10-100	550	12-17	501512m
	2.4m			16-21	501812m
	3.2m			24-30	502012m

SMMMS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-80G/㎡	≈1600KVA	1700º-1900º/Ton	6200T
2400mm	9-80G/㎡	≈2000KVA	1700º-1900º/Ton	8000T
3200mm	9-80G/㎡	≈3000KVA	1700º-1900º/Ton	11000T
4200mm	9-80G/㎡	≈3500KVA	1700º-1900º/Ton	14000T
4800mm	9-80G/㎡	≈4000KVA	1700º-1900º/Ton	16000T
