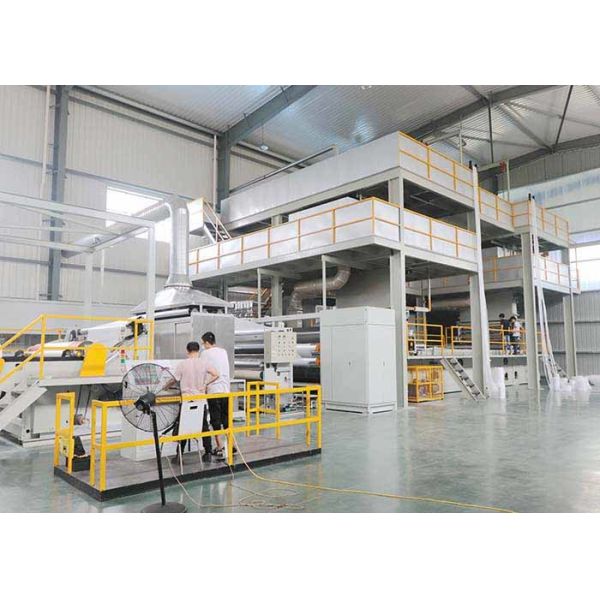

reliable high speed SSS PP Spunbond Nonwoven Fabric Making Machine For Disposable garments face mask use

Product Application

Sss nonwoven fabric

SSS Model

4800 SSS Model

Parts Of PP Non Woven Fabric Equipment :

Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

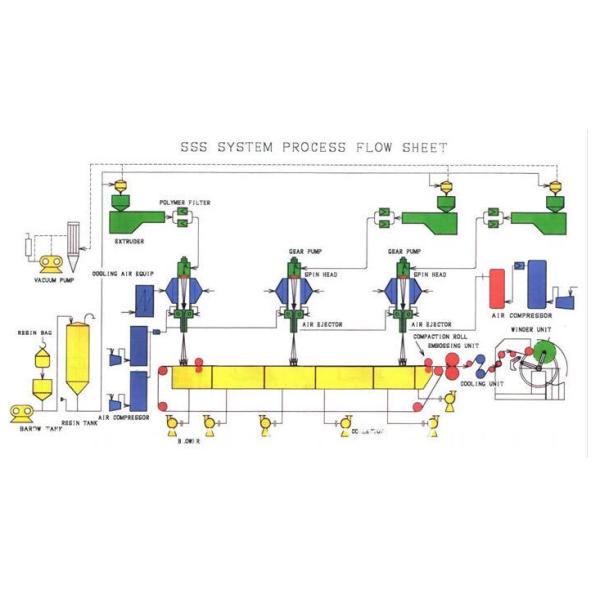

Spun-Laid Process And Technical Flow Chart:

Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product

Final product

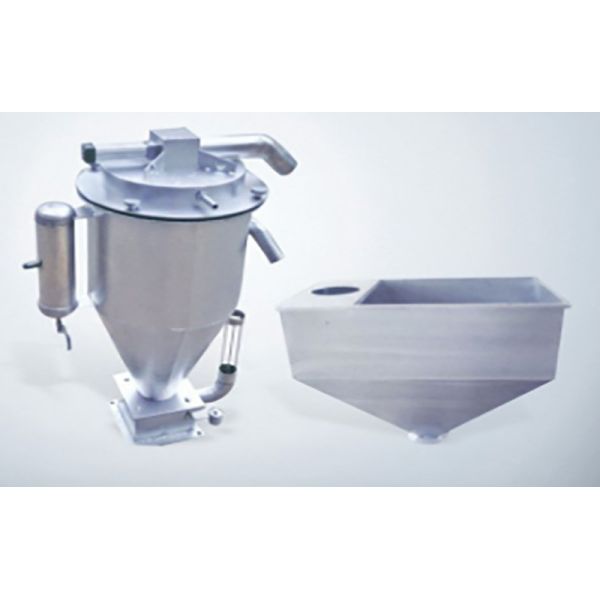

Name: Material Auto-Feeder

Brand:HHM

Original:China

Feeding capacity: 500kg/h for 1.6m , 800kg/h for 3.2m

Delivering distance:12m

Material:stainless steel

Fuction: Automatic sucking the PP materils to the non woven fabric making machine

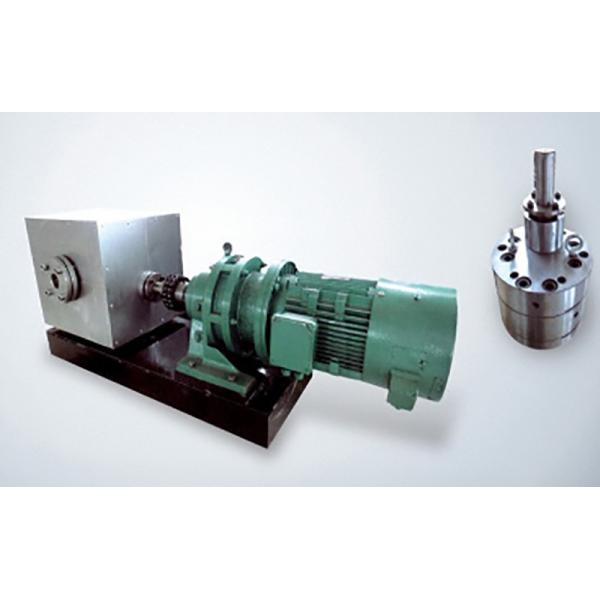

Metering Pump
Brand:HHM
Original:China
Supply volume:200cc for 1.6m, 200ccx2 for 3.2m

Rotate speed:5~35r/min

Max Pressure:35MPa

Temperature:≤330℃

Fuction: meter PP melt liquid

Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m

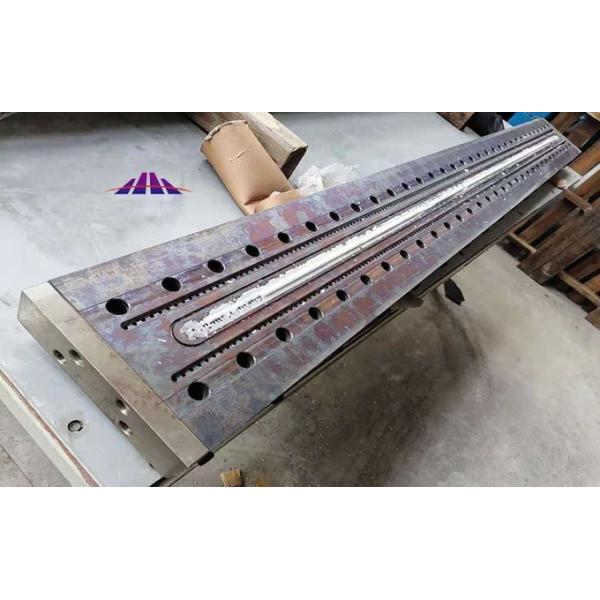

Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃

Fuction : for spining the PP flament.

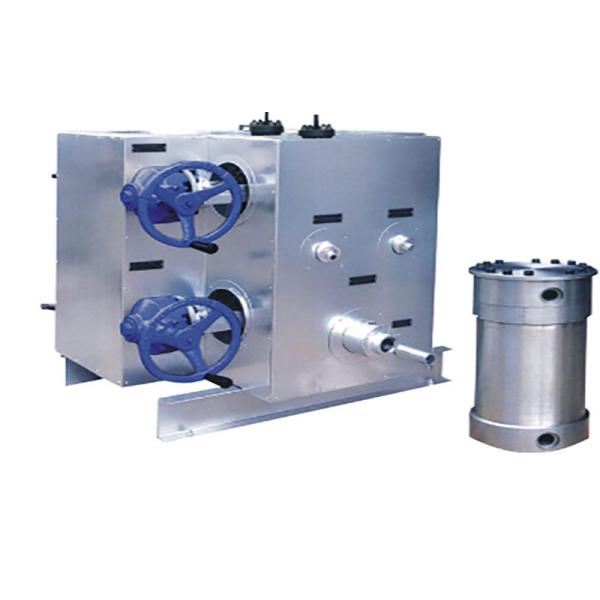

Name:Filter
Brand:HHM
Original: China
Type: Hydraulic or Candle filter

Filter precision: 45μm~60μm

Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

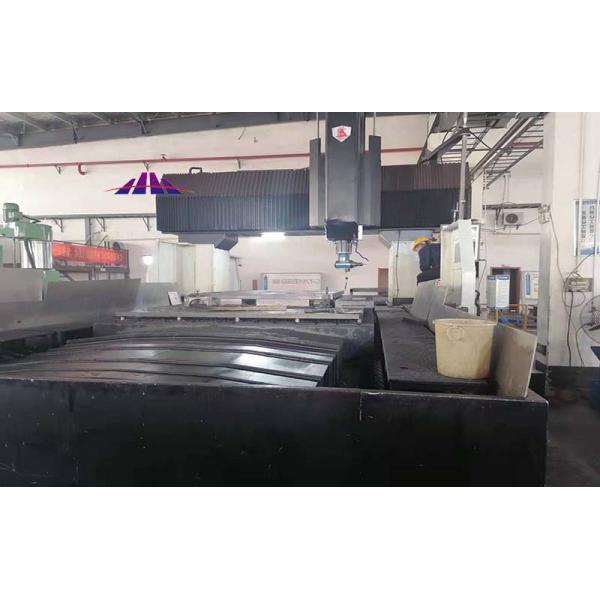

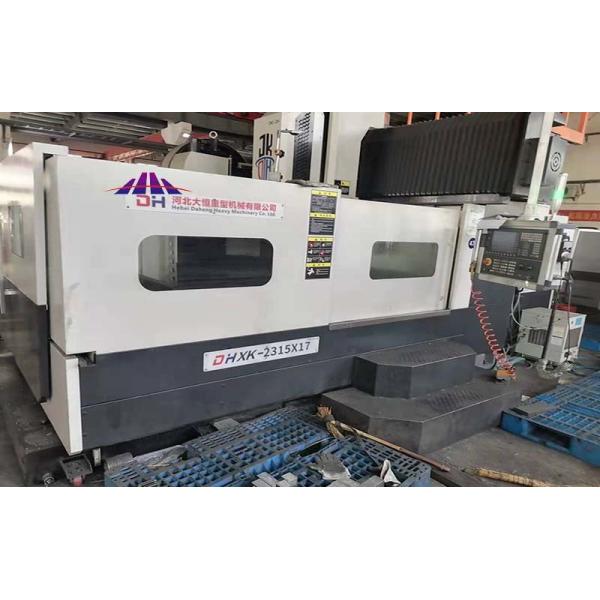

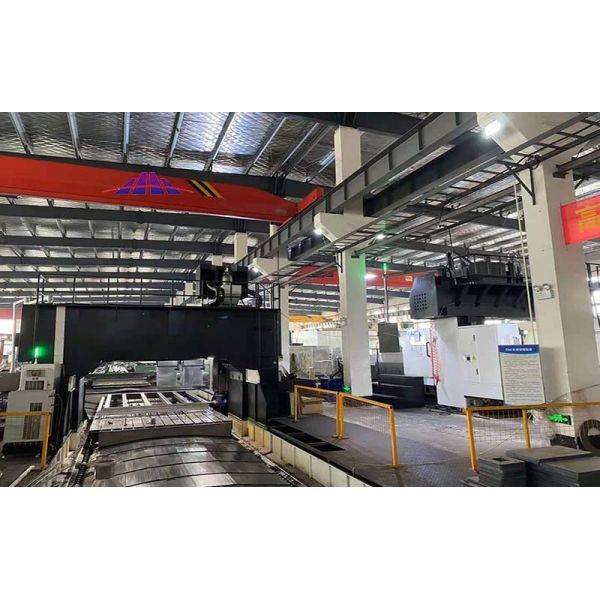

High - precisely CNC center

Exhibition Show

PACKING DETAIL

NUDE PACKING , WOODEN CASE IS OPTIONAL. CASE PACKING:CARDING MACHINE, LAPPER AND ELECTRIC BOXES WOODEN CASE PACKAGED.

OTHER MACHINES NUDE PACKAGING

FAQ (Frequently Asked Questions):

1.What are your advantages? Why should customer choose HHM as supplier?

1). Are you professional?

We are the professional factory and have been focusing only on spunbond and meltblown nonwoven machines.

2). How long are your history?

Our first machine was produced in 2010 in Jianshan factory. Our Chuzhou factory was established in 2018. Our first oversea project was in 2010.

3). What is your machines capacity?

Our spunbond machine has about 30-40% higher capacity than most other common suppliers.

4). Are your technology advanced?

We have upgraded to the 5th generation technology (other suppliers are still the 3rd generation) and have developed more than 20 items of our own core technology for nonwoven industry. We are planning to apply for some key patents protection certificates in year 2021.

5). How much filament fineness can be produced from your machines?

We can assure the filament fineness from our machine is ≤1.8D

6). Are your machines durable?

Our machines are strong structure with long term stable performance, different from many other suppliers' machines which can only keep good performance for short time even less than 1 year.

2.What are the widths of your machine?

We mainly produce 2.4m and 3.2m width machines. The 1.6m, 4.2m and custom widths are also available although with a bit longer delivery time.

3.What beams machine you produce?

We produce S, SS, SSS, SMS, SMMS, SSMS, SSMMS and M machines. S=spunbond, M= meltblown.

4.How long is your delivery time?

Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.

5.Do you offer installing service?

Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.

6.What is your warranty?

We offer 1-2 years warranty upon the different parts.
