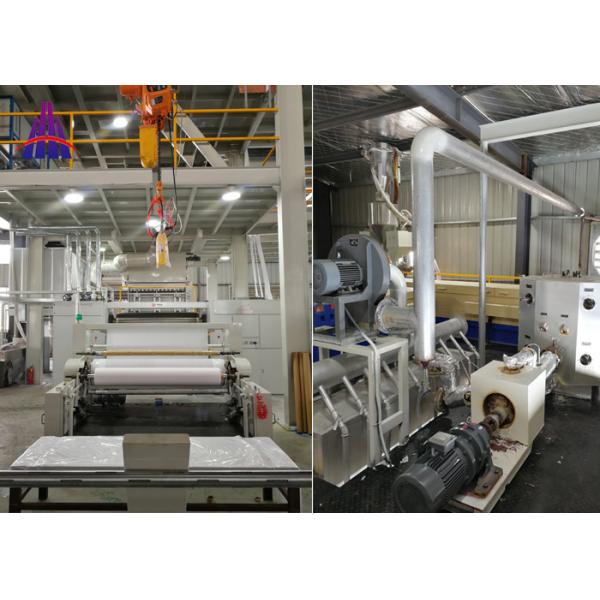

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film
PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film
PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film
PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film
PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film
PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
HHM - 1600 S
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wooden box packaged , machine wrapping with PE film keep cargo safe
Product :
single beam Non Woven Fabric Making Line
Screw :
double
Gsm :
9 - 250 g
width :
1.6 m 2.4 m 3.2 m
speed :
150 m / min
Power consumption :
650℃ - 700 ℃ / ton
Description

PP S Spunbond Non Woven Fabric Bag agriculture cover farmer film fabric Non Woven Fabric Making Line

pp Spunbond Non-woven Fabric maikng Machine s series

1600/2400/3200/4200 MM PP S Spunbond Non-Woven Fabric Production Machine

3200 S Model

Effective Width 3200mm
Weight Range 9 - 250 g / ㎡
Out put daily 8 - 10 ton
Machine speed ≦ 150 m / min
Transformer ≈ 360 KVA
Power Consumption 650º - 700 º / Ton

S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6S 1.6M 9-250G/M2 4-6Ton ≦150m/min ≈200KVA 650º-700º/Ton 18M*8M*12M
HHM-2.4S 2.4M 9-250G/M2 5-7Ton ≦150m/min ≈250KVA 650º-700º/Ton 18M*10M*12M
HHM-3.2S 3.2M 9-250G/M2 8-10Ton ≦150m/min ≈315KVA 650º-700º/Ton 18M*15M*12M
HHM-4.0S 4.0M 9-250G/M2 11-13Ton ≦150m/min ≈360KVA 650º-700º/Ton 18M*18M*12M
HHM-4.8S 4.8M 9-250G/M2 12-15Ton ≦150m/min ≈400KVA 650º-700º/Ton 18M*22M*12M

procees flow

Feeding(suction, dosing, and mixing) → Melt and extruding(with recycling extruder) → Filtering → Metering → Spinning → Quenching → Air drawing → Forming → Calendering → Winding → Slitting → Product.

Spunbond nonwoven production line componests:

Edge material screw and recovery device →Screw extruder → Filter → Measureing pump → Monomer suction device → spinning box ( Enka / Carson Spinneret ) → Cooling air box → stretching device → Netting machine → hot rolling mill → winding machine → slitting Machine .

Flow chart of spunbond production process .

Additives (recycling of scraps )→ Raw material → Melt extrusion → Filtration → Measurement → Spinning → cooling → Stretching → Netting → hot Rolling → Rewinding → Slitting → Finished Product

Main parts introduce

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

working process

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

CNC Center keep machinery parts precisely beyond customer request

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

.Packaging & Delivery

Packaging Details
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged.
Other machines nude packaging.

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

PP Spunbond Nonwoven Fabric Making Machine 250gsm For Farm Film

Why choose US

1. High standard nonwoven machine specification.

2. Free inspection invitation before delivery.

3. your order safe and your money is safe.

4. Free door to door engineering service in 24 month.

5. CE Certification and ISO:9001 management system.
