PP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine
PP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine
PP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine
PP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
1.6 S 2.4 S 3.2 S 4.8 S
Certification :
CE
Place of Origin :
Chuzhou
MOQ :
1
Price :
1000000$/set
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wooden case
Machine Name :
Non Woven Fabric Making Machine 2.4 s
Material :
PP polypropylene
GSM Range :
10-250gsm
Service :
engineer over sea or on line service provid
Certificate :
CE
Feature :
Eco -friendly tear resistant
Width :
2400
Out put / year :
2200 Ton
Description

pp spunbond fully automatic high speed Non Woven Fabric Making Machine

The 2400 single non woven machery is suitable to the production of nonwoven fabric by spun-laid and hot-rolled reinforcement.With PP as its main material ; color master batch, antioxidant,fire retardant as its additives to produce nonwoven fabric with different colors and different elements to fit the needs of different usages.This machine is able to produce S spunbonded nonwoven fabric


HHM 2400 m S Single beam fabric making line date

Width 2400 M
Gsm 9 - 250 gsm
Output per day 5 - 7 Ton
Machine Speed ≦150 m / min
Transformer ≈ 200 KVA
Power Consumption 600º - 700º / Ton
Machine Size 18 * 10 *12 M

S Model

Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 1800T 2200T 3300T 4400T 5100T
GMS Range(g/㎡) 9-250 9-250 9-250 9-250 9-250
Max.speed(m/min) 150 150 150 150 150

Spunbond making line cataloge

Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6S 1.6M 9-250G/M2 4-6Ton ≦150m/min ≈200KVA 650º-700º/Ton 18M*8M*12M
HHM-2.4S 2.4M 9-250G/M2 5-7Ton ≦150m/min ≈250KVA 650º-700º/Ton 18M*10M*12M
HHM-3.2S 3.2M 9-250G/M2 8-10Ton ≦150m/min ≈315KVA 650º-700º/Ton 18M*15M*12M
HHM-4.0S 4.0M 9-250G/M2 11-13Ton ≦150m/min ≈360KVA 650º-700º/Ton 18M*18M*12M
HHM-4.8S 4.8M 9-250G/M2 12-15Ton ≦150m/min ≈400KVA 650º-700º/Ton 18M*22M*12M

Application:

This is filament polypropylene fiber spun-bonded nonwoven fabrics equipment. Its raw material is polypropylene (PP), take the principle of spinning man-made fibers, during polymer filature, a continuous filament is extended into fiber net, which is finished by mechanical hot pressing. The machine assembly we adopt is now advanced veneer integer slot airflow draw technology, the whole process from material feeding to cloth output is automatic control, short production flow, high working efficiency.The nonwoven fabrics we produce has high strength, good softness, innocuity, bacterium-proof, corrosion resistance, high-level draw strength and elongation rate, They are widely used for dress, decoration materials, medical sanitation materials, daily life products and in the industrials, agriculture fields. In addition, this production line can produce non-woven fabrics of a different color, different grams, different lines according to user''s requirements.

Technical Data

Model HHM-1.6 SS
Effective Width 1.6 M
Weight Range 10-120 G/M2
Output per Day 8-10.5 Ton
Machine Speed < 300 m/ min
Transformer Capacity ≈315 KV
Power Consumption 650º-700º / Ton
Machine Size 30 M*10 M * 12 M

Process diagram:

This is the process flow chart of spunbonded non-woven fabric line. The whole assembly line has clear structure and perfect

function. The role and function of each link are clearly visible.

PP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine

Advannced CNC Tools

PP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine

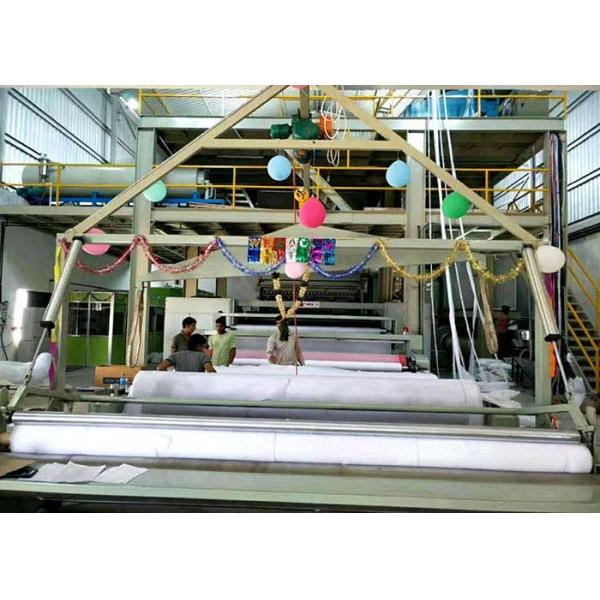

Nonwoven line in job side

PP Spunbond Fully Automatic High Speed Non Woven Fabric Making MachinePP Spunbond Fully Automatic High Speed Non Woven Fabric Making Machine

Our service

1. We provide pre-sales, sales and after sales service, especially one year of free maintenance warranty.

2. If there are problems with the machine parts, customer can take pictures and send to us by email to explain the situation, we will help to solve
it on line or by email as soon as possible.

3. If there are big problems of the machine caused by wrong operation, we will arrange professional engineer to solve the problem in customer's
factory, but all the cost including visa, air fare and accommodations must be paid by customer.
