2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV
2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV
2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV
2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV
2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV
2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
HHM - 2400 S
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wooden box packaged , machine wrapping with PE film keep cargo safe
Product :
single 2.4 m beam Non Woven Fabric Making Line
Effective Width :
2400 mm
Gsm :
9 - 250 g
annual output :
2200 Ton
Max speed :
150 m / min
Power consumption :
650℃ - 700 ℃ / ton
Size :
18 *10 12 m
Warranty :
one year
Description

PP Spunbond Non Woven Fabric Bag anti-pull anti UV Non Woven Fabric Making Line

PP Spunbond Non Woven Fabric Making Machine

Non woven fabric manufacturing machine
Our company specializes in the production equipment of non-woven fabric and polypropylene non-woven fabric production line with width of 1.6m/2.4m/3.2m. The product takes polypropylene as raw material and goes through continuous production processes such as high-temperature melting, spinning into mesh, hot rolling bonding, cutting and winding.
Non woven fabric manufacturing machine

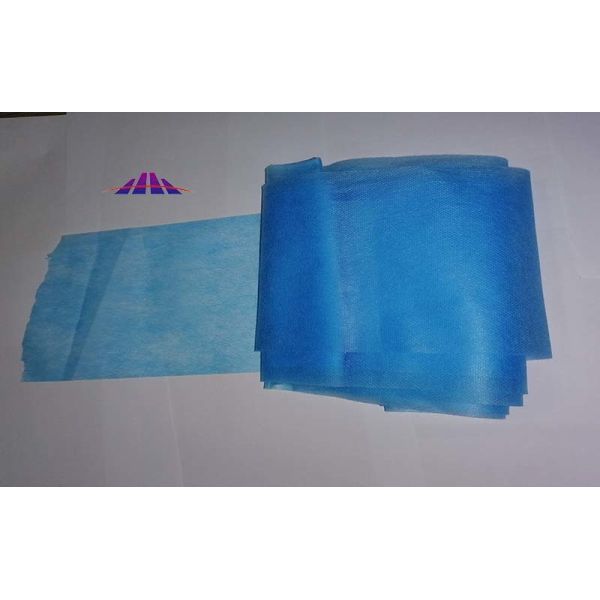

1. Weight: 10-260 g / m2.
2. Width: 1.6-3.2m.
3. Color: according to the version color produced by the customer.
4. Provide five non-woven products: dot pattern, cross pattern, Canberra pattern, mouth pattern, small dot pattern, triangle pattern and plastic film.
Non woven machine features:
(1) High strength, small difference between vertical and horizontal, strong strength;
(2) Acidic, non-toxic, no radiation, harmless to human physiology;
(3) Excellent air permeability;
(4) Masterbatch dyeing never fades.

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

2400 S Model

Effective Width 2400mm
Weight Range 9 - 250 g / ㎡
Out put daily 8 - 10 ton
Machine speed ≦ 150 m / min
Transformer ≈ 250 KVA
Power Consumption 650º - 700 º / Ton

S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T

Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6S 1.6M 9-250G/M2 4-6Ton ≦150m/min ≈200KVA 650º-700º/Ton 18M*8M*12M
HHM-2.4S 2.4M 9-250G/M2 5-7Ton ≦150m/min ≈250KVA 650º-700º/Ton 18M*10M*12M
HHM-3.2S 3.2M 9-250G/M2 8-10Ton ≦150m/min ≈315KVA 650º-700º/Ton 18M*15M*12M
HHM-4.0S 4.0M 9-250G/M2 11-13Ton ≦150m/min ≈360KVA 650º-700º/Ton 18M*18M*12M
HHM-4.8S 4.8M 9-250G/M2 12-15Ton ≦150m/min ≈400KVA 650º-700º/Ton 18M*22M*12M

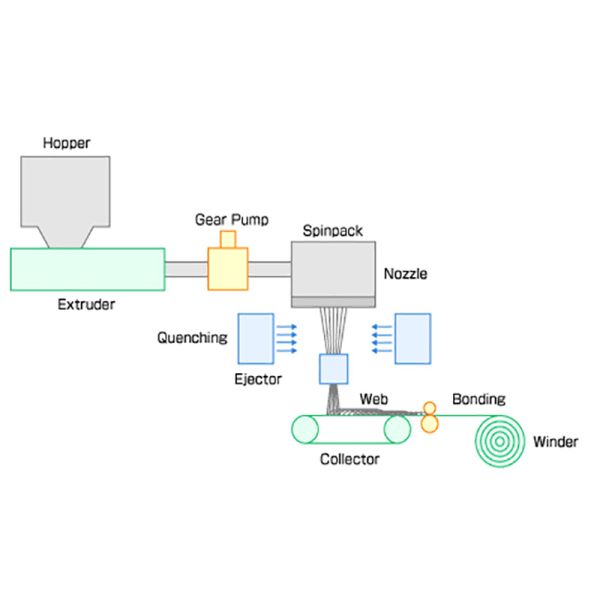

procees flow

Feeding(suction, dosing, and mixing) → Melt and extruding(with recycling extruder) → Filtering → Metering → Spinning → Quenching → Air drawing → Forming → Calendering → Winding → Slitting → Product.

Spunbond nonwoven production line componests:

Edge material screw and recovery device →Screw extruder → Filter → Measureing pump → Monomer suction device → spinning box ( Enka / Carson Spinneret ) → Cooling air box → stretching device → Netting machine → hot rolling mill → winding machine → slitting Machine .

Flow chart of spunbond production process .

Additives (recycling of scraps )→ Raw material → Melt extrusion → Filtration → Measurement → Spinning → cooling → Stretching → Netting → hot Rolling → Rewinding → Slitting → Finished Product

Main parts introduce

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

working process

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

CNC Center keep machinery parts precisely beyond customer request

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

Exhibition show

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

.Packaging & Delivery

Packaging Details
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged.
Other machines nude packaging.

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

Why choose US

1. High standard nonwoven machine specification.

2. Free inspection invitation before delivery.

3. your order safe and your money is safe.

4. Free door to door engineering service in 24 month.

5. CE Certification and ISO:9001 management system.
