smms non woven fabric character

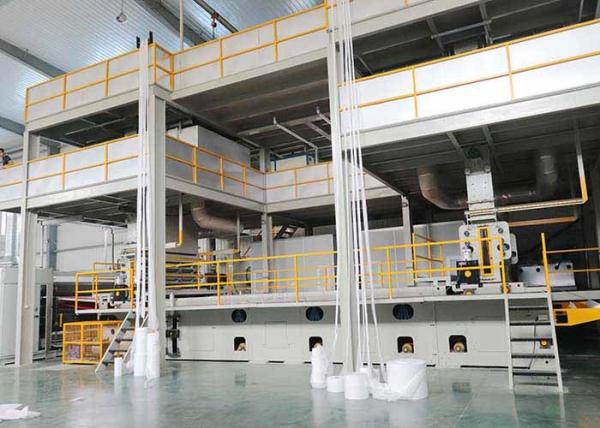

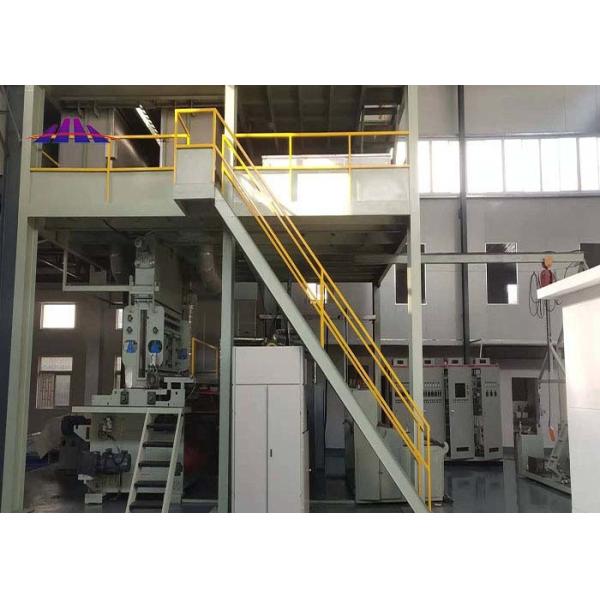

1600 SMMS Model

Product application

Technical Parameters

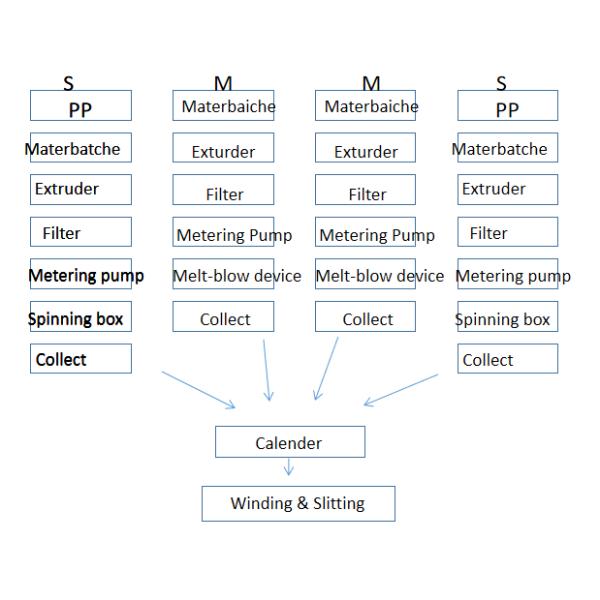

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Main parts of non woven system

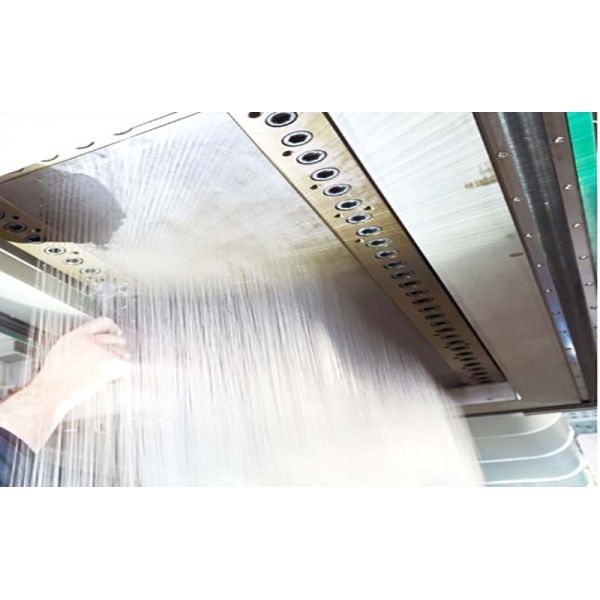

The role of spinneret is to transform viscous flow of polymer melt or solution into small section with special section, and solidify through solidified medium, such as air or solidification bath. It is used for the uniform exit of the tow.

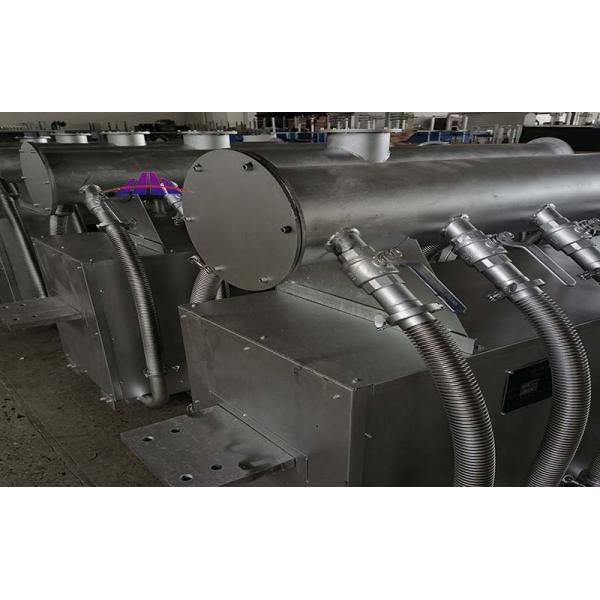

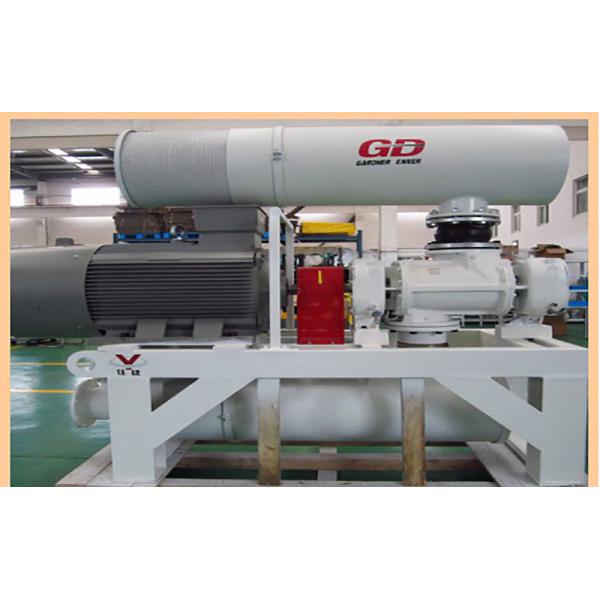

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.

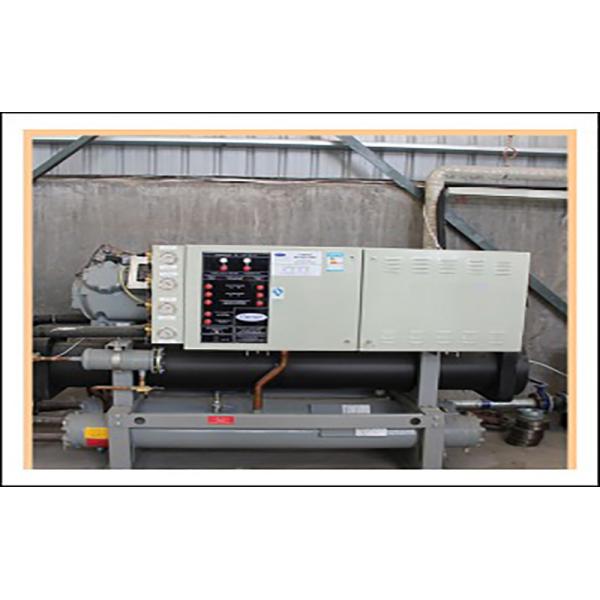

Control the pressure oil temperature of oil pressure system, stabilize oil temperature and oil pressure, prolong oil use time, improve the efficiency of mechanical lubrication and reduce wear. Freeze dry air to guarantee the quality of the product.

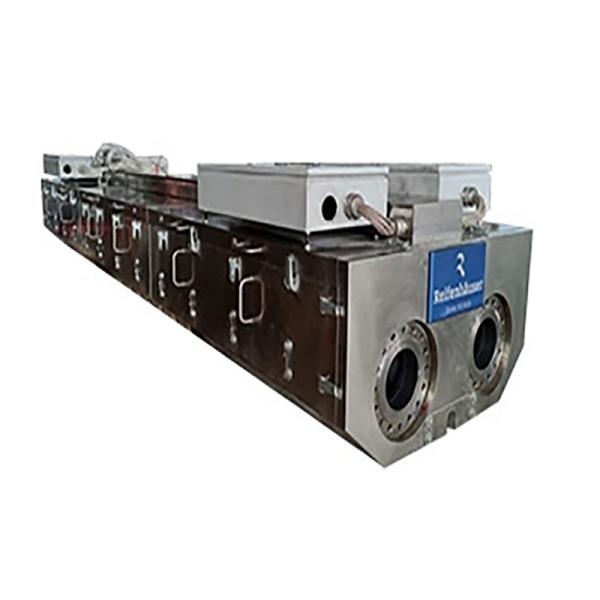

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;

Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;

Spinning Box uses hot oil for heating and insulation in cycle with reasonable structure, attractive appearance and low power consumption. It also charaterizes that the thickness of the fiber is uniform and the feeling of monofilament is fine without brokrn and rough warp, etc.

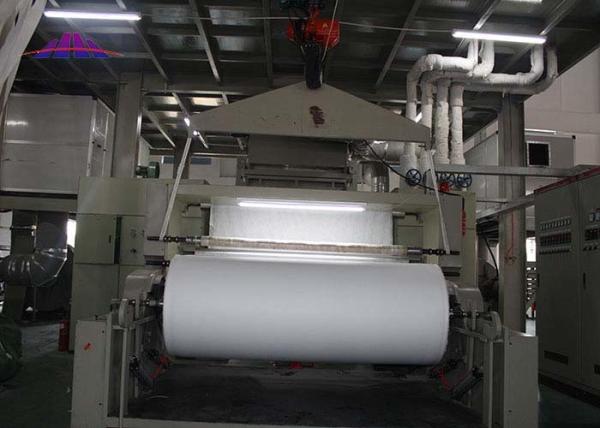

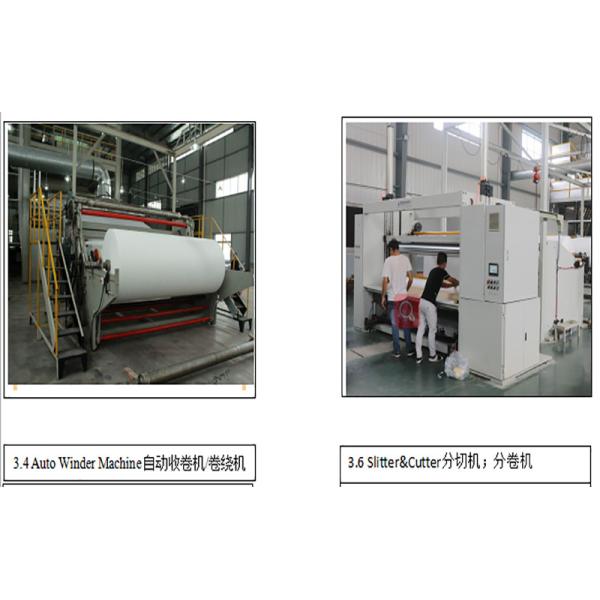

.Auto Winder

Machin

The main function is to wrap the hot rolled fabric into a certain volume."

Slitter&Cutter

The main function for a large package of cloth cutting according to customer specifications, to meet the customer's length, width, volume weight requirements.

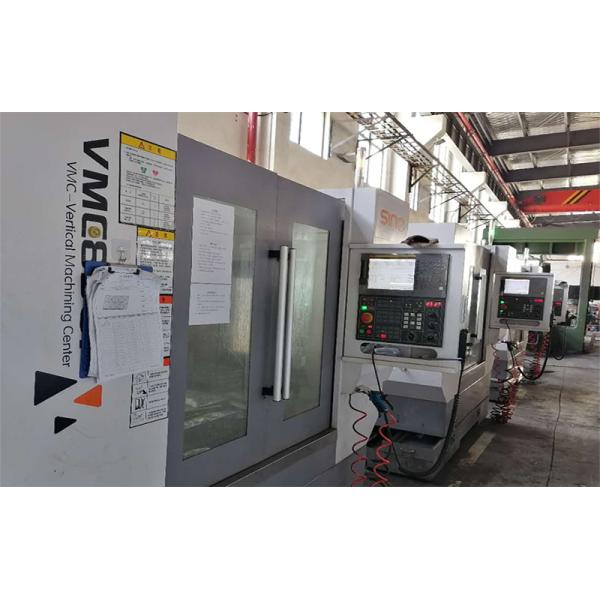

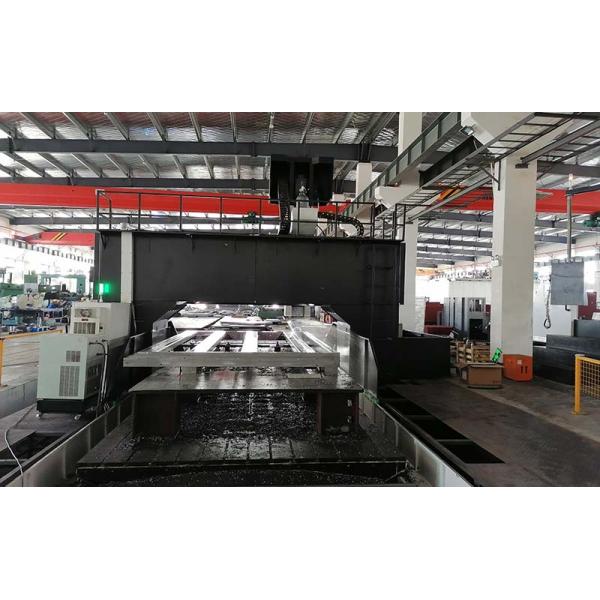

Precisely CNC center hold machining part beyond customer request

Exhibition Show with customer

Shipment and packing

Large parts wrapped in several turns of films, small parts boxed in a wooden crate, each
packaged is numbered and packed to easy loading/unloading and installation

FAQ

Q1: What made you choose HH?
A: HH has a team of professional engineers directly to your factory to install our spun-bonded
non-woven fabric making machine and melt-blown machine which high-speed, stable, and reliable
to help you quickly establish your own production line.

Q2: Are you a manufacturer?

A: Yes, we are a professional manufacturer of nonwoven machinery. We also had established
our own trading company to expand our foreign market business and provided our customer with
better service.

Q3: Do you accept OEM?

A: Of course we are.

Q4: How long is the warranty period?

A: We provide 1 year warranty period.

Q5: What's your packing?

A: Large parts wrapped in several turns of films, small parts boxed in a wooden crate, each
packaged is numbered and packed to easy loading/unloading and installation.

Q6: Can customers send workers to your place to study the operation of the machine?

A: Of course, you are warmly welcome.
