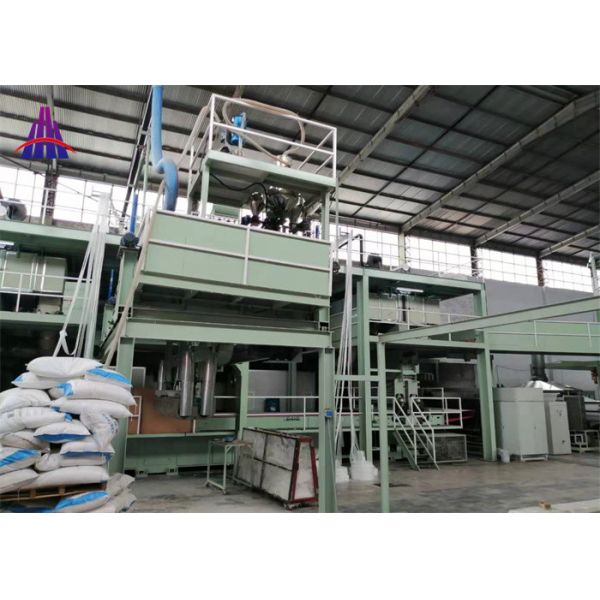

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE
High Speed PP Melt Blown Non Woven Fabric Making Machine With CE
High Speed PP Melt Blown Non Woven Fabric Making Machine With CE
High Speed PP Melt Blown Non Woven Fabric Making Machine With CE
High Speed PP Melt Blown Non Woven Fabric Making Machine With CE
High Speed PP Melt Blown Non Woven Fabric Making Machine With CE
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
SMS SMMS SSMMS S SS SSS
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wood box packaged , machine wrapping with PE film keep cargo safe
Model :
Meltblown Fabric Production Line SMS SMMS
Specition :
1.6 - 4.8 m
gsm :
9 - 80 g
certificate :
CE ISO 900
Weight :
100 -200 t
Size :
60 *31 *12 M
Description

High Speed PP S Ss SSS SMS SMMS Smmss Ssmms PLA Pet Spunbond and Meltblown Fabric Production Line

Introduce machine

This machine is suitable for producing PP spunbonded non-woven fabric. PP chips are imported as raw materials, and packaged, warehoused and delivered after extrusion, spinning, quenching, closed air stretching, web forming, calendering, winding and cutting as required.

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

1 SSMMS SMMS SMS DATA SHEET

Model Effective Width Weight Range Output per day Machine Speed Transformer Power Consumption Machine Size
HHM-1.6SMMSS 1.6M 9-80G 13-18Ton ≦600m/min ≈1600KVA 1700º-1900º/Ton 60M*20M*12M
HHM-2.4SMMSS 2.4M 9-80G 17-23Ton ≦600m/min ≈2000KVA 1700º-1900º/Ton 60M*23M*12M
HHM-3.2SMMSS 3.2M 9-80G 25-31Ton ≦600m/min ≈3000KVA 1700º-1900º/Ton 60M*25M*12M
HHM-4.2SMMSS 4.2M 9-80G 30-40Ton ≦600m/min ≈3500KVA 1700º-1900º/Ton 60M*28M*12M
HHM-4.8SMMSS 4.8M 9-80G 32-45Ton ≦600m/min ≈4000KVA 1700º-1900º/Ton 60M*31M*12M

2. Process flow


Additive (recycle edge)
↓
Material → melting and extruding → filtering → metering → spinning → quenching → air-flow drawing → web forming → calendaring → winding and slitting

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

4 Key component

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

Name: Spinning BoxOrificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃

Fuction : for spining the PP flament.

Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ￠0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

Calandr machine where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

SLitter cutter & Winder machine is used to have made the non woven finished products into the packaging equipment

5 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

6 Shipping and packing

Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

High Speed PP Melt Blown Non Woven Fabric Making Machine With CE

7 Why choose us?


1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
