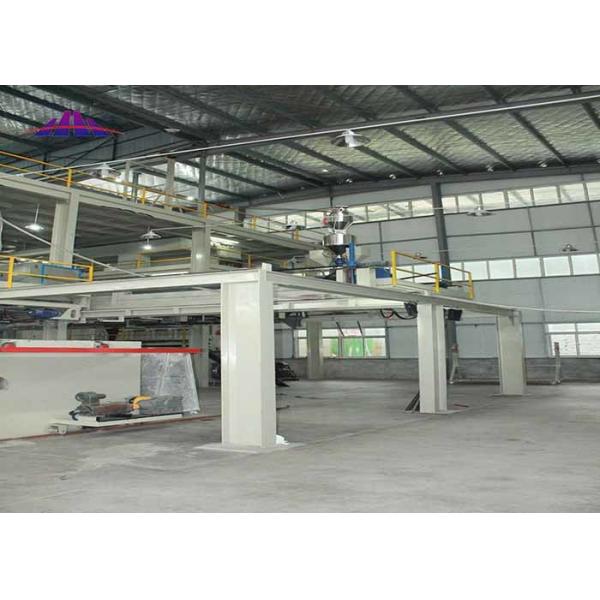

Flexible design SXS SXXS SMXS SMXXS Spun Bond Meltblown Face Mask NonwovenFabric Meltblown Fabric Production line

The SXS SXXS SMXS SMXXS ( X means the position for upgrading by installing S or M beam in the future ) are also popular for many customers .

Technical Advantages

1) The whole line is well-structured and easy to operate.
2) The whole line is highly automated.
3) Control elements are of well-know make, high performance and reliable technologies.
4) The whole line are controlled by PLC and operated with touch-screen.
5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Spinning die-head adopts design optimization of flow models of coat-hanger type, equality distribution of melt, balance pressure
Non-broken or combine fibre no holes no blind angle, and fastly
Color transition. Rolling mill adopts DC motor universal joint transfer,
Roller adopts technology of Ultra Laser Drilling to ensure the same of the temperature,
No Hair-in filling. The equipment adopts cutting on line, automatic low winding technology, in order to serve
Resource, and improve the production efficiency.

1 SSMMS SMMS SMS DATA SHEET

ssmms data

smms data

2. Process flow

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Additive (recycle edge)
↓
Material → melting and extruding → filtering → metering → spinning → quenching → air-flow drawing → web forming → calendaring → winding and slitting

3 Key component

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m

Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

Name: Spinning Box Orificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃

Fuction : for spining the PP flament.

Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.

.

SLitter cutter & Winder machine is used to have made the non woven finished products into the packaging equipment

4 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .

5 Shipping and packing

Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.

6 Why choose us?

1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
