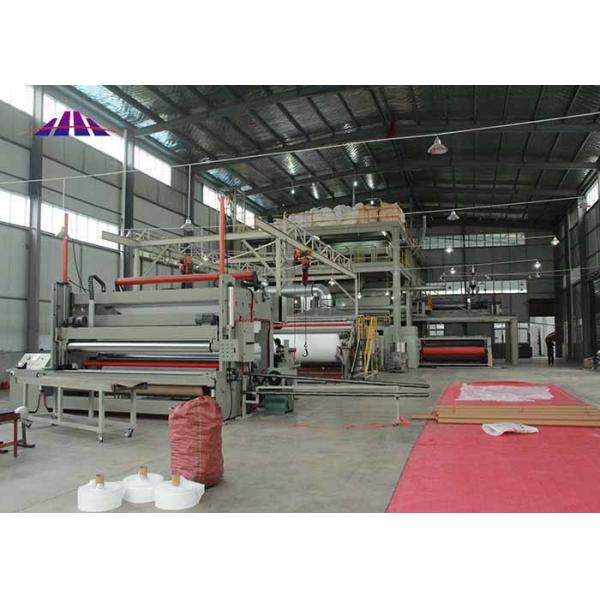

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask
SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask
SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask
SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask
SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask
SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
SMS SMMS SSMMS S SS SSS
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wood box packaged , machine wrapping with PE film keep cargo safe
Product Model :
2400 Meltblown Fabric Production Line
Screw :
double
total Power :
3000 - 4000 KVA
certificate :
CE ISO 900
Specification :
1. 6 - 4.8 M
Service :
dedicated engineer on line support
Motor :
Siemens
Bearing :
SKF
Description

SSMMS 2400mm Spun Bond Meltblown Face Mask NonwovenFabric Meltblown Fabric Production line

This machine is suitable for spinning and hot rolling reinforced nonwovens. Polypropylene as the main raw material; Nonwovens with different colors and components are produced by using color masterbatch, antioxidant and flame retardant as additives to meet the needs of different applications. It can produce ssmms melt spun nonwovens, SMMs melt spun nonwovens, SMS melt spun nonwovens, SSS spunbonded nonwovens, SS spunbonded nonwovens and M melt blown nonwovens
Technical advantages
1) The whole production line has good structure and convenient operation.
2) The whole production line is highly automated.
3) The control components are well-known brands with excellent performance and reliable technology.
4) The whole line is controlled by PLC and operated by touch screen.

5) The configuration of host and auxiliary equipment can be specially designed and adjusted according to customer requirements.

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line

Effective

Width(mm)

 Raw Materials

Max.Speed

(Tons/year)

GSM Range

(g/sq.m)

Daily Capacity

(Tons/Day)

Annual Capacity

(Tons/year)
2400

Polypropylene(PP)

 600 9-80 23 8400
3200 31 11400
4800 40 14600
The whole line can CUSOMIZED as your needs .

This polypropylene (PP) spunbonded nonwoven fabric production line has advantages of superior performance, beautiful color, and good quality. It can form a fibre web symmetrically and is complete in types. It can also add recycled material and stuffing to reduce the cost of products.

Introduce:
Spinning die-head adopts design optimization of flow models of coat-hanger type, equality distribution of melt, balance pressure
Non-broken or combine fibre no holes no blind angle, and fastly
Color transition. Rolling mill adopts DC motor universal joint transfer,
Roller adopts technology of Ultra Laser Drilling to ensure the same of the temperature,
No Hair-in filling. The equipment adopts cutting on line, automatic low winding technology, in order to serve
Resource, and improve the production efficiency.

Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)
Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton
Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.

1 SSMMS SMMS SMS DATA SHEET

ssmms data

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T

smms data

Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 4000T 6200T 5400T 10500T 12700T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 450 450 450 450 450


2. Process flow

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product


Additive (recycle edge)
↓
Material → melting and extruding → filtering → metering → spinning → quenching → air-flow drawing → web forming → calendaring → winding and slitting

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

3 Key component

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m

Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heatingSSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

Name: Spinning Box Orificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃

Fuction : for spining the PP flament.

Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ￠0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

.

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

SLitter cutter & Winder machine is used to have made the non woven finished products into the packaging equipment

4 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

5 Shipping and packing

Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

SSMMS 2400mm Spun Bond Nonwoven Meltblown Fabric Machine For Face Mask

6 Why choose us?


1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
