600m/Min 80gsm Meltblown Fabric Production Line High Safety
600m/Min 80gsm Meltblown Fabric Production Line High Safety
600m/Min 80gsm Meltblown Fabric Production Line High Safety
600m/Min 80gsm Meltblown Fabric Production Line High Safety
600m/Min 80gsm Meltblown Fabric Production Line High Safety
600m/Min 80gsm Meltblown Fabric Production Line High Safety
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
SMS SMMS SSMMS S SS SSS
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
For detailed talk
Delivery Time :
For detailed talk
Packaging Details :
wood box packaged , machine wrapping with PE film keep cargo safe
Model :
Meltblown Fabric Production Line SMS SMMS
Specition :
1.6 - 4.8 m
gsm :
9 - 80 g
certificate :
CE ISO 900
Weight :
100 -200 t
Size :
60 *31 *12 M
Description

Meltblown Spunbond Composite Nonwoven Fabric Machine SMS SMMS Ssms Ssmms Meltblown Fabric Production Line

Non-woven Machinery Application

Hospital and protective equipment: surgical mask, surgical curtain, surgical mask, disposable clothing, surgical curtain, shoe covers, etc. Combined with other types of non-woven fabrics
Sanitary materials: baby diapers, adult incontinence pads, female hygiene pads, other cleaning applications.
Technical engineering: civil engineering, construction engineering, agricultural field, automobile field, etc.
Packaging products: shopping bags, rice bags, tea bags, clothing packaging, etc.
Home products: spring wrapped cloth, bedding, seat supplies, etc.
Paper composite materials and other work protection, protective clothing, gas masks, etc
600m/Min 80gsm Meltblown Fabric Production Line High Safety

1 SSMMS SMMS SMS DATA SHEET

Production line parameters(m) Weight ( g / m2)

Max speed

( m / min )

Production

Capacity ( t / y )
2.4 8 -150 600 10000
3.2 13000
4.2 16500

2. Process flow


Additive (recycle edge)
↓
Material → melting and extruding → filtering → metering → spinning → quenching → air-flow drawing → web forming → calendaring → winding and slitting

600m/Min 80gsm Meltblown Fabric Production Line High Safety

4 Key component

600m/Min 80gsm Meltblown Fabric Production Line High Safety

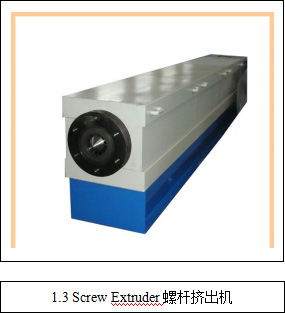

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m

600m/Min 80gsm Meltblown Fabric Production Line High Safety

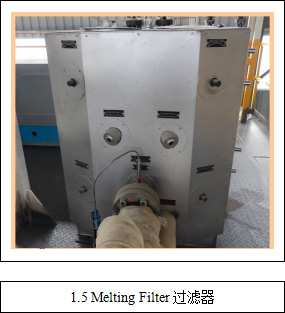

Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

600m/Min 80gsm Meltblown Fabric Production Line High Safety

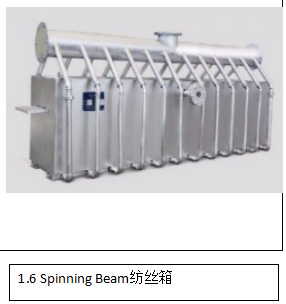

Name: Spinning BoxOrificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃

Fuction : for spining the PP flament.

Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ￠0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow

600m/Min 80gsm Meltblown Fabric Production Line High Safety

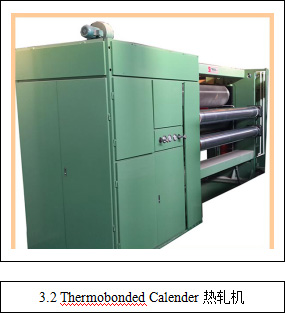

Calandr machine where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

600m/Min 80gsm Meltblown Fabric Production Line High Safety

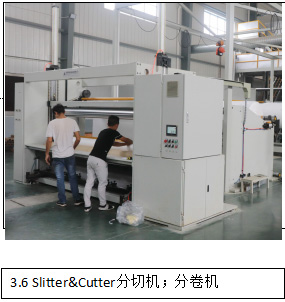

SLitter cutter & Winder machine is used to have made the non woven finished products into the packaging equipment

5 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .

600m/Min 80gsm Meltblown Fabric Production Line High Safety

600m/Min 80gsm Meltblown Fabric Production Line High Safety

600m/Min 80gsm Meltblown Fabric Production Line High Safety

6 Shipping and packing

Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.

600m/Min 80gsm Meltblown Fabric Production Line High Safety

600m/Min 80gsm Meltblown Fabric Production Line High Safety

600m/Min 80gsm Meltblown Fabric Production Line High Safety
