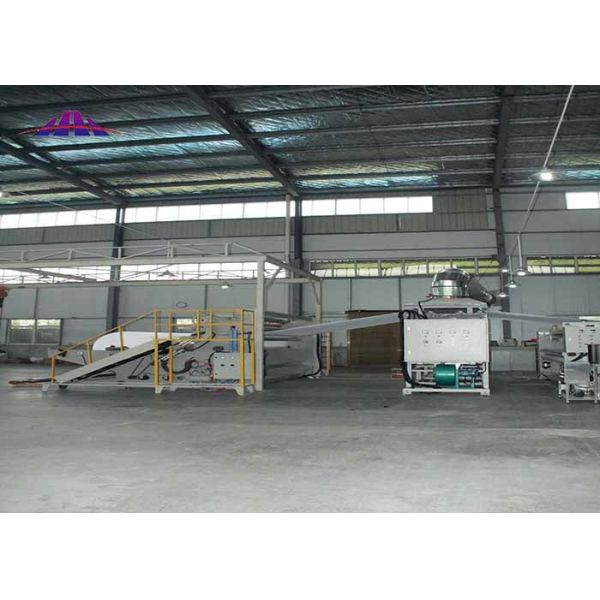

2.4m Medical Melt Blown Cloth Production Line High Yield
2.4m Medical Melt Blown Cloth Production Line High Yield
2.4m Medical Melt Blown Cloth Production Line High Yield
2.4m Medical Melt Blown Cloth Production Line High Yield
2.4m Medical Melt Blown Cloth Production Line High Yield
2.4m Medical Melt Blown Cloth Production Line High Yield
Specifications
Brand Name :
Chuzhou HH non-woven
Model Number :
HH Meltblown
Certification :
CE
Place of Origin :
Chuzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3 line / months
Delivery Time :
90 - 150 days
Packaging Details :
components wood box packaged , machine wrapping with PE film keep cargo safe
Product :
high yield Meltblown fabric production line
advantage :
high yield
automatic grade :
totally automatic
Speed :
10 - 70 M / Min
transformer :
600 KVA
leading time :
around 100 days
core component :
PLC , spinneret die , booster
port :
Nanjing or Shanghai
Description

high yield Meltblown fabric production line for mask filtration hygiene medical

Knowledge of meltblown machine
Installation: pre tighten the cleaned spinneret and spinneret with bolts. Check the gap between spinneret and spinneret with feeler gauge. The general clearance is adjusted to 0.8-1.2mm; Tighten the bolts during adjustment. Finally, adjust the gap between the air knife and the spinnerets on both sides to one, and lock all bolts. Replace the filter screen and sealing ring. The spinneret assembly is installed on the die.

.

2.4m Medical Melt Blown Cloth Production Line High Yield

Technical Parameters

Model HHM-1.6m HHM-2.4M HHM-3.2M
Effective Width 1.6 M 2.4 M 3.2 M
Weight Range 18-300 G/㎡ 18-300 G/㎡ 18-300 G/㎡
Out put day 2-3 Ton 3-4 Ton 4.5-5 Ton
Machine Speed ≦70 m/min ≦70 m/min ≦70 m/min
Power Consumption 3000º-3500º/Ton 3000º-3500º/Ton 3000º-3500º/Ton
Machine Size(L*W*H) 18M*10M*10M 18M*11M*10M 18M*13M*10M

Meltblown Making Machine Series

Model

Product Width

(mm)

GSM Range

( g / ㎡ )

Capacity

(kg /day )

Melt blown

(BFE&PFE)
HHM- 1600 1600 15 - 300 200 - 300

BFE 99+

PFE 95+
HHM - 2400 2400 300 - 400
HHM - 3200 3200 450 - 500

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

2.4m Medical Melt Blown Cloth Production Line High Yield

Meltblown non-woven fabric production line components:

Screw extruder---->filter---->metering pump---->heating system---->melt blown box (Kasen)---->netting machine---- >Rewind

(1) Receiving networked device:

Line speed: up to 50m/min

Meltblown receiving adjustment range: 200mm

Installation form: It can be moved horizontally, which is convenient for installation, debugging and maintenance

Driving rate: 1.1KW

(2) Suction net fan:

Power: 75KW,

4. Hot air heating system

(1) Atlas air compressor

Boost pressure: 0.7MPa

Power: 120KW~200KW

(2) Air heater

Heating power: 220KW-240KW

Material of tank and pipeline: stainless steel 304

Insulation form: stainless steel seal outside the insulation layer

5. Electret system.

6. Rack platform device:

Steel structure, easy to disassemble, firm and reliable, including stairs, etc.

7. Die head heating power: about 70kw

8. Electrical control box

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

High precisely CNC center

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

Exhibition Show

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

Packing & shipping

Electrical parts small parts each numbered put in carton or wooden box , large scale machine will nude wrarping with PE film fixed in container keep cargo safe .

2.4m Medical Melt Blown Cloth Production Line High Yield

2.4m Medical Melt Blown Cloth Production Line High Yield

Our Service

1.Pre-sale Service
Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.

2.After-sales Service
Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
