Hyno Energy. Honda Accord Hybrid Battery (2005-2007). 6500mAh 144V, Competent Performance

If we use 200 cells as an average per pack. For every 1 million hybrids, there are 200 million individual NiMH cells. Multiply that by seven, and the world has a supply of 1.4 billion cells in use. And we are adding over 250 million cells per year.

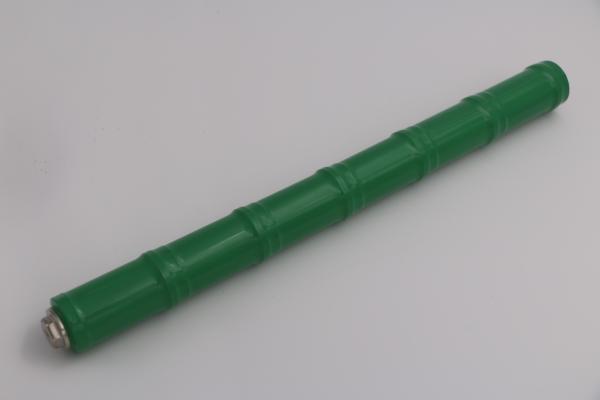

Hybrid car batteries consist of many cells that are connected in series and packed into a container (plastic or metal). These are called modules, cassettes or sticks depending on the manufacturer. Many modules are packaged into “packs,” and many subsystems support the pack. Cooling, heating, voltage and amperage management, high voltage leak detection and relays are added to ensure a long, safe life.

Qaulity Warranty

Product fabrication and material defects are guaranteed within 2 years.

Recommendations: the company's products have been filled 30-90% power in the factory, depending on the shipping distance and packing conditions. When capacity measurement, discharge with 1C to 6.3V/ stick; then charge/discharge with the specified current to test capacity. If the stock reach or exceed 2 months, discharge with 1C to 7.2V/ stick; Then charge with 1C for 51min, 0.2C charge for 1hrs, rest 20min, discharge with 1C to 6.3V/ stick, after 3 cycles; Then charge/discharge with the specified current to test capacity. For the first use, the standard charge method is recommended to avoid damage to the battery.

Technical Specification

The whole battery pack consisted by 20 set of above modules

Cautions of Battery Pack Transportation and Storage

1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
