Coffee powder,coffee mate usage purity 99.99% PSA packing Nitrogen Generator

PSA processing principle

Under the balance of adsorption, when any kind of adsorbent adsorbs the same gas, the higher the gas pressure, the greater the adsorption capacity is. Otherwise, the lower the pressure, the smaller the adsorption power is.

As the chart shows, carbon molecular sieve shows difference in adsorbing oxygen and nitrogen. Carbon molecular sieve is a substance with a lot of micropores inside. The PSA principal is to achieve the separation goal of oxygen and nitrogen which based on the adsorption quantity difference in the carbon molecular sieve when the pressure is certain.

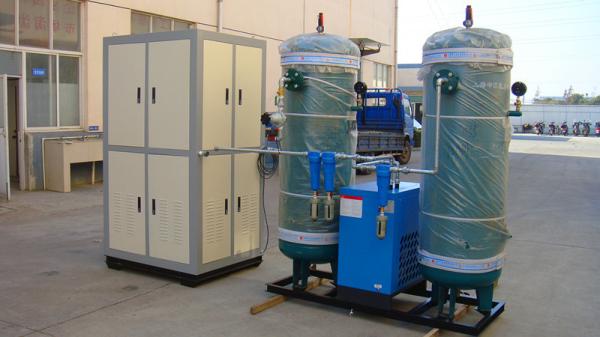

When the pressure rises, the carbon molecular sieve adsorbs the oxygen and produces the nitrogen gas. When the pressure decreases, the carbon molecular sieve starts to desorb the oxygen until the pressure equals to the ordinary pressure. At that time, the carbon molecular sieve desorbs the oxygen completely. The PSA nitrogen generator is usually equipped with adsorption towers. It controls the pneumatic valve by PLC, thus the two adsorption towers can produce the nitrogen gas alternatively. One tower adsorbs the oxygen and produces nitrogen gas, the other desorbs to regeneration to produces the required nitrogen.

Bried introduction of the Product

Bottled nitrogen without special treatment has peculiar smell and contains much water. Nitrogen gas made by the nitrogen making machine does not have impurities or peculiar smell, the gas source is very dry and basically reaches the water-free and low-oxygen state, and the equipment features on small investment and yield quick returns, convenient operation, low running cost and can greatly prolong the time of food preservation. Food is not always so well stored and preserved under high nitrogen purity, and the best preservation can be achieved if ambient gas contains trace oxygen during the food preservation.

Product Features

Only equipped with micro- oil or oil-free air compressor. Open the nitrogen generator and then nitrogen will be generated immediately. The nitrogen purity range is adjustable, the regulating range is 95%- 99.99%.

The whole set of machine is automatic and equipped with converter circuit energy-saving control to make the whole nitrogen generator machine operate under a economic, effective state.

Nitrogen meter continuously monitoring nitrogen purity online. The structure of the equipment is compact and the size is small, so this machine is easy to clean.

This machine is optimal designed and durable, and the investment reclaims fast

Our Services

Pre-sale services

Advisory Services: Solve your problems one to one, and provide the most suitable and energy saving plan.

Technical Support: Provide you the security drawings of the whole machine and technological equipment flow chart; send our technician on mission to help you if needed.

After-sale Service

Technical Support: Provide free installation guide and operation training, and the after-sale technical documents to the customers.

Quality Assurance: Three guarantees are valid in one year since the machine leave the factory. We provide maintenance service during all the machine’s life.

Customer Service: We will make periodical return visit in order to know the service condition of the machine.
