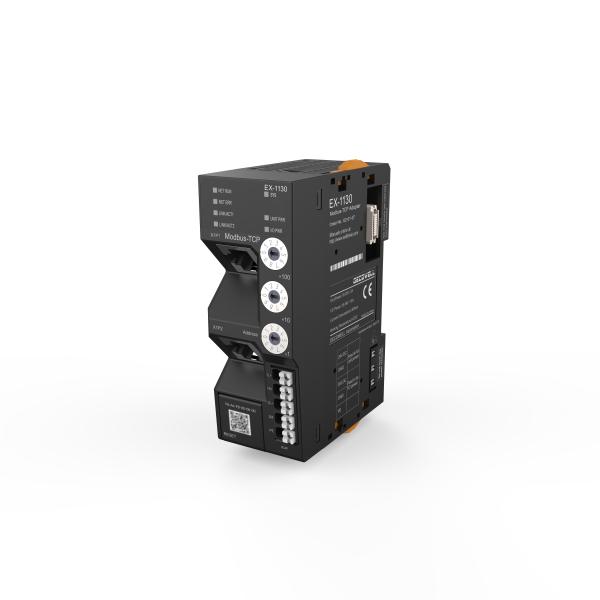

ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
Specifications
Brand Name :
DECOWELL
Model Number :
EX-1130
Certification :
RoHS, ISO: 9001
Place of Origin :
China nanjing
MOQ :
1 pieces
Price :
USD $ 77.57-110.82
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000000pieces/Year
Delivery Time :
5-8 workdays
Packaging Details :
Carton packing，LxW90x100x45.4mm.
Model NO. :
EX-1130
ODM :
Yes
Transport Package :
Cartons
Specification :
90× 67× 34mm
Trademark :
DECOWELL
Origin :
Nanjing
HS Code :
8538900000
Function :
Automatic Control
Condition :
New
Customized :
Customized
Material :
ABS+PC
OEM :
Yes
Customization :
Available | Customized Request
Description
ODM Modbus-TCP Gateway Adapter Ex Series Card I/O Automation Part EX-1130 Io Module
Product Description

DECOWELL EX Series Card I/O EX-1050 Gateway Adapter.

Remote IO system consists of network adapter module and extended IO module.

The network adapter module controls fieldbus communication and it realizes communication link with host station controller or host computer software.

The extended IO module controls the connection with the input and output sensors in the field.

At first the Input IO module collects the field signals and sends it to the network adapter through the internal bus.

Secondly the controller reads and processing data from the adapter through the field bus, and it writes the output data into the network adapter, then the network adapter could write the output data into the output IO module via the internal bus,so the the field equipment control could be realized.

According to the communication interface of the controller system, the network adapter could select the corresponding bus module and mainstream industrial communication protocols including Modbus, Profibus-DP, Profinet, EtherCAT,EtherNet/IP, CANsopen, CC-Link, PowerLink, etc.

Product Parameters
Current consumption 74mA
Bus protocol CANopen (DS-301 V4.02, DS-401 V2.1)
Address setting 1 to 99 (dial code setting)
Transmission distance 1000m (depending on cable and communication rate)
Transmission rate 10kbps, 20kbps, 50kbps, 100kbps, 125kbps,250kbps, 500kbps, 1000kbps (dial code setting)
Overcurrent protection Support
Over-voltage protection Support
Input/Output Maximum Bytes 512 bytes/512 bytes
EX system side power input 24VDC (18 to 36V)
EX system side supply current 2A (Max)
I/O port side power input DC24V (± 20%)
I/O port side output current 10A (Max)
Number of expansion I/O modules 32
Protection class IP20
Operating temperature -10 to 55°C
Storage temperature -20~85ºC
Detailed Photos
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
Company Profile

ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition

Certifications
ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
Application Industry

ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition

Exhibition

ODM Modbus TCP Remote I/O Gateway Adapter EX-1130 IO Module For Data Acquisition
FAQ

1.How could i get the manual, technical detail and software?
Please click the software & manual page to download the realted product details.

2.Do you have after sale support?
Yes we provide all the realted technical support including remote support.And We will provide you any necessary online training and support too.

3. What is your shipping channel?
We support all the main stream courier company including: Fedex, TNT, DHL, UPS, and Aramex.

4. What is your lead time?
We will arrange the delivery in 1~ 2 day if we have finished products in stock.If we have no stock and the lead time will be 1~2 weeks.

5. Do you provide any customized services?
We accpet deep customized services including OEM, ODM and there will be a MOQ.

6. Do you accept cooperation as distributors?
Yes partner and distributorship inquiry are warmly welcomed.
