EX Series Digital I/O Expansion Module 16 Channel DO Module NPN EX-300H
EX Series Digital I/O Expansion Module 16 Channel DO Module NPN EX-300H
Specifications
Brand Name :
DECOWELL
Model Number :
EX-300H
Certification :
CE/ISO9001/UL
Place of Origin :
China nanjing
MOQ :
1 pieces
Price :
USD $36.72-52.45
Payment Terms :
5-8 word days
Supply Ability :
1000000pieces/Year
Delivery Time :
5-8 workdays
Packaging Details :
Carton packing，LxW90x67x14mm
material :
ABS+PC
Customize or not :
customized
Protection Class :
IP20
Operating ambient temperature :
-10℃-55℃
Storage Temperature :
-20~85ºC
Description

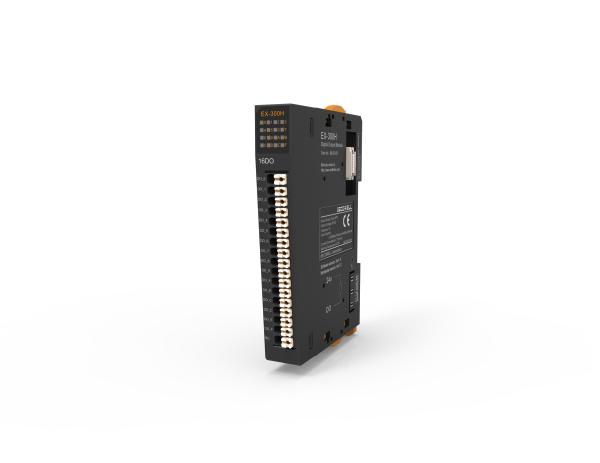

EX series 16-channel DO module,NPN EX-300H

Product name EX-300H
Current Consumption 72mA
Number of Input Channel 16
Input Signal Type NPN
Rated Input Voltage NPN:0V DC(±3%)
Single-channel Rated
Current		 Max:0.5A (Total Output Current
of 8 Channels at the same
time:2A)
Load type Resistive load, inductive load,
lamp load
Isolated withstand voltage 500V
Debounce time Configurable :1 ～ 10ms,
Default :3ms
Isolated withstand voltage 500V
Isolation mode Optocoupler isolation
Debounce time Configurable:1 ～ 10ms, Default:3ms
Dimensions Length, width and height:90mm*67mm*14mm
Temperature range 0 ～ 55℃
Storing Temperature -20 ～ 85℃
Relative humidity 95% No Condensation
Protection grade IP20

EX Series Digital I/O Expansion Module 16 Channel DO Module NPN EX-300H
