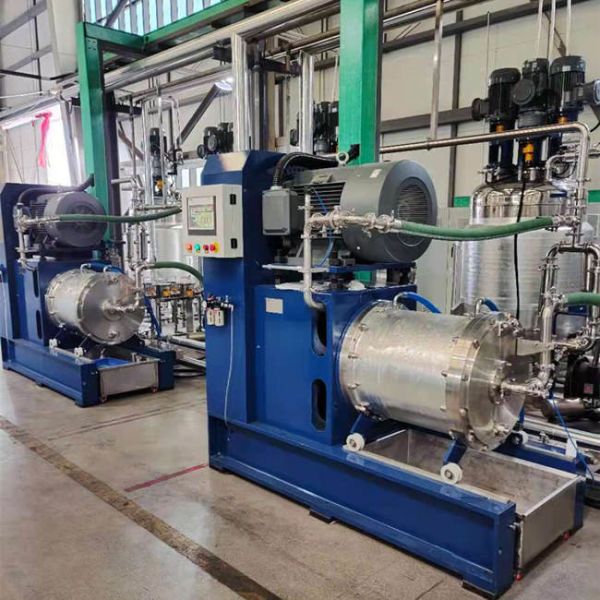

NMM Pharmaceuticals Nano Grinding Turbo Type Bead Mill / Horizontal Disc Mills 250 L
NMM Pharmaceuticals Nano Grinding Turbo Type Bead Mill / Horizontal Disc Mills 250 L
NMM Pharmaceuticals Nano Grinding Turbo Type Bead Mill / Horizontal Disc Mills 250 L
NMM Pharmaceuticals Nano Grinding Turbo Type Bead Mill / Horizontal Disc Mills 250 L
Specifications
Place of Origin :
China
Brand Name :
Boyee
Certification :
CE ISO
Supply Ability :
20 Set/Sets per Month that depends on cust need
Packaging Details :
Stand export packaging: wooden case, steel frame, PE stretch film
MOQ :
1 - 4 Sets
Price :
Negotiable
Model Number :
NMM
Condition :
New
Type :
Sand Mill
Product Type :
battery materials, electronics materials, pigments, ink paint
Voltage :
220V/380V
Dimension(L*W*H) :
4500*1700*2400mm
Warranty :
1 Years
Material :
stainless steel
Capacity :
250 L
Motor brand :
ABB
Bearing brand :
NSK/SKF
Agitator :
Turbine
Agitator material :
Ceramic
Mechanical seal :
Boyee ODM
Grinding media size :
0.1-0.2mm
Explosion-proof :
Yes
Application Area :
battery materials, electronics materials, pigments, ink paint
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
120-160 kw
Weight :
5600 kg
Port :
Guangzhou China Shenzhen China Hongkong China
Description

Pharmaceuticals horizontal grinding machine with nano fineness

Product Description

  • Universally applicable for every product
  • You achieve the best product qualities with maximum output and optimal energy efficiency
  • Turbine grinding system with the highest grinding intensity
  • Finness into the nanometer range
  • Narrowest particle size distribution
  • Grestest cost efficiency ,Exact reproducibility
  • Effective dynamic screen slotted pipe separation system
  • ideal for circulation/multi-pass operation
  • optimal energy input with effective cooling
  • Ideal temperature control

Product Application

It is widely used to produce battery material,printing inks,ceramic material,microelectronics,semiconductor,cosmetics,

pharmaceuticals,agrochemical,paper making,food,life science,paint,inks,fuel catalyst,lon echange products,metallic oxide,pigments,etc.

Product Features

  • Simple profile, compact conformation and easy operation
  • Patented Turbine structure design and special separation and discharge system
  • Double acting mechanical seal with oritented cooling loop system
  • Variable frequency drive system to precisely control the grinding power
  • Full-ceramic grinding part,wear-resistant and no metallic pollution
  • Application of geometry to protect the grinding part of the equipment with longer lifespan

Model Volume (L) Motor Power (KW) Medium Size (mm) Weight (KG) Dimension(mm)
NMM-10 10 18.5 0.3-1 1280 1800*1200*1550
NMM-30 30 45 0.3-1 1850 1800*1300*1800
NMM-60 58 75 0.3-1 2480 3290*1478*1950
NMM-90 98 75-90 0.3-1 3050 3290*1478*1950
NMM-150 120-180 160 0.3-1 5280 4500*1700*2400

NMM Pharmaceuticals Nano Grinding Turbo Type Bead Mill / Horizontal Disc Mills 250 LNMM Pharmaceuticals Nano Grinding Turbo Type Bead Mill / Horizontal Disc Mills 250 L

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packaging
Size 1100*550*1650
Weight 80kg
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
