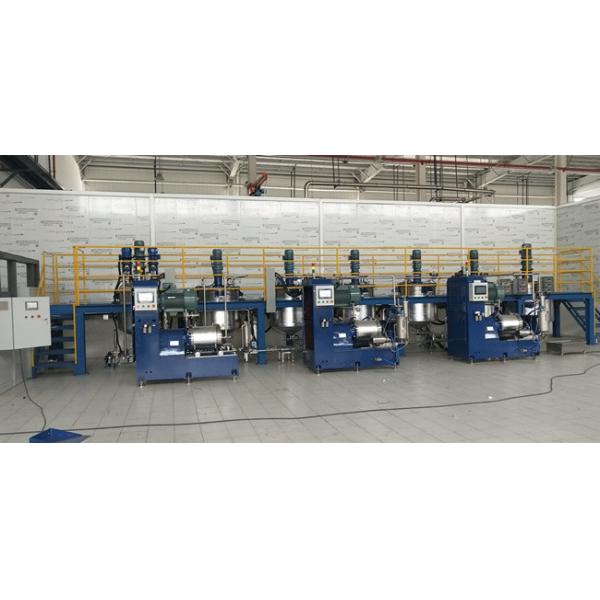

BYZr Series Bead Mill

(Hollow shaft)

Performance characteristics:

Turbine rotors;

Special discharging separation system;

Self-developed mechanical seal;

Cooling circuit with spiral guide to make temperature much lower;

The grinding parts are made of wear-resistant ceramic with no metallic pollution;

Intelligent operating system will document parameters scientifically and make sure smooth production.

Hollow shaft Bead Mill Parameter:

Machine Features:

Patent grinding disc structure of the grinding bead mill has a bigger action area for the grinding media. Bigger shearing force and higher efficiency;
Double cooling systems for the chamber and end cap. The dis-solvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage;
Feeding device: pneumatic diaphragm pump or frequency control gear pump is optional as clients’ requirements. Feeding and discharging tubes with good solvent resistant property;
High security property: The grinding bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature;
Grinding chamber and rotor is made of high wear resistant alloy steel which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.

Hollow shaft Bead Mill​ ​ Application:

Widely used in the industry of ceramic materials, ceramic ink, electromagnetic material etc.

• Patented turbine structure design
• More pure and refined grinding quality
• Applicable for high viscosity products
• Full ceramic or plastic texture, free from metal pollution
• Dual-end face mechanical seal
• Outstanding cooling performance
• Dynamic discharging of filter screen to reduce occurrence of screen clogging
• Easy to be operated and installed

Hollow shaft Bead Mill Technological Indicators

1. Fineness: 5μm-500nm
2. Solvent system: water-based, oily
3. Capacity: 30L-2000L/h
4. Viscosity: ≤ 50,000 CPS
5. Grinding media ≥ 0.2mm
