Auto String Spring Mattress Production Line 5000x3200x2200mm
Auto String Spring Mattress Production Line 5000x3200x2200mm
Auto String Spring Mattress Production Line 5000x3200x2200mm
Auto String Spring Mattress Production Line 5000x3200x2200mm
Auto String Spring Mattress Production Line 5000x3200x2200mm
Auto String Spring Mattress Production Line 5000x3200x2200mm
Specifications
Brand Name :
NOBO
Model Number :
LN-120
Certification :
CE
Place of Origin :
Foshan,china
MOQ :
1Sets
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2 Set/Sets per Month
Delivery Time :
15-45 work days
Packaging Details :
Standard packing
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
One Year
Core Components :
PLC, Motor
Voltage :
Custom-Made
Logo :
On The Basis Of The Original Custom
Description

Auto String Spring Machine mattress machinery Automatic Mattress Production Line

Automatic spring bed net production line

LN-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system.After this,the upper and lower springs are coiled together at the same time and helical wire is coiled, cut and clamped at bothend automatically. When a unit is finished, it could be ejected automatically.

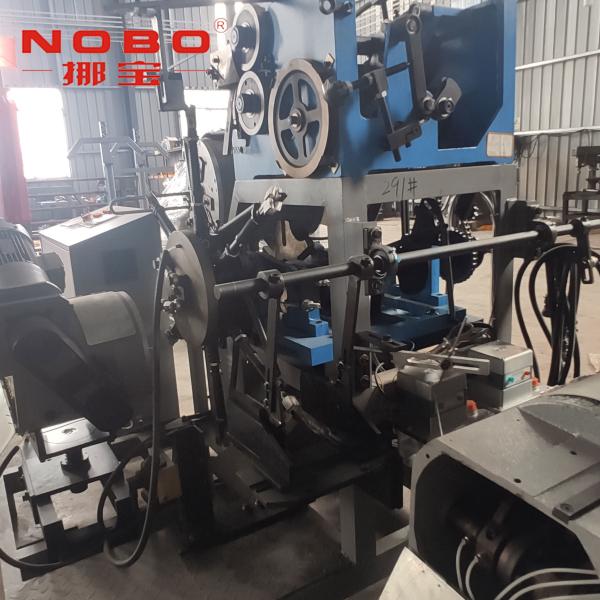

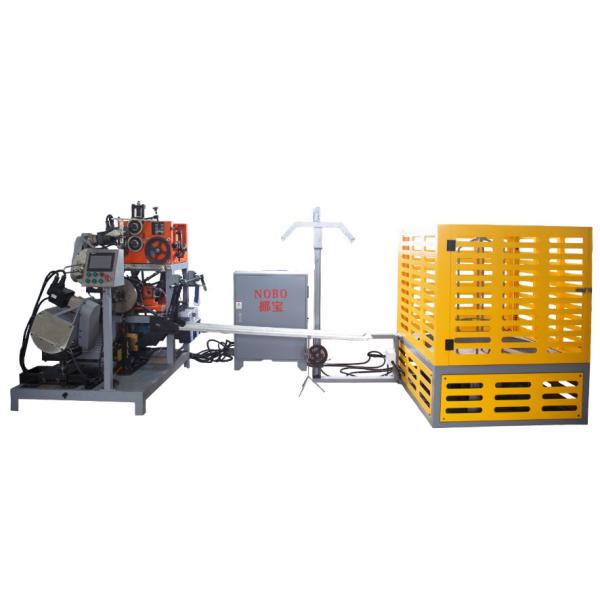

bonnell spring coiling mattress spring making machine is an automatic equipment in making mattress spring (bonnell springs).It combines coiling, knotting,heat treatment and out put total four procedures. It is a fully automatic mattress spring making machine, which adopts mechatronics design, worm and gear decelerator, regulation of speed can be controlled by frequency transformer, lubricating system can be controlled by computer. It is characterized with nice structure, easy adjusting, stable performance, high productivity.

Technical data:

Work Efficiency:

80 units/8 hours

Maximum width of the bed nets:

2000mm (option2000mm)

Adaption bed nets high:

80-180mm

Spring wire diameter:

2.0-2.4mm

String of spring steel wire diameter:

1.3-1.6mm

The total electric power:

20kw

Weight of machines:

9000kgs

Electrical source:

3 phase 380V/50HZ

Figure size:

length 5000 x width 3200 x high 2200mm

Applies to spring-caliber:

58 Fixture Series 55-56mm(1.8 meters29 rows of springs)

60Fixture Series 60-65mm(1.8 meters27 rows of springs)

68 Fixture Series 65-70mm(1.8 meters24rows of springs)

78 Fixture Series 65-73mm(1.8 meters22rows of springs)

88 Fixture Series75-82mm(1.8 meters19rows of springs)

98 Fixture Series 82-90mm(1.8 meters18rows of springs)

Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

Business philosophy:

Quality first, customers pay back the community.

Quality guidelines: Customer-oriented quality Innovation and continuous improvement The quality

of services, ahead of the competition Full participation and achievement of objectives

Quality Objectives: To ensure product quality and credibility. To strengthen the competitiveness.

Customer demand to provide better products, so

that the customer satisfaction. Customer requirements for the goal to achieve quality in the first.

Auto String Spring Mattress Production Line 5000x3200x2200mm

Auto String Spring Mattress Production Line 5000x3200x2200mm

Auto String Spring Mattress Production Line 5000x3200x2200mmAuto String Spring Mattress Production Line 5000x3200x2200mm

Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine

Auto String Spring Mattress Production Line 5000x3200x2200mm

Auto String Spring Mattress Production Line 5000x3200x2200mm

Auto String Spring Mattress Production Line 5000x3200x2200mm

Ce certificate: Spring Makiing Machine & String Spring Machine

Auto String Spring Mattress Production Line 5000x3200x2200mmAuto String Spring Mattress Production Line 5000x3200x2200mm

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.

Packaging
Size
(L) * (W) * (D)mm
Weight
*kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Auto String Spring Mattress Production Line 5000x3200x2200mmAuto String Spring Mattress Production Line 5000x3200x2200mm

Auto String Spring Mattress Production Line 5000x3200x2200mmAuto String Spring Mattress Production Line 5000x3200x2200mm

Delivery:
Payment:
30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.
Time of Delivery:
Within 20 days after receiving the buyer’s down payment.
Warranty:
The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Auto String Spring Mattress Production Line 5000x3200x2200mmAuto String Spring Mattress Production Line 5000x3200x2200mm

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Auto String Spring Mattress Production Line 5000x3200x2200mmAuto String Spring Mattress Production Line 5000x3200x2200mm
