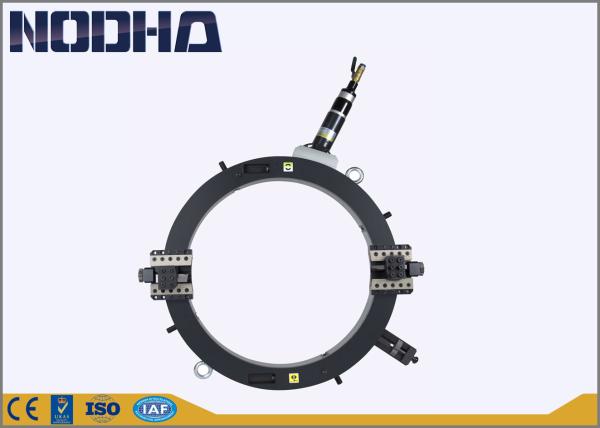

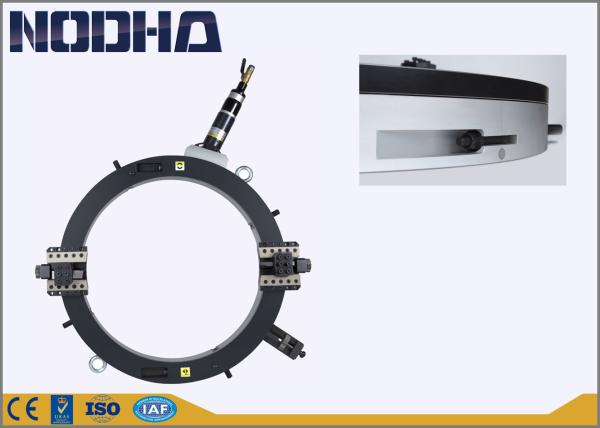

8-14 Pneumatic Beveling Tools , Bevel Cutting Machine For Pipes
8-14 Pneumatic Beveling Tools , Bevel Cutting Machine For Pipes
8-14 Pneumatic Beveling Tools , Bevel Cutting Machine For Pipes
8-14 Pneumatic Beveling Tools , Bevel Cutting Machine For Pipes
8-14 Pneumatic Beveling Tools , Bevel Cutting Machine For Pipes
8-14 Pneumatic Beveling Tools , Bevel Cutting Machine For Pipes
Specifications
Brand Name :
NODHA
Model Number :
AODP-377
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 SETS/ YEAR
Delivery Time :
5-7 Working Days
Packaging Details :
Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Name :
pneumatic pipe cutting beveling machine
Drive :
Pneumatic Driven
Power Supply :
1500-3000L/Min@0.6/0.7Mpa
Working Range(OD) :
8"-14"(219-377mm)
Wall Thickness :
≤30
Mounting Method :
Split OD Mount
Working Weight :
56kgs
Shipping Weight :
94kgs
Package Size :
785*845*280mm
Meterial :
Aluminum
Speed :
Adjust
Bevel angle :
0°, 30°, 37.5°
Warranty :
One Year
Description

Pipe Cutting and beveling Machine

The series machine is ideal for all types of pipe cutting & beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fitting for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Working Range from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.

Features of pneumatic pipe cutting beveling machine

  1. Cold Cutting & Beveling improve safety
  2. Cutting and Beveling at the same time
  3. Minimal Axial and Radial clearance
  4. Light weight and Compact design
  5. Easy installation & Operation
  6. Pneumatic or Electric or Hydraulic driven
  7. Machining heavy-wall pipe from 2” up to 48”

Application of pneumatic pipe cutting beveling machine

  1. Oil & Gas File
  2. Power & Chemical Plant
  3. Nuclear Power Plant
  4. Process Plant & Fabrication
  5. Ship Building And Repair

Specification of pneumatic pipe cutting beveling machine

  1. Drive Options: Pneumatic, Hydraulic, and Electric
  2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
  3. Hydraulic requirement: 2-60L per minute 12.5Mpa
  4. Electric requirement:220-240V 1PH 50/60HZ
  5. Feed mode: Star wheel, automatically
  6. Feed rate: Fixed 0.08mm per circle

Selection Guide

8

Model Working Range (OD) d (mm) D(mm) L (mm)
Inch mm
168 2”-6” 50-168 185 512 178
230 3”-8” 80-230 236 564 178
275 5”-10” 125-275 283 612 178
325 6”-12” 168-325 334 665 178
377 8”-14” 219-377 386 719 178
426 10”-16” 273-426 438 776 180
457 12”-18” 300-457 469 807 180
508 14”-20” 355-508 518 862 190
560 16”-22” 400-560 570 910 190
610 18”-24” 457-610 618 960 190
660 20”-26” 508-660 670 1020 190
715 22”-28” 550-715 719 1084 190
762 24”-30” 600-762 770 1134 190
830 26”-32” 660-813 830 1194 192
914 30”-36” 762-914 924 1296 212
1066 36”-42” 914-1066 1077 1468 212
1230 42”-48” 1066-1230 1248 1646 212

Suggest: size 1066 and above size select and use hydraulic type

Order Guide

Before you place order to us, please let us know the following information:

  1. Choose suitable Model

  2. Confirm electric power supply ( Voltage, frequency and phase)

  3. Confirm the beveling angel needed

  4. Confirm the welding joint required (U, V, Double V or Compound preparation)

  5. Advise your pipe material ( Carbon steel, stainless steel or others)

  6. Other special demands about machine

  7. If the pipe wall thickness more than 30mm, inform us in advance (Important)

Working On Site

8

Exhibition

8

Certification

8

After-Sale Service

1. Warranty period: 12 months (Electric motor 6 months)

2. Emergency spare parts required dispatched within 24 hours
