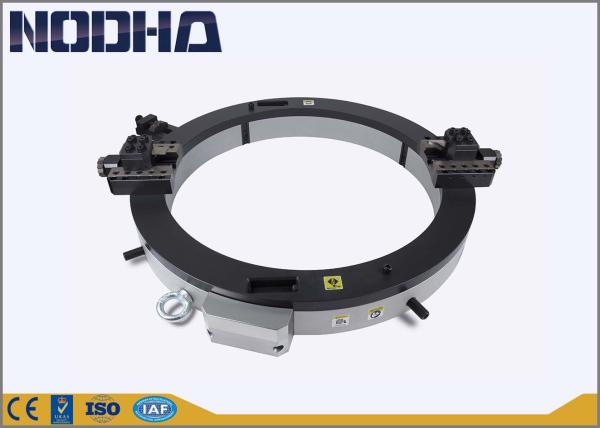

Split Frame Pipe Cold Cutting And Beveling Machine With Electric Motor

The series machine is ideal for all types of pipe cutting & beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fitting for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Working Range from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.

• Cold Cutting & Beveling improve safety
• Cutting and Beveling at the same time
• Self-acting tools feed
• Pneumatic or Electric or Hydraulic driven
• Machining heavy-wall pipe from 2” up to 48”

• Oil & Gas File
• Power & Chemical Plant
• Process Plant & Fabrication
• Ship Building And Repair

• Drive Options: Pneumatic, Hydraulic, and Electric
• Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
• Hydraulic requirement: 2-60L per minute 12.5Mpa
• Electric requirement:220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed 0.08mm per circle

Suggest: size 1066 and above size select and use hydraulic type

Before you place order to us, please let us know the following information:

• Choose suitable Model

• Confirm electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel needed

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• If the pipe wall thickness more than 30mm, inform us in advance (Important)

Working On Site

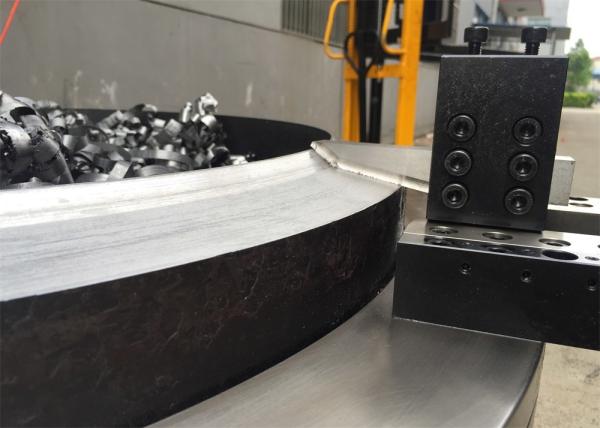

After Bevel

Exhibition

Certification

After-Sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
