Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs
Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs
Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs
Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs
Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs
Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs
Specifications
Brand Name :
NODHA
Model Number :
AODE-914
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 SETS/ YEAR
Delivery Time :
5-7 Working Days
Packaging Details :
Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Name :
cold pipe cutting and beveling machine
Drive :
Electric Driven
Working Range(OD) :
30"-36"(762-914mm)
Wall Thickness :
≤30
Working Weight :
144.5kgs
Shipping Weight :
209.5kgs
Package Size :
1130*1200*330mm
Meterial :
Aluminum
Warranty :
One Year
After-sale Service Provided :
Engineers available to service machinery overseas
Feed :
Automatic
Description

Features of cold pipe cutting and beveling machine

  • Cold Cutting & Beveling improve safety
  • Cutting and Beveling at the same time
  • Minimal Axial and Radial clearance
  • Light weight and Compact design
  • Easy installation & Operation

Application of cold pipe cutting and beveling machine

  • Oil & Gas File
  • Power & Chemical Plant
  • Nuclear Power Plant
  • Process Plant & Fabrication
  • Ship Building And Repair

Specification of cold pipe cutting and beveling machine

  • Drive Options: Pneumatic, Hydraulic, and Electric
  • Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
  • Hydraulic requirement: 2-60L per minute 12.5Mpa
  • Electric requirement:220-240V 1PH 50/60HZ
  • Feed rate: Fixed 0.08mm per circle

Selection Guide

Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs

Model Working Range (OD) d (mm) D(mm) L (mm)
Inch mm
168 2”-6” 50-168 185 512 178
230 2”-8” 50-230 236 564 178
275 5”-10” 125-275 283 612 178
325 6”-12” 168-325 334 665 178
377 8”-14” 219-377 386 719 178
426 10”-16” 273-426 438 776 180
457 12”-18” 300-457 469 807 180
508 14”-20” 355-508 518 862 190
560 16”-22” 400-560 570 910 190
610 18”-24” 457-610 618 960 190
660 20”-26” 508-660 670 1020 190
715 22”-28” 550-715 719 1084 190
762 24”-30” 600-762 770 1134 190
830 26”-32” 660-813 830 1194 192
914 30”-36” 762-914 924 1296 212
1066 36”-42” 914-1066 1077 1468 212
1230 42”-48” 1066-1230 1248 1646 212

Suggest: size 1066 and above size select and use hydraulic type

Order Guide

Before you place order to us, please let us know the following information:

  • Choose suitable Model

  • Confirm electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel needed

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)

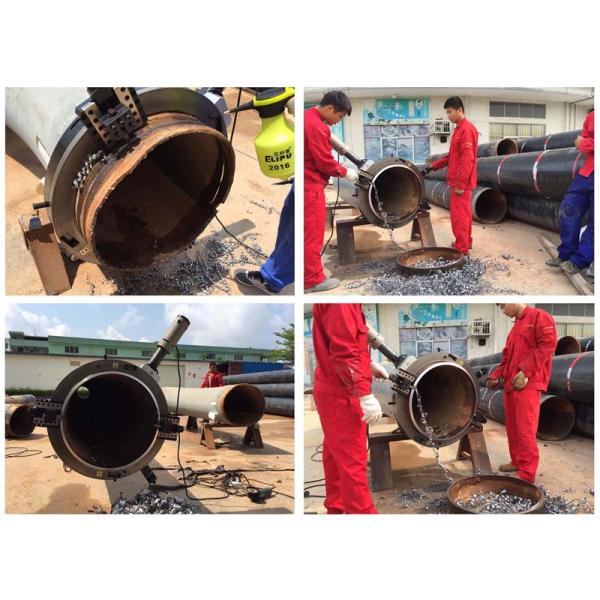

Working On Site

Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs

Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs

Exhibition

Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs

Certification

Split Frame Aluminum body Electric Motor Pipe Cutting Machine , Industrial Pipe Cutter 144.5kgs

After-Sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
