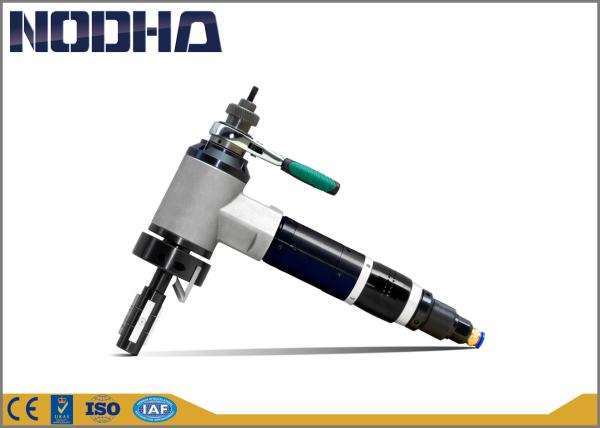

PIPE BEVELING MACHINE

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

• In-Situ cold Beveling improves safety
• Easy installation & Operation
• Self-Centering
• Can be placed in any direction
• Feed ratchet spanner makes tool feed or back easily
• Compact design & Light weight
• Electric/ Pneumatic driven for option
• Adjust Speed

• Oil & Gas filed
• Power Plant
• Chemical Plant
• Nuclear Power Plant
• Process Plant & Fabrication
• Ship Building & Repair

• Drive Options: Pneumatic, Electric
• Air requirement: 900L-1200L/Min@0.6Mpa
• Electric requirement: 220-240V 1PH 50/60HZ
• Feed mode: Feed spanner, manually
• Packaging: Plywood case

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)
