9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant
9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant
9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant
9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant
9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant
9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant
Specifications
Brand Name :
NODHA
Model Number :
IDE-80
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets Per Year
Delivery Time :
5-7 Working Days
Packaging Details :
Aluminium Alloy Case
Driven :
Electric Driven
Power Supply :
220-240V 1PH 50/60HZ
Clamping Range(ID) :
28-76mm
Wall Thickness :
≤15mm
Working Weight :
9.5kgs
Shipping Weight :
18kgs
Packing Size :
500*420*180mm
Feed :
Automatic
Refrigeration :
Cool Liquid
After-Sale Service Provided :
Engineers available to service machinery overseas
Warranty :
One Year
Description

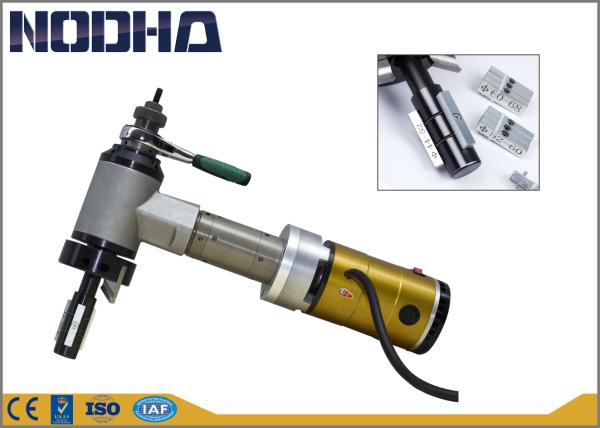

PIPE BEVELING MACHINE

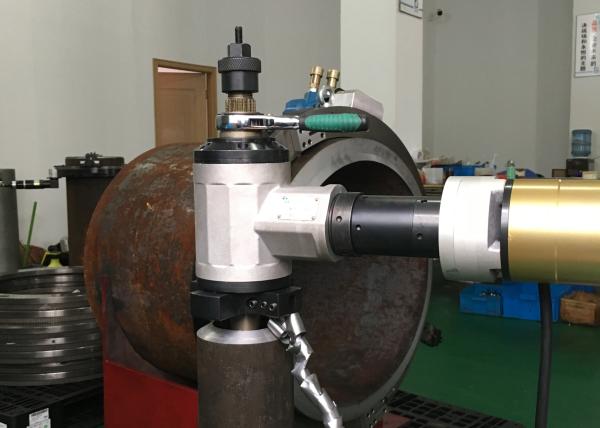

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.



Features

  • In-Situ cold Beveling improves safety
  • Easy installation & Operation
  • Self-Centering
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric/ Pneumatic driven for option
  • Adjust Speed




Application

  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Ship Building & Repair




Specification

  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case




Selection Guide

Model

Clamping Range

(ID)

Working Range

(OD)

 Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-110 4 114.3 ≤15
252 80-240 10 273.05 ≤20




Tool Bits

9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant



Standard Supply

  • Machine
  • 1 cutting tool bit
  • 1 30 degree beveling tool bit
  • 1 37.5 degree beveling tool bit
  • Air/Electric motor
  • Manual
  • Expanding block
  • Wrench
  • Guarantee card



Order Guide

Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)

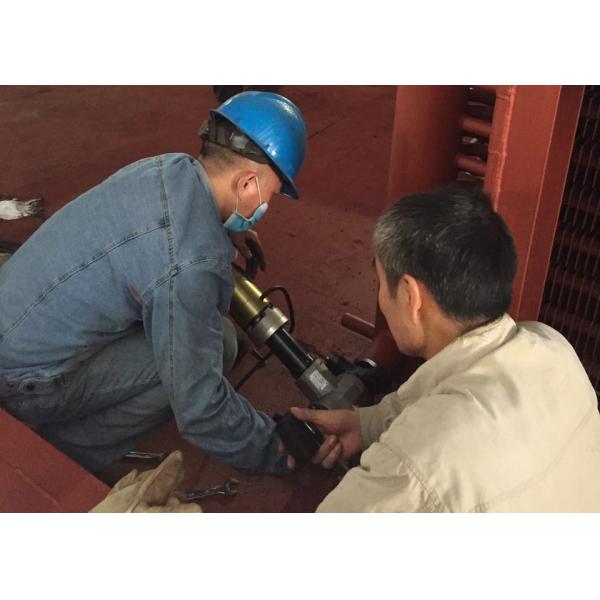

Working On-site

9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant



Exhibition

9.5kgs Portable Electric Pipe Beveling Machine For Chemical Plant



After-Sale Service

1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
