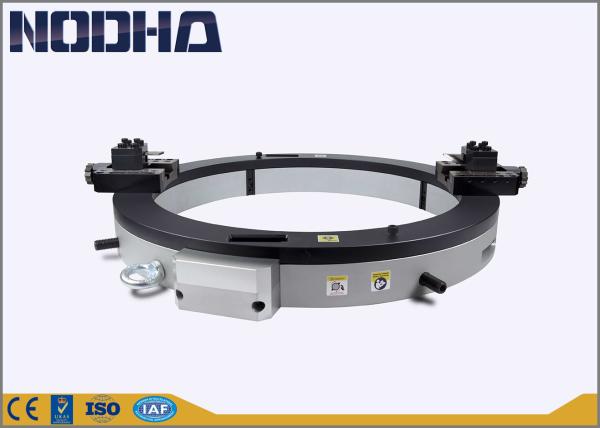

Nodha Brand Portable Split Frame Pipe Cold Cutting Machine With Hydraulic Operated

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.

1. Cold Cutting and Beveling improve safety
2. Cutting and Beveling simultaneous
3. Split Frame: easy mounted on pipeline
4. Self-acting tools feed
5. Fast, Precision, In-situ Beveling
6. Easy install & Operation
7. Pneumatic or Electric or Hydraulic driven
8. Machining heavy-wall pipe from 2” up to 48”

1. Oil & Gas File
2. Power Plant
3. Nuclear Power Plant
4. Process Plant & Fabrication
5. Ship Building & Repair

1. Drive Options: Pneumatic, Hydraulic, and Electric
2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
3. Hydraulic requirement: 2-60L per minute 12.5Mpa
4. Electric requirement:220-240V 1PH 50/60HZ
5. Feed rate: Fixed 0.08mm per circle

Suggest: size 1066 and above size select and use hydraulic type

Before you place order to us, please let us know the following information:

1. Choose suitable Model

2. Confirm electric power supply ( Voltage, frequency and phase)

3. Confirm the beveling angel needed

4. Confirm the welding joint required (U, V, Double V or Compound preparation)

5. Advise your pipe material ( Carbon steel, stainless steel or others)

6. Other special demands about machine

7. If the pipe wall thickness more than 30mm, inform us in advance (Important)
