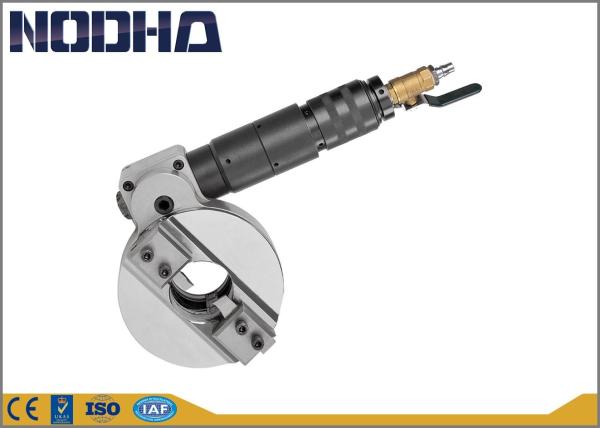

13.5kgs Self - Centering Portable Pipe Cutting And Beveling Machine Dia. 14-63mm
13.5kgs Self - Centering Portable Pipe Cutting And Beveling Machine Dia. 14-63mm
Specifications
Brand Name :
NODHA
Model Number :
PSCB-63
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets Per Year
Delivery Time :
5-7 Working Days
Packaging Details :
Aluminum Case
Driven :
Air Driven
Working Range :
Dia. 14-63mm
Thickness :
≤15mm
Speed :
30-120r/min
Net :
13.5kgs
Description

High-Efficiency Self-Centering Pipe Cutting And Beveling Machine

Adopt high strength & precision ring structure, apply for pipe cutting and beveing, especially for batch working of cutting and beveling

Adopt METABO motor: low noise, long life, stable performance and perfect speed adjustable function, with CE certificate.

Power supply: Electric Operated:220-240V 1PH 50/60HZ ESCB Serious

Feature

  • Self-centering, make the installation much faster.
  • Compact structure and good appearance, high strength aluminum body.
  • Adopt new synchronous feeding mechanism, feeding uniformity, tool bits has longer working life.
  • Easy set-up, operation and maintain.
  • Cutting & beveling finished at same time, high working efficiency.
  • Cold working, no spark, won't make the material affected.
  • Perfect working precision, no burrs.
  • Well-adapted, you can make the speed adjust depend on the working conditions.

Specification

Model Working Range Thickness Speed Net Weight
ESCB-63 Dia. 14-63mm ≤15mm 30-120r/min 13kgs
PSCB-63 Dia. 14-63mm ≤15mm 30-120r/min 13.5kgs
ESCB-114 Dia. 57-114mm ≤15mm 30-120r/min 16kgs
PSCB-114 Dia. 57-114mm ≤15mm 30-120r/min 16.5kgs

*Only for open end pipe, can not split
