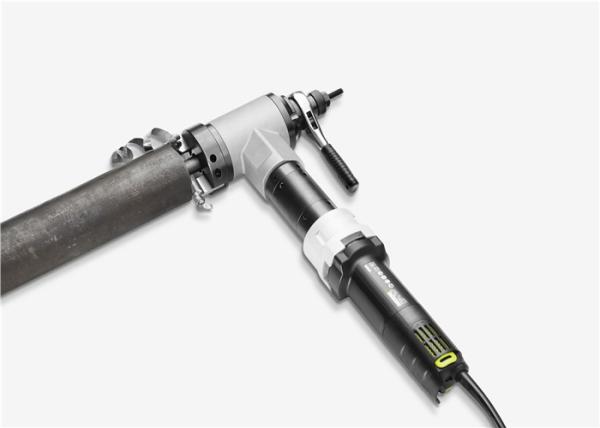

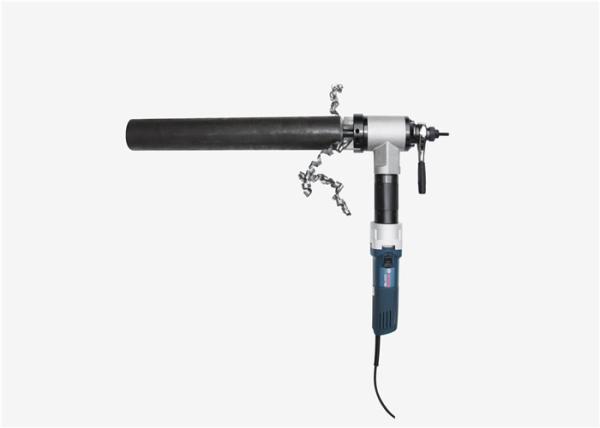

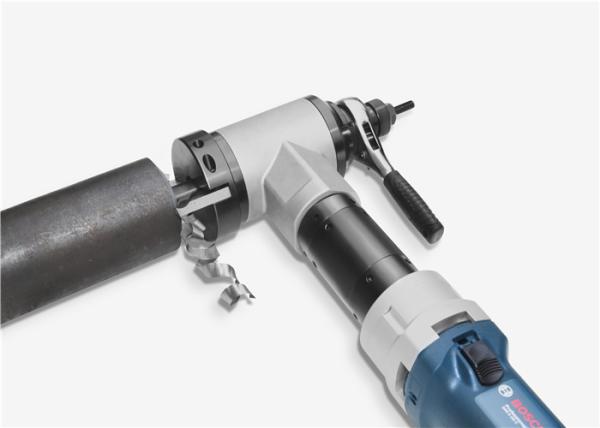

Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Specifications
Brand Name :
NODHA
Model Number :
IDE-80
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets Per Year
Delivery Time :
5-7 Working Days
Packaging Details :
Aluminium Alloy Case
name :
Electric Inner Diameter Mounted Pipe Beveling Machine T type
Motor Power :
720W
Working Range(OD) :
3"(88.9mm)
Rotation Speed :
48r/min
Shipping Weight :
17kgs
Working Weight :
8.5kgs
Packing Size :
500x420x180mm
Description


PIPE BEVELING MACHINE

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.



Application

  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Ship Building & Repair


Features

  • On-Site cold Beveling improves safety
  • Easy installation & Operation
  • Self-Centering
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric/ Pneumatic driven for option
  • Adjust Speed




Standard Supply


Machine, electric drive system, 1 pcs cutting tool bit, 1 pcs 30 degree beveling tool bit, 1 pcs 37.5 degree beveling tool bit, expanding block, wrench, manual, guarantee card, plywood case.



Selection Guide

Model

Clamping Range

(ID)

Working Range

(OD)

 Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-110 4 114.3 ≤15
252 80-240 10 273.05 ≤20



Working On-site

Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed
Electric Inner Diameter Mounted Pipe Beveling Machine T Type CE ISO Passed

After-Sale Service

1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
