Tight Space Rapid Cutting 18 Pipe Cold Cutting Machine
Tight Space Rapid Cutting 18 Pipe Cold Cutting Machine
Tight Space Rapid Cutting 18 Pipe Cold Cutting Machine
Tight Space Rapid Cutting 18 Pipe Cold Cutting Machine
Specifications
Brand Name :
NODHA
Model Number :
H18S
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 sets per year
Delivery Time :
5-8 work days
Packaging Details :
case
Name :
Hinged pipe cold cutter
Color :
Red
Model :
H18S
Description
18” Hinged pipe cold cutter rapid cutting for tight space portable
INTRODUCTION:
  • Designed for rapid cutting of 1" through 14" steel pipe
  • The cutters operate with minimal cutter rotation (90-110deg.) as necessary for tight space
  • Cold Cut without spark
  • Portable and light weight, easy for transportation
  • Suitable to cut steel pipe, cast iron pipe, galvanized pipe, ductile iron pipe, black iron pipe
  • Cut easier and faster, especially stainless steel and ductile pipe.
  • Last much longer.
  • Allow for shorter cutter handle for work in tight spaces.
  • Provide the best value.

MORE INFORMATION:

Hinged Pipe Cutters feature four wheels to cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing. Only 4” (125 mm) clearance is required around pipe. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360° frame on the hinged pipe cutter forces all energy into cutting the pipe for maximum efficiency. There is no shower of sparks in this cold cut.

SPECIFICATION:

Model H2S H4S H6S H8S H14S H18S H22S
Pipe Size(OD) Inch 1"-2 1/2" 2"-4" 4"-6" 6"-8" 10"-14" 16“-18'” 20"-22"
Pipe Size(OD) mm 32-76 60-125 114-182 168-240 266-358 368-462 476-572
N.W(KGS) 3 6.5 9 12 23 28 40
G.W(KGS) 3.5 7 10 12.5 32 41.5 50
Packing Size(mm) 470*170*70 605*230*100 750*230*110 850*390*120

1180*360*165

1010*530*200 1010*530*200

PHOTO:

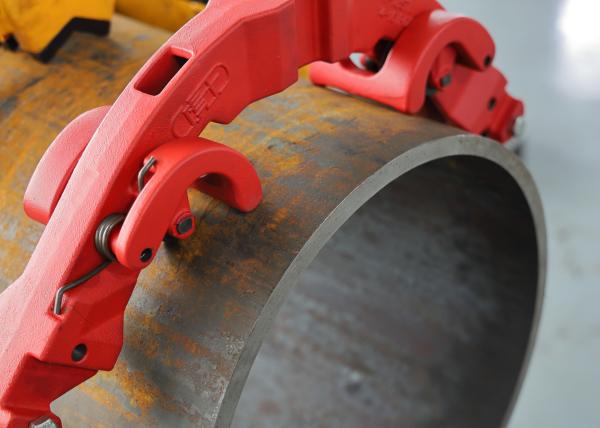

Tight Space Rapid Cutting 18Tight Space Rapid Cutting 18
