Mini Pneumatic On Site Flange Facing Machine Internally Mounted Pneumatic Drive
Mini Pneumatic On Site Flange Facing Machine Internally Mounted Pneumatic Drive
Specifications
Brand Name :
NODHA
Model Number :
FI24
Place of Origin :
WUXI
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 SETS/ YEAR
Delivery Time :
3 months
Packaging Details :
Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Name :
Flange Facing Machine
Drive :
Pneumatic
Facing Range :
2 - 24"
Clamping Range :
2 - 22"
Machine weight :
45kgs
Shipping Weight :
62kgs
Description

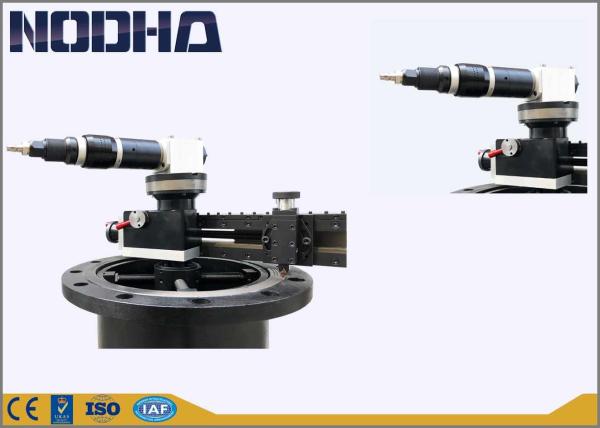

Nodha Brand Flange Facing Machine F0224

An internally mounted lightweight yet strong flange facing machine for all types of flange facing, seal groove

machining, weld prep and counter boring.

Facing Range: 2 - 24" Clamping Range: 2 - 22"

Features of Flange Facing Machine:

1. Light weight construction

2. Quality for demanding conditions

3. Continuous groove facing feeds

4. Swivel tool post for grooves, RTJ flanges and bevels

5. Quick set independent bases

Technical Specifications of Flange Facing Machine:

  1. Minimum facing diameter: 50mm
  2. Maximum facing diameter:610mm
  3. Minimum clamping diameter:50mm
  4. Maximum clamping diameter:560mm
  5. Minimum swing diameter:605mm
  6. R.P.M – air 1.5hp: Min20
  7. R.P.M – air 1.5hp: Max42
  8. Tool post travel:50mm
  9. Drive – Pneumatic @ 6 bar (90 p.s.i):1.1 Kw
  10. Air supply required 1.19 m3/m:42scfm
  11. Machine weight:45kgs
  12. Shipping Weight:60kgs

Exhibiton:

Mini Pneumatic On Site Flange Facing Machine Internally Mounted Pneumatic Drive

After-SaleService:

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
