Six Colour Non Woven Bag Printing Machine With Pneumatic Printing Cylinder
Six Colour Non Woven Bag Printing Machine With Pneumatic Printing Cylinder
Specifications
Brand Name :
WEIXIN
Model Number :
YT-61400
Certification :
CE
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
Shrink film and wooden case packing
Size :
1400mm
Cylinders size :
400mm
Speed :
50m/min
Total Power :
30kw
Overall Size :
L4500 * W2400 * H2700 mm
Warranty :
12 month
Description

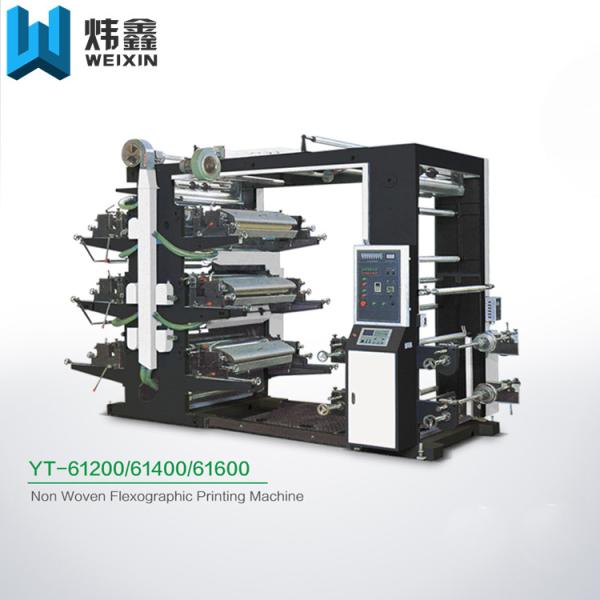

Six Colour Non Woven Bag Printing Machine

Description

Six Color Flexo Printing Machine For Non Woven Fabric

1. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
2. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
3. The printing ink is spread by the anilox cylinder with even ink color.
4. Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
5.360° continuous and adjustable longitudinal register device.
6. The frequency control of motor speed adapts to different printing speeds.
7. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

8. Easy operation, flexible starting, accurate color register.

Applications

This machine can printing non woven fabirc ,roll paper,plastic film.

LDPE: 28 ~ 100μm LLDPE: 30 ~ 100μm HDPE: 25 ~ 100μm CPP: 20 ~ 60μm PP: 23 ~ 65μm NY: 20 ~ 50μm PETP: 16 ~ 60μm OPP: 18 ~ 70μm BOPP: 17 ~ 60μm OPA: 20 ~ 60μm Plating film: 30 ~ 80μm Aluminum: 25 ~ 200μm Cellophane: 30 ~ 100g/m2 Paper : 30 ~ 350g/m2 Wrapping paper : 30 ~ 100g/ m2

Specifications

SN Item Specification
1 Roller width 1400mm
2 Printing width 50-1360mm
3 Printing speed 50m/min
4 Material Non-woven fabric, Paper, Film(PVC.PE.BOPP.PE), Aluminum foil
5 Printing length 280-1000mm (customized by client)
6 Transmission drive type Spur gear drive
7 Thickness of plate 2.28mm
8 Power supply 380V
9 Total power 30KW
10 Overall size L4500 * W2400 * H2700 mm
11 Weight of Machine 3900KGS (40HQ*1)
