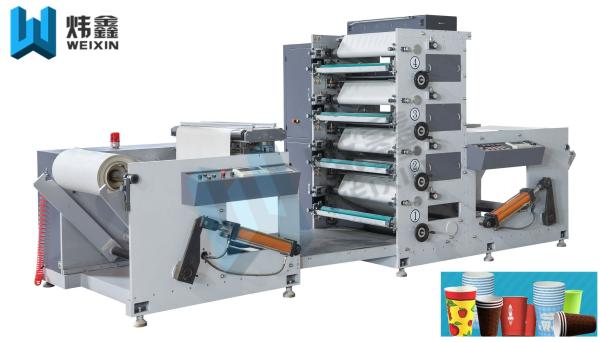

Central Drum Flexo Printing Machine , PE Label Flexo Roll Printing Machine
Central Drum Flexo Printing Machine , PE Label Flexo Roll Printing Machine
Specifications
Brand Name :
WEIXIN
Model Number :
WX-950-4
Certification :
CE
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
20 Set/Sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Name :
Paper cup flexo printing machine
Speed :
50m/min
Max web width :
950mm
Max printing width :
920mm
Warranty :
12 month
After Sales Service :
Engineers available to service
Colour Register :
Manual
Doctor Blade :
Single side doctor blade
Ceramic Anilox :
200-800Lpi
Printing Colours :
2-8
Description

High Speed Stack Flexo Printing Machine For Paper Cup

Main Technical Parameters

S/N Model HSR-950
1 Max Feeding Width 1400mm
2 Printing Length 190mm—420mm,
3 Max Web Width 950mm
4 Max printing Width 920mm
5 Main Motor Power 5.5KW
6 Power Supply 380V 3PH 50Hz
7 Printing Speed 0—60m/Min
8 Paper Thickness 1.7mm
9 Paste version tape thickness 0.38mm
10 The thickness of the substrate 180g-420g
11 Overprint precision ±0.12mm
12 Total Power 30KW
13 Machine dimension 3*2.8*1.7m
14 Machine weight About 3.8 Ton

Feature

1. Adpot ceramic mesh roller to convey ink.
2. The dicharger and feeder are controlled by amanetic power brake and a cluth(chose imported mistubishi autuomatic tension controller).
3. Each printing unit adopts 360-degree registering adjuster.
4. Each printing unit is equipped with an assemble of auto infrared drying installation.
5. The inking roller can depart from the machine and rotate at low speed in order to keep the ink from drying when its stops.
6. The main motor adopts stepless governor converter.
7. It can finish the processing from feeding paper, retifying, sparying codes, drying and winding in on processing, featuring stable paper route. It is achoice equipment for the printing houses to coat self-adhesive trademakes and medical paper.

8. Operator by one person

9. Machine design as CE standard ,Safety use

Detailed Images

Central Drum Flexo Printing Machine , PE Label Flexo Roll Printing MachineCentral Drum Flexo Printing Machine , PE Label Flexo Roll Printing Machine
